Rubber cable

Rubber Flexible Cables

Rubber flexible cables for heavy-duty portable power, outdoor equipment, submersible pumps, welding leads, industrial tools and harsh-use temporary supply routes.

Rubber Flexible Cables
Cable construction Rubber Flexible Cables Technical reference for cable construction, sheath finish, screening and cross-section review.
Applications6Portable equipment, Outdoor power, Industrial tools, Temporary power
Standards5EN 50525-2-21, IEC 60245, IEC 60332-1, VDE 0250, EN 50525-2-81
Cable Types8Cable construction pages with exact specification sheets
Specifications224Individual cable specification sheets

Application And Motion Duty

Rubber flexible cables for heavy-duty portable power, outdoor equipment, submersible pumps, welding leads, industrial tools and harsh-use temporary supply routes.

  • Portable equipment
  • Outdoor power
  • Industrial tools
  • Temporary power
  • Submersible pumps
  • Welding leads

Flexible Cable Construction

  • Class 5 flexible copper conductor
  • EPR or rubber insulation
  • PCP, CPE, PUR or halogen-free rubber outer sheath

Standards And Approvals

  • EN 50525-2-21
  • IEC 60245
  • IEC 60332-1
  • VDE 0250
  • EN 50525-2-81

Product Selection Data

Voltage rating300/500 V, 450/750 V or 0.6/1 kV
ConductorClass 5 flexible copper conductor, extra-flexible copper for welding leads
Core designSingle-core, 2 core, 3G, 4G and 5G rubber flexible cable references
InsulationEPR, rubber, cross-linked halogen-free rubber or welding-grade rubber insulation
SheathPCP, CPE, PUR, water-resistant rubber, welding rubber or halogen-free rubber sheath
EnvironmentOutdoor, oil, abrasion, moisture, weather, AD8 wet-route and workshop exposure
Technical dataCore design, conductor size, DC resistance, OD guide, cable weight and bend radius by exact reference

Find The Exact Cable Size

Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.

Flex, Motion And Sheath Cable Types

Flexible cable selection should compare voltage, bending radius, temperature range, sheath compound, oil resistance and movement duty.

Heavy-duty rubber flexible cable

H07RN-F Heavy Duty Rubber Flexible Cable

H07RN-F Heavy Duty Rubber Flexible Cable is a rubber flexible cable construction for mobile power supplies, worksites, stage and audio visual equipment, using class 5 flexible copper conductor, epr rubber insulation and pcp polychloroprene outer sheath.

  • H07RN-F
  • EN 50525-2-21
  • 450/750 V
  • -25 °C to +60 °C mobile service / higher fixed protected service by application
View technical data →
Light-duty rubber flexible cable

H05RN-F Light Duty Rubber Flexible Cable

H05RN-F Light Duty Rubber Flexible Cable is a rubber flexible cable construction for portable appliances, light tools, temporary leads, using class 5 flexible copper conductor, epr rubber insulation and pcp or rubber flexible sheath.

  • H05RN-F
  • EN 50525-2-21
  • 300/500 V
  • -25 °C to +60 °C flexible service guide
View technical data →
Water-resistant rubber flexible cable

H07RN-8-F Water Resistant Submersible Rubber Cable

H07RN-8-F Water Resistant Submersible Rubber Cable is a rubber flexible cable construction for submersible pumps, drainage systems, water treatment, using class 5 flexible copper conductor, epr water-resistant rubber insulation and water-resistant pcp rubber sheath.

  • H07RN-8-F
  • EN 50525-2-21
  • 450/750 V
  • Wet-route flexible service selected by pump duty
View technical data →

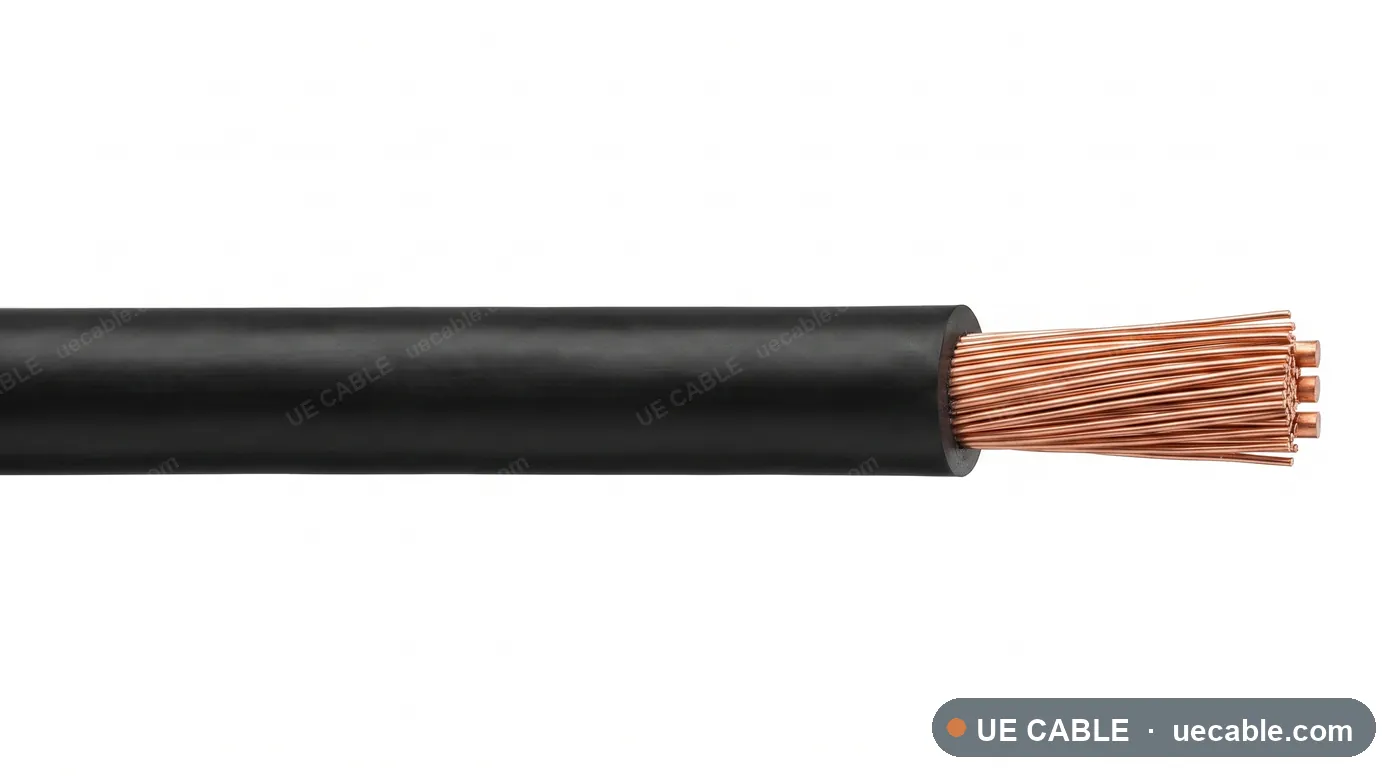

H01N2-D Rubber Welding Cable Extra-flexible rubber welding cable

H01N2-D Rubber Welding Cable

H01N2-D Rubber Welding Cable is a rubber flexible cable construction for welding leads, electrode holders, shipyards, using class 5 flexible copper conductor, epr or rubber welding insulation and oil and abrasion resistant rubber welding sheath.

  • H01N2-D
  • EN 50525-2-81
  • 100/100 V welding lead
  • Flexible welding lead service by duty cycle
View technical data →
Heat-resistant rubber flexible cable

H07BN4-F Heat Resistant Rubber Flexible Cable

H07BN4-F Heat Resistant Rubber Flexible Cable is a rubber flexible cable construction for hot industrial areas, mobile machinery, outdoor tools, using class 5 flexible copper conductor, epr heat-resistant rubber insulation and csp or heat-resistant elastomer sheath.

  • H07BN4-F
  • EN 50525-2-21
  • 450/750 V
  • Higher temperature flexible service by compound selection
View technical data →
Halogen-free rubber flexible cable

H07ZZ-F Halogen Free Rubber Flexible Cable

H07ZZ-F Halogen Free Rubber Flexible Cable is a rubber flexible cable construction for public buildings, events, transport facilities, using class 5 flexible copper conductor, cross-linked halogen-free rubber insulation and cross-linked halogen-free rubber sheath.

  • H07ZZ-F
  • EN 50525-3-21
  • 450/750 V
  • Flexible LSZH rubber service by installation duty
View technical data →
Heavy-duty 0.6/1 kV rubber cable

NSHOU Heavy Duty Rubber Flexible Cable

NSHOU Heavy Duty Rubber Flexible Cable is a rubber flexible cable construction for industrial mobile power, heavy equipment, pumps, using class 5 flexible copper conductor, epr heavy-duty rubber insulation and cpe or reinforced heavy-duty rubber sheath.

  • NSHOU
  • VDE 0250
  • 0.6/1 kV
  • Heavy-duty flexible service selected by route and load
View technical data →
PUR-sheathed flexible rubber cable

H05BQ-F PUR Flexible Rubber Cable

H05BQ-F PUR Flexible Rubber Cable is a rubber flexible cable construction for hand tools, workshop equipment, machine service leads, using class 5 flexible copper conductor, epr rubber insulation and pur abrasion resistant outer sheath.

  • H05BQ-F
  • EN 50525-2-21
  • 300/500 V
  • Flexible equipment service by PUR compound
View technical data →

Available Options

  • H07RN-F cable
  • H05RN-F cable
  • H07RN-8-F water-resistant cable
  • H01N2-D welding cable
  • H07BN4-F heat-resistant rubber cable
  • H07ZZ-F halogen-free rubber cable
  • NSHOU heavy-duty rubber cable
  • H05BQ-F PUR flexible cable

FAQ

Rubber Flexible Cables — common questions

What are rubber flexible cables?

Rubber flexible cables for heavy-duty portable power, outdoor equipment, submersible pumps, welding leads, industrial tools and harsh-use temporary supply routes. They are built to EN 50525-2-21, IEC 60245, IEC 60332-1, VDE 0250, EN 50525-2-81.

Which standards do rubber flexible cables comply with?

UE Cable rubber flexible cables are manufactured and tested to EN 50525-2-21, IEC 60245, IEC 60332-1, VDE 0250, EN 50525-2-81. The exact standard for each construction is stated on its specification sheet.

What sizes and configurations are available?

8 construction families are catalogued under rubber flexible cables, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.

Can rubber flexible cables be custom-made, and how fast is a quote?

Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
