Halogen-free rubber flexible cable

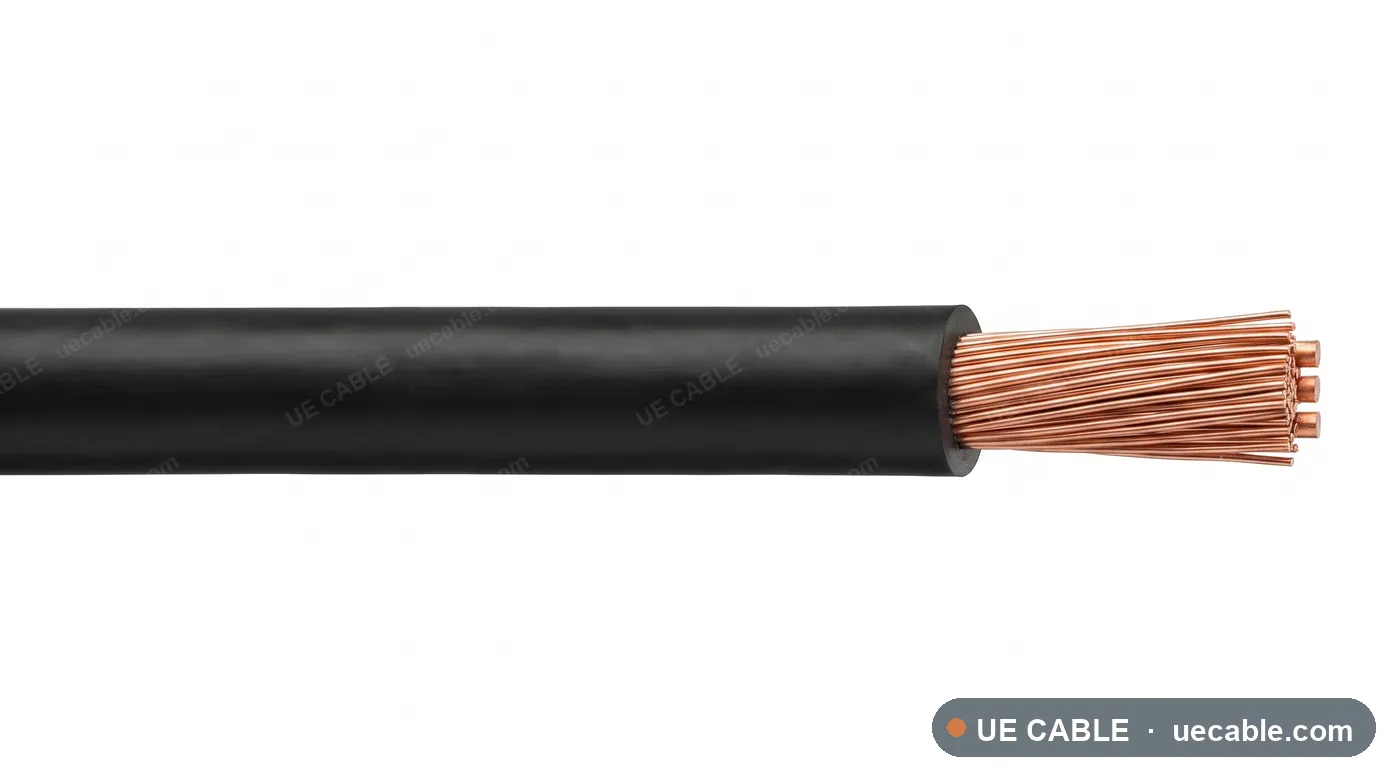

H07ZZ-F Halogen Free Rubber Flexible Cable is a rubber flexible cable construction for public buildings, events, transport facilities, using class 5 flexible copper conductor, cross-linked halogen-free rubber insulation and cross-linked halogen-free rubber sheath.
Cable Type Data
H07ZZ-F Halogen Free Rubber Flexible Cable is a rubber flexible cable construction for public buildings, events, transport facilities, using class 5 flexible copper conductor, cross-linked halogen-free rubber insulation and cross-linked halogen-free rubber sheath.
Specifications
Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact rubber flexible cable cable specification sheet. Shared voltage, compound system, environment rating and sheath data are listed above.
| Cable reference | Core design | Conductor size | Max DC resistance at 20 °C | OD guide | Cable weight |
|---|---|---|---|---|---|
| H07ZZ-F 450/750 V 1 core 1.5 mm² | 1 core | 1.5 mm² | 12.7 Ω/km | 11.9 mm | 0.21 kg/m |
| H07ZZ-F 450/750 V 1 core 2.5 mm² | 1 core | 2.5 mm² | 7.6 Ω/km | 12.7 mm | 0.22 kg/m |
| H07ZZ-F 450/750 V 1 core 4 mm² | 1 core | 4 mm² | 4.7 Ω/km | 13.5 mm | 0.24 kg/m |
| H07ZZ-F 450/750 V 1 core 6 mm² | 1 core | 6 mm² | 3.1 Ω/km | 14.4 mm | 0.27 kg/m |
| H07ZZ-F 450/750 V 1 core 10 mm² | 1 core | 10 mm² | 1.83 Ω/km | 15.8 mm | 0.32 kg/m |
| H07ZZ-F 450/750 V 1 core 16 mm² | 1 core | 16 mm² | 1.15 Ω/km | 17.5 mm | 0.40 kg/m |
| H07ZZ-F 450/750 V 1 core 25 mm² | 1 core | 25 mm² | 0.727 Ω/km | 19.5 mm | 0.52 kg/m |
| H07ZZ-F 450/750 V 1 core 35 mm² | 1 core | 35 mm² | 0.524 Ω/km | 21.3 mm | 0.65 kg/m |
| H07ZZ-F 450/750 V 3G 1.5 mm² | 3G | 1.5 mm² | 12.7 Ω/km | 14.9 mm | 0.25 kg/m |
| H07ZZ-F 450/750 V 3G 2.5 mm² | 3G | 2.5 mm² | 7.6 Ω/km | 15.6 mm | 0.29 kg/m |
| H07ZZ-F 450/750 V 3G 4 mm² | 3G | 4 mm² | 4.7 Ω/km | 16.5 mm | 0.35 kg/m |
| H07ZZ-F 450/750 V 3G 6 mm² | 3G | 6 mm² | 3.1 Ω/km | 17.4 mm | 0.42 kg/m |
| H07ZZ-F 450/750 V 3G 10 mm² | 3G | 10 mm² | 1.83 Ω/km | 18.8 mm | 0.58 kg/m |
| H07ZZ-F 450/750 V 3G 16 mm² | 3G | 16 mm² | 1.15 Ω/km | 20.5 mm | 0.81 kg/m |
| H07ZZ-F 450/750 V 3G 25 mm² | 3G | 25 mm² | 0.727 Ω/km | 22.5 mm | 1.17 kg/m |
| H07ZZ-F 450/750 V 3G 35 mm² | 3G | 35 mm² | 0.524 Ω/km | 24.3 mm | 1.55 kg/m |
| H07ZZ-F 450/750 V 5G 1.5 mm² | 5G | 1.5 mm² | 12.7 Ω/km | 16.1 mm | 0.29 kg/m |
| H07ZZ-F 450/750 V 5G 2.5 mm² | 5G | 2.5 mm² | 7.6 Ω/km | 16.8 mm | 0.35 kg/m |
| H07ZZ-F 450/750 V 5G 4 mm² | 5G | 4 mm² | 4.7 Ω/km | 17.7 mm | 0.45 kg/m |
| H07ZZ-F 450/750 V 5G 6 mm² | 5G | 6 mm² | 3.1 Ω/km | 18.6 mm | 0.58 kg/m |
| H07ZZ-F 450/750 V 5G 10 mm² | 5G | 10 mm² | 1.83 Ω/km | 20.0 mm | 0.84 kg/m |
| H07ZZ-F 450/750 V 5G 16 mm² | 5G | 16 mm² | 1.15 Ω/km | 21.7 mm | 1.23 kg/m |
| H07ZZ-F 450/750 V 5G 25 mm² | 5G | 25 mm² | 0.727 Ω/km | 23.7 mm | 1.81 kg/m |
| H07ZZ-F 450/750 V 5G 35 mm² | 5G | 35 mm² | 0.524 Ω/km | 25.5 mm | 2.46 kg/m |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
