Application And Operating Environment
Mining cables for surface and underground mining, tunnelling, trailing, reeling and heavy-duty power supply.
- Underground mining
- Tunnelling
- Trailing equipment
- Reeling systems
Mining and tunnelling
Mining Cables
Mining cables for surface and underground mining, tunnelling, trailing, reeling and heavy-duty power supply.
Cable construction
Mining Cables
Technical reference for cable construction, sheath finish, screening and cross-section review.
Cable Construction
- Flexible copper conductor
- EPR insulation
- Earth cores or pilot cores
- Reinforced rubber sheath
Standards And Application References
- AS/NZS 1802
- AS/NZS 2802
- ICEA
- Customer-specified mining standards
Product Selection Data
| Voltage rating | Low voltage, medium voltage and customer-specified mining ratings |
|---|---|
| Conductor | Flexible copper conductor for trailing and reeling duty |
| Insulation | EPR or mining-grade elastomeric insulation |
| Sheath | Reinforced rubber, CPE or heavy-duty mining compound |
| Core design | Power cores with earth, pilot or monitoring cores |
| Duty type | Trailing, reeling, shuttle car, drill, pump or feeder cable |
| Mechanical performance | Abrasion, crush, tear and impact resistance |
| Safety features | Earth continuity, pilot cores and flame retardant options |
Find The Exact Cable Size
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
Environment And Cable Construction Types
Cable selection should compare standard, construction, fire performance, sheath compound, mechanical protection and site conditions.
AS/NZS 1802 Type 241 Mining Cable
AS/NZS 1802 Type 241 Mining Cable is a specific mining cable construction for continuous miners, pump feeders, monorail supply applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and heavy-duty pcp or cpe mining sheath.
View technical data →AS/NZS 1802 Type 245 Longwall Mining Cable
AS/NZS 1802 Type 245 Longwall Mining Cable is a specific mining cable construction for longwall shearers, continuous miners, longwall peripheral equipment applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and heavy-duty reinforced mining sheath.
View technical data →AS/NZS 1802 Type 209 Trailing Cable
AS/NZS 1802 Type 209 Trailing Cable is a specific mining cable construction for trailing machinery, drills, hand-held tools applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and heavy-duty trailing cable sheath.
View technical data →
High-speed reeling mining cable

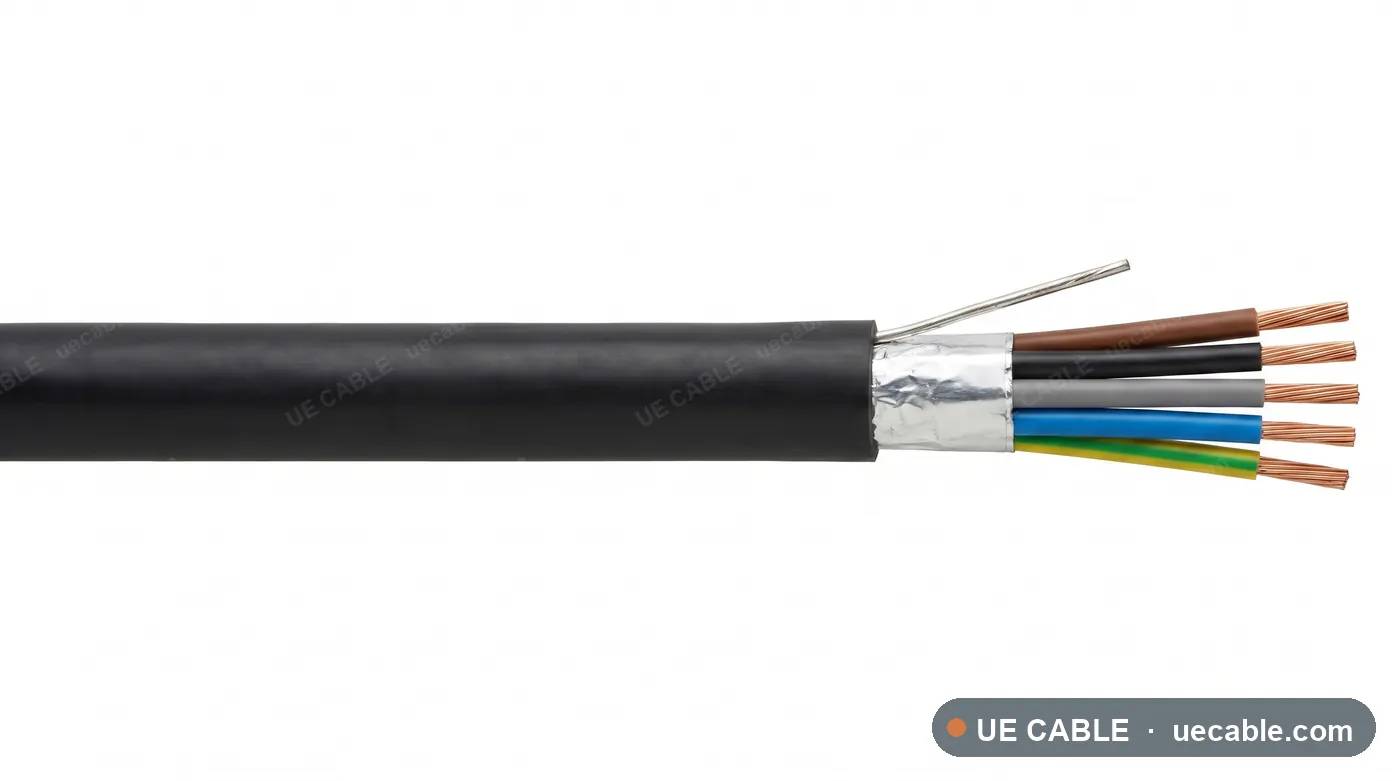

AS/NZS 1802 Shuttle Car Cable
AS/NZS 1802 Shuttle Car Cable is a specific mining cable construction for shuttle cars, high-speed reeling equipment, underground coal mining applications, using flexible tinned copper conductor, epr insulation, semiconductive screen and reinforcement system and heavy-duty abrasion resistant mining sheath.
View technical data →Mining Pump Cable
Mining Pump Cable is a specific mining cable construction for mine pumps, dewatering systems, pump feeders applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and water and abrasion resistant mining sheath.
View technical data →Medium Voltage Mining Feeder Cable
Medium Voltage Mining Feeder Cable is a specific mining cable construction for mine power distribution, continuous miners, longwall supply applications, using flexible tinned copper conductor, epr insulation, semiconductive and metallic screen system and heavy-duty mining sheath.
View technical data →NSHOU Flexible Mining Cable
NSHOU Flexible Mining Cable is a specific mining cable construction for mining equipment, tunnelling equipment, portable power applications, using flexible copper conductor, rubber compound insulation, optional monitoring or screen arrangement and heavy-duty rubber sheath.
View technical data →NTSCGEWOU Mining And Tunnelling Cable
NTSCGEWOU Mining And Tunnelling Cable is a specific mining cable construction for tunnel boring equipment, mining drives, heavy mobile equipment applications, using flexible copper conductor, rubber compound insulation, screened power core and monitoring arrangement and oil, abrasion and flame resistant rubber sheath.
View technical data →Common References
Available Options
- Mining trailing cable
- Mining reeling cable
- Shuttle car cable
- Drill cable
- Mining pump cable
- Pilot core mining cable
FAQ
Mining Cables — common questions
What are mining cables?
Mining cables for surface and underground mining, tunnelling, trailing, reeling and heavy-duty power supply. They are built to AS/NZS 1802, AS/NZS 2802, ICEA, Customer-specified mining standards.
Which standards do mining cables comply with?
UE Cable mining cables are manufactured and tested to AS/NZS 1802, AS/NZS 2802, ICEA, Customer-specified mining standards. The exact standard for each construction is stated on its specification sheet.
What sizes and configurations are available?
8 construction families are catalogued under mining cables, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Can mining cables be custom-made, and how fast is a quote?
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
