Water-resistant rubber flexible cable

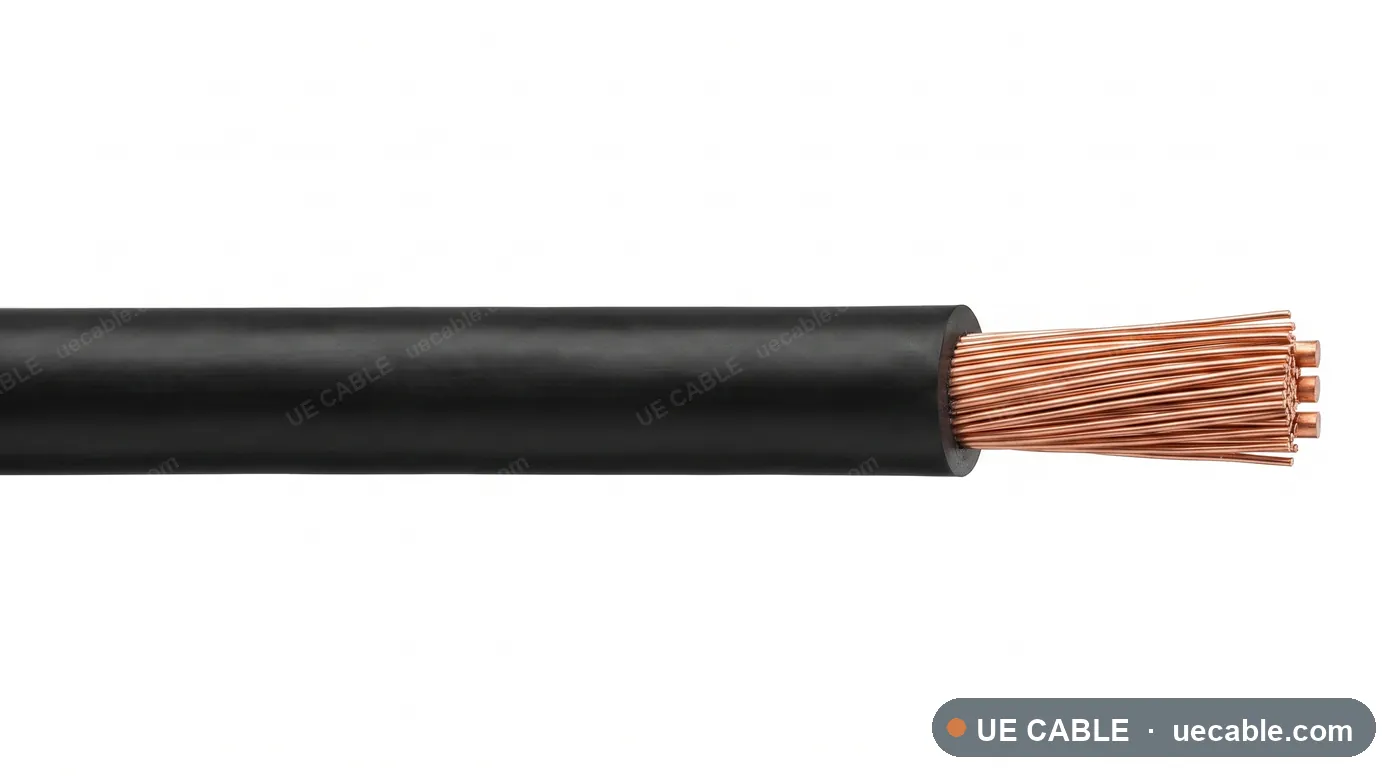

H07RN-8-F Water Resistant Submersible Rubber Cable is a rubber flexible cable construction for submersible pumps, drainage systems, water treatment, using class 5 flexible copper conductor, epr water-resistant rubber insulation and water-resistant pcp rubber sheath.
Cable Type Data
H07RN-8-F Water Resistant Submersible Rubber Cable is a rubber flexible cable construction for submersible pumps, drainage systems, water treatment, using class 5 flexible copper conductor, epr water-resistant rubber insulation and water-resistant pcp rubber sheath.
Specifications
Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact rubber flexible cable cable specification sheet. Shared voltage, compound system, environment rating and sheath data are listed above.
| Cable reference | Core design | Conductor size | Max DC resistance at 20 °C | OD guide | Cable weight |
|---|---|---|---|---|---|
| H07RN-8-F 450/750 V 3G 1.5 mm² | 3G | 1.5 mm² | 12.7 Ω/km | 16.3 mm | 0.36 kg/m |
| H07RN-8-F 450/750 V 3G 2.5 mm² | 3G | 2.5 mm² | 7.6 Ω/km | 17.0 mm | 0.40 kg/m |
| H07RN-8-F 450/750 V 3G 4 mm² | 3G | 4 mm² | 4.7 Ω/km | 17.9 mm | 0.46 kg/m |
| H07RN-8-F 450/750 V 3G 6 mm² | 3G | 6 mm² | 3.1 Ω/km | 18.8 mm | 0.53 kg/m |
| H07RN-8-F 450/750 V 3G 10 mm² | 3G | 10 mm² | 1.83 Ω/km | 20.2 mm | 0.69 kg/m |
| H07RN-8-F 450/750 V 3G 16 mm² | 3G | 16 mm² | 1.15 Ω/km | 21.9 mm | 0.92 kg/m |
| H07RN-8-F 450/750 V 3G 25 mm² | 3G | 25 mm² | 0.727 Ω/km | 23.9 mm | 1.28 kg/m |
| H07RN-8-F 450/750 V 3G 35 mm² | 3G | 35 mm² | 0.524 Ω/km | 25.7 mm | 1.67 kg/m |
| H07RN-8-F 450/750 V 4G 1.5 mm² | 4G | 1.5 mm² | 12.7 Ω/km | 16.9 mm | 0.38 kg/m |
| H07RN-8-F 450/750 V 4G 2.5 mm² | 4G | 2.5 mm² | 7.6 Ω/km | 17.7 mm | 0.43 kg/m |
| H07RN-8-F 450/750 V 4G 4 mm² | 4G | 4 mm² | 4.7 Ω/km | 18.5 mm | 0.51 kg/m |
| H07RN-8-F 450/750 V 4G 6 mm² | 4G | 6 mm² | 3.1 Ω/km | 19.4 mm | 0.61 kg/m |
| H07RN-8-F 450/750 V 4G 10 mm² | 4G | 10 mm² | 1.83 Ω/km | 20.8 mm | 0.82 kg/m |
| H07RN-8-F 450/750 V 4G 16 mm² | 4G | 16 mm² | 1.15 Ω/km | 22.5 mm | 1.13 kg/m |
| H07RN-8-F 450/750 V 4G 25 mm² | 4G | 25 mm² | 0.727 Ω/km | 24.5 mm | 1.60 kg/m |
| H07RN-8-F 450/750 V 4G 35 mm² | 4G | 35 mm² | 0.524 Ω/km | 26.3 mm | 2.12 kg/m |
| H07RN-8-F 450/750 V 5G 1.5 mm² | 5G | 1.5 mm² | 12.7 Ω/km | 17.5 mm | 0.40 kg/m |
| H07RN-8-F 450/750 V 5G 2.5 mm² | 5G | 2.5 mm² | 7.6 Ω/km | 18.2 mm | 0.46 kg/m |
| H07RN-8-F 450/750 V 5G 4 mm² | 5G | 4 mm² | 4.7 Ω/km | 19.1 mm | 0.56 kg/m |
| H07RN-8-F 450/750 V 5G 6 mm² | 5G | 6 mm² | 3.1 Ω/km | 20.0 mm | 0.69 kg/m |
| H07RN-8-F 450/750 V 5G 10 mm² | 5G | 10 mm² | 1.83 Ω/km | 21.4 mm | 0.95 kg/m |
| H07RN-8-F 450/750 V 5G 16 mm² | 5G | 16 mm² | 1.15 Ω/km | 23.1 mm | 1.34 kg/m |
| H07RN-8-F 450/750 V 5G 25 mm² | 5G | 25 mm² | 0.727 Ω/km | 25.1 mm | 1.93 kg/m |
| H07RN-8-F 450/750 V 5G 35 mm² | 5G | 35 mm² | 0.524 Ω/km | 26.9 mm | 2.58 kg/m |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
