PUR-sheathed flexible rubber cable

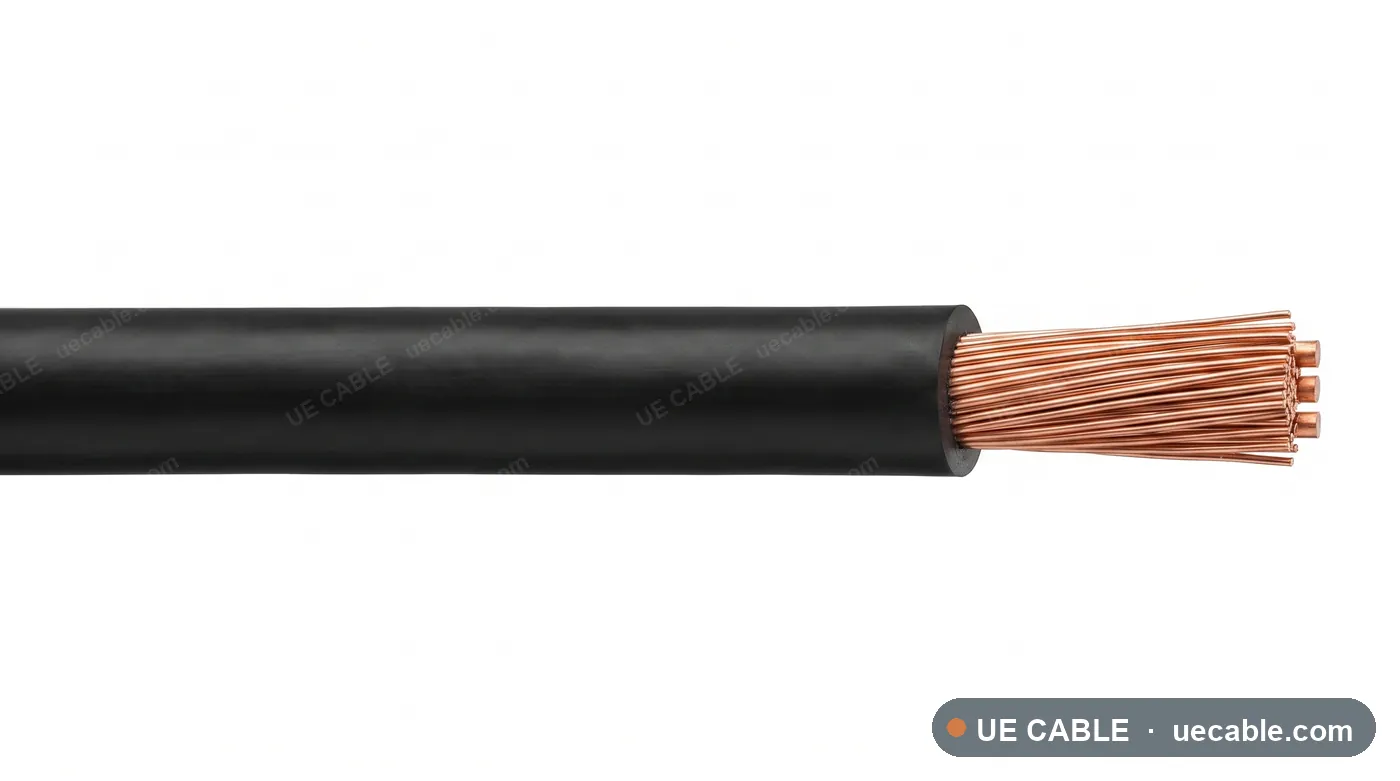

H05BQ-F PUR Flexible Rubber Cable is a rubber flexible cable construction for hand tools, workshop equipment, machine service leads, using class 5 flexible copper conductor, epr rubber insulation and pur abrasion resistant outer sheath.
Cable Type Data
H05BQ-F PUR Flexible Rubber Cable is a rubber flexible cable construction for hand tools, workshop equipment, machine service leads, using class 5 flexible copper conductor, epr rubber insulation and pur abrasion resistant outer sheath.
Specifications
Each row below is a complete specification sheet — 16 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact rubber flexible cable cable specification sheet. Shared voltage, compound system, environment rating and sheath data are listed above.
| Cable reference | Core design | Conductor size | Max DC resistance at 20 °C | OD guide | Cable weight |
|---|---|---|---|---|---|
| H05BQ-F 300/500 V 2 core 0.75 mm² | 2 core | 0.75 mm² | 24.7 Ω/km | 11.0 mm | 0.14 kg/m |
| H05BQ-F 300/500 V 2 core 1.0 mm² | 2 core | 1.0 mm² | 18.5 Ω/km | 11.3 mm | 0.15 kg/m |
| H05BQ-F 300/500 V 2 core 1.5 mm² | 2 core | 1.5 mm² | 12.7 Ω/km | 11.7 mm | 0.16 kg/m |
| H05BQ-F 300/500 V 2 core 2.5 mm² | 2 core | 2.5 mm² | 7.6 Ω/km | 12.5 mm | 0.19 kg/m |
| H05BQ-F 300/500 V 3G 0.75 mm² | 3G | 0.75 mm² | 24.7 Ω/km | 11.8 mm | 0.15 kg/m |
| H05BQ-F 300/500 V 3G 1.0 mm² | 3G | 1.0 mm² | 18.5 Ω/km | 12.1 mm | 0.16 kg/m |
| H05BQ-F 300/500 V 3G 1.5 mm² | 3G | 1.5 mm² | 12.7 Ω/km | 12.5 mm | 0.18 kg/m |
| H05BQ-F 300/500 V 3G 2.5 mm² | 3G | 2.5 mm² | 7.6 Ω/km | 13.2 mm | 0.22 kg/m |
| H05BQ-F 300/500 V 4G 0.75 mm² | 4G | 0.75 mm² | 24.7 Ω/km | 12.4 mm | 0.16 kg/m |
| H05BQ-F 300/500 V 4G 1.0 mm² | 4G | 1.0 mm² | 18.5 Ω/km | 12.7 mm | 0.17 kg/m |
| H05BQ-F 300/500 V 4G 1.5 mm² | 4G | 1.5 mm² | 12.7 Ω/km | 13.1 mm | 0.20 kg/m |
| H05BQ-F 300/500 V 4G 2.5 mm² | 4G | 2.5 mm² | 7.6 Ω/km | 13.9 mm | 0.25 kg/m |
| H05BQ-F 300/500 V 5G 0.75 mm² | 5G | 0.75 mm² | 24.7 Ω/km | 13.0 mm | 0.17 kg/m |
| H05BQ-F 300/500 V 5G 1.0 mm² | 5G | 1.0 mm² | 18.5 Ω/km | 13.3 mm | 0.19 kg/m |
| H05BQ-F 300/500 V 5G 1.5 mm² | 5G | 1.5 mm² | 12.7 Ω/km | 13.7 mm | 0.22 kg/m |
| H05BQ-F 300/500 V 5G 2.5 mm² | 5G | 2.5 mm² | 7.6 Ω/km | 14.4 mm | 0.28 kg/m |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
