Heavy-duty rubber flexible cable

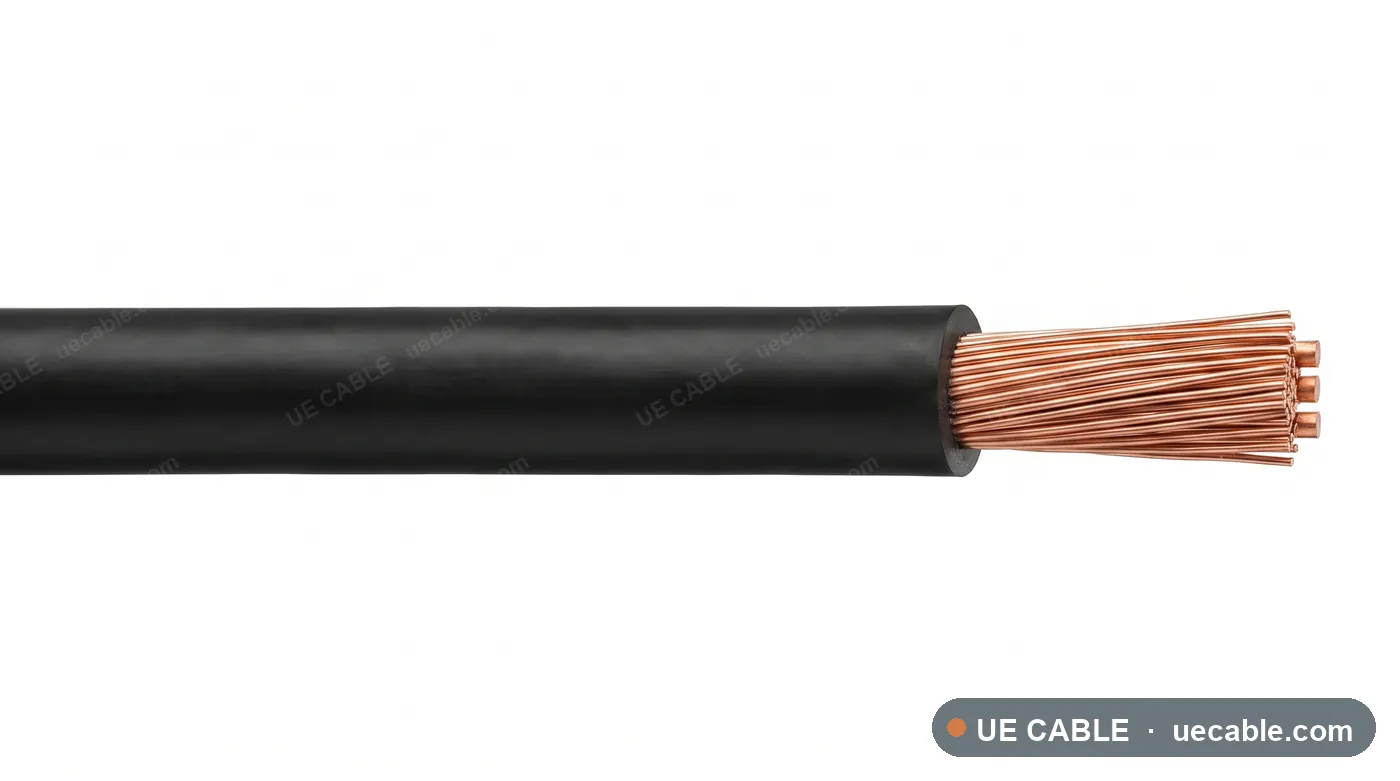

H07RN-F Heavy Duty Rubber Flexible Cable is a rubber flexible cable construction for mobile power supplies, worksites, stage and audio visual equipment, using class 5 flexible copper conductor, epr rubber insulation and pcp polychloroprene outer sheath.
Cable Type Data
H07RN-F Heavy Duty Rubber Flexible Cable is a rubber flexible cable construction for mobile power supplies, worksites, stage and audio visual equipment, using class 5 flexible copper conductor, epr rubber insulation and pcp polychloroprene outer sheath.
Specifications
Each row below is a complete specification sheet — 57 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact rubber flexible cable cable specification sheet. Shared voltage, compound system, environment rating and sheath data are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide | Cable weight |
|---|---|---|---|---|
| H07RN-F 450/750 V 1 core 1.5 mm² | 1.5 mm² | 12.7 Ω/km | 11.9 mm | 0.25 kg/m |
| H07RN-F 450/750 V 1 core 2.5 mm² | 2.5 mm² | 7.6 Ω/km | 12.7 mm | 0.26 kg/m |
| H07RN-F 450/750 V 1 core 4 mm² | 4 mm² | 4.7 Ω/km | 13.5 mm | 0.28 kg/m |
| H07RN-F 450/750 V 1 core 6 mm² | 6 mm² | 3.1 Ω/km | 14.4 mm | 0.31 kg/m |
| H07RN-F 450/750 V 1 core 10 mm² | 10 mm² | 1.83 Ω/km | 15.8 mm | 0.36 kg/m |
| H07RN-F 450/750 V 1 core 16 mm² | 16 mm² | 1.15 Ω/km | 17.5 mm | 0.44 kg/m |
| H07RN-F 450/750 V 1 core 25 mm² | 25 mm² | 0.727 Ω/km | 19.5 mm | 0.55 kg/m |
| H07RN-F 450/750 V 1 core 35 mm² | 35 mm² | 0.524 Ω/km | 21.3 mm | 0.68 kg/m |
| H07RN-F 450/750 V 1 core 50 mm² | 50 mm² | 0.387 Ω/km | 23.6 mm | 0.88 kg/m |
| H07RN-F 450/750 V 1 core 70 mm² | 70 mm² | 0.268 Ω/km | 26.2 mm | 1.14 kg/m |
| H07RN-F 450/750 V 1 core 95 mm² | 95 mm² | 0.193 Ω/km | 29.0 mm | 1.46 kg/m |
| H07RN-F 450/750 V 1 core 120 mm² | 120 mm² | 0.153 Ω/km | 31.4 mm | 1.79 kg/m |
| H07RN-F 450/750 V 1 core 150 mm² | 150 mm² | 0.123 Ω/km | 34.0 mm | 2.18 kg/m |
Each row is an exact rubber flexible cable cable specification sheet. Shared voltage, compound system, environment rating and sheath data are listed above.
| Cable reference | Core design | Conductor size | Max DC resistance at 20 °C | OD guide | Cable weight |
|---|---|---|---|---|---|
| H07RN-F 450/750 V 2 core 1.5 mm² | 2 core | 1.5 mm² | 12.7 Ω/km | 14.1 mm | 0.27 kg/m |
| H07RN-F 450/750 V 2 core 2.5 mm² | 2 core | 2.5 mm² | 7.6 Ω/km | 14.9 mm | 0.29 kg/m |
| H07RN-F 450/750 V 2 core 4 mm² | 2 core | 4 mm² | 4.7 Ω/km | 15.7 mm | 0.33 kg/m |
| H07RN-F 450/750 V 2 core 6 mm² | 2 core | 6 mm² | 3.1 Ω/km | 16.6 mm | 0.39 kg/m |
| H07RN-F 450/750 V 2 core 10 mm² | 2 core | 10 mm² | 1.83 Ω/km | 18.0 mm | 0.49 kg/m |
| H07RN-F 450/750 V 2 core 16 mm² | 2 core | 16 mm² | 1.15 Ω/km | 19.7 mm | 0.65 kg/m |
| H07RN-F 450/750 V 2 core 25 mm² | 2 core | 25 mm² | 0.727 Ω/km | 21.7 mm | 0.88 kg/m |
| H07RN-F 450/750 V 2 core 35 mm² | 2 core | 35 mm² | 0.524 Ω/km | 23.5 mm | 1.14 kg/m |
| H07RN-F 450/750 V 2 core 50 mm² | 2 core | 50 mm² | 0.387 Ω/km | 25.8 mm | 1.53 kg/m |
| H07RN-F 450/750 V 2 core 70 mm² | 2 core | 70 mm² | 0.268 Ω/km | 28.4 mm | 2.05 kg/m |
| H07RN-F 450/750 V 2 core 95 mm² | 2 core | 95 mm² | 0.193 Ω/km | 31.2 mm | 2.70 kg/m |
| H07RN-F 450/750 V 3G 1.5 mm² | 3G | 1.5 mm² | 12.7 Ω/km | 14.9 mm | 0.29 kg/m |
| H07RN-F 450/750 V 3G 2.5 mm² | 3G | 2.5 mm² | 7.6 Ω/km | 15.6 mm | 0.33 kg/m |
| H07RN-F 450/750 V 3G 4 mm² | 3G | 4 mm² | 4.7 Ω/km | 16.5 mm | 0.39 kg/m |
| H07RN-F 450/750 V 3G 6 mm² | 3G | 6 mm² | 3.1 Ω/km | 17.4 mm | 0.46 kg/m |
| H07RN-F 450/750 V 3G 10 mm² | 3G | 10 mm² | 1.83 Ω/km | 18.8 mm | 0.62 kg/m |
| H07RN-F 450/750 V 3G 16 mm² | 3G | 16 mm² | 1.15 Ω/km | 20.5 mm | 0.85 kg/m |
| H07RN-F 450/750 V 3G 25 mm² | 3G | 25 mm² | 0.727 Ω/km | 22.5 mm | 1.21 kg/m |
| H07RN-F 450/750 V 3G 35 mm² | 3G | 35 mm² | 0.524 Ω/km | 24.3 mm | 1.59 kg/m |
| H07RN-F 450/750 V 3G 50 mm² | 3G | 50 mm² | 0.387 Ω/km | 26.6 mm | 2.18 kg/m |
| H07RN-F 450/750 V 3G 70 mm² | 3G | 70 mm² | 0.268 Ω/km | 29.2 mm | 2.96 kg/m |
| H07RN-F 450/750 V 3G 95 mm² | 3G | 95 mm² | 0.193 Ω/km | 32.0 mm | 3.93 kg/m |
| H07RN-F 450/750 V 4G 1.5 mm² | 4G | 1.5 mm² | 12.7 Ω/km | 15.5 mm | 0.31 kg/m |
| H07RN-F 450/750 V 4G 2.5 mm² | 4G | 2.5 mm² | 7.6 Ω/km | 16.3 mm | 0.36 kg/m |
| H07RN-F 450/750 V 4G 4 mm² | 4G | 4 mm² | 4.7 Ω/km | 17.1 mm | 0.44 kg/m |
| H07RN-F 450/750 V 4G 6 mm² | 4G | 6 mm² | 3.1 Ω/km | 18.0 mm | 0.54 kg/m |
| H07RN-F 450/750 V 4G 10 mm² | 4G | 10 mm² | 1.83 Ω/km | 19.4 mm | 0.75 kg/m |
| H07RN-F 450/750 V 4G 16 mm² | 4G | 16 mm² | 1.15 Ω/km | 21.1 mm | 1.06 kg/m |
| H07RN-F 450/750 V 4G 25 mm² | 4G | 25 mm² | 0.727 Ω/km | 23.1 mm | 1.53 kg/m |
| H07RN-F 450/750 V 4G 35 mm² | 4G | 35 mm² | 0.524 Ω/km | 24.9 mm | 2.05 kg/m |
| H07RN-F 450/750 V 4G 50 mm² | 4G | 50 mm² | 0.387 Ω/km | 27.2 mm | 2.83 kg/m |
| H07RN-F 450/750 V 4G 70 mm² | 4G | 70 mm² | 0.268 Ω/km | 29.8 mm | 3.87 kg/m |
| H07RN-F 450/750 V 4G 95 mm² | 4G | 95 mm² | 0.193 Ω/km | 32.6 mm | 5.17 kg/m |
| H07RN-F 450/750 V 5G 1.5 mm² | 5G | 1.5 mm² | 12.7 Ω/km | 16.1 mm | 0.33 kg/m |
| H07RN-F 450/750 V 5G 2.5 mm² | 5G | 2.5 mm² | 7.6 Ω/km | 16.8 mm | 0.39 kg/m |
| H07RN-F 450/750 V 5G 4 mm² | 5G | 4 mm² | 4.7 Ω/km | 17.7 mm | 0.49 kg/m |
| H07RN-F 450/750 V 5G 6 mm² | 5G | 6 mm² | 3.1 Ω/km | 18.6 mm | 0.62 kg/m |
| H07RN-F 450/750 V 5G 10 mm² | 5G | 10 mm² | 1.83 Ω/km | 20.0 mm | 0.88 kg/m |
| H07RN-F 450/750 V 5G 16 mm² | 5G | 16 mm² | 1.15 Ω/km | 21.7 mm | 1.27 kg/m |
| H07RN-F 450/750 V 5G 25 mm² | 5G | 25 mm² | 0.727 Ω/km | 23.7 mm | 1.85 kg/m |
| H07RN-F 450/750 V 5G 35 mm² | 5G | 35 mm² | 0.524 Ω/km | 25.5 mm | 2.50 kg/m |
| H07RN-F 450/750 V 5G 50 mm² | 5G | 50 mm² | 0.387 Ω/km | 27.8 mm | 3.48 kg/m |
| H07RN-F 450/750 V 5G 70 mm² | 5G | 70 mm² | 0.268 Ω/km | 30.4 mm | 4.78 kg/m |
| H07RN-F 450/750 V 5G 95 mm² | 5G | 95 mm² | 0.193 Ω/km | 33.2 mm | 6.41 kg/m |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
