Welding lead
Welding cables for arc welding machines, electrode holders, work return leads, robotic welding cells, shipyards, fabrication workshops and high-current flexible connections.
Welding cables for arc welding machines, electrode holders, work return leads, robotic welding cells, shipyards, fabrication workshops and high-current flexible connections.
| Voltage rating | 100/100 V welding lead references, plus 600 V battery and welding lead options |
|---|---|
| Conductor | Class 6 or extra fine flexible copper conductor |
| Insulation | Rubber, EPR or elastomeric welding insulation |
| Sheath | Oil, hot-particle and abrasion resistant rubber or elastomer |
| Flexibility | Standard-flex, extra-flex and robotic high-flex lead options |
| Core design | Single-core welding lead construction |
| Size range | 6 mm² to 240 mm² |
| Key data | Conductor size, max DC resistance at 20 °C, OD guide, cable weight and welding-current guide |
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
Flexible cable selection should compare voltage, bending radius, temperature range, sheath compound, oil resistance and movement duty.
Standard-flex harmonised welding cable
H01N2-D Rubber Arc Welding Cable is a single-core welding cable construction for manual welding, welding machines, electrode holders, using class 6 extra flexible copper conductor, rubber welding insulation and em5 rubber welding sheath.
View technical data →
Extra-flex harmonised welding cable
H01N2-E Extra Flexible Welding Cable is a single-core welding cable construction for robotic welding cells, bench welding, automated welding lines, using class 6 extra fine copper conductor, extra-flex rubber welding insulation and extra-flex em5 rubber welding sheath.
View technical data →
Rubber welding cable reference

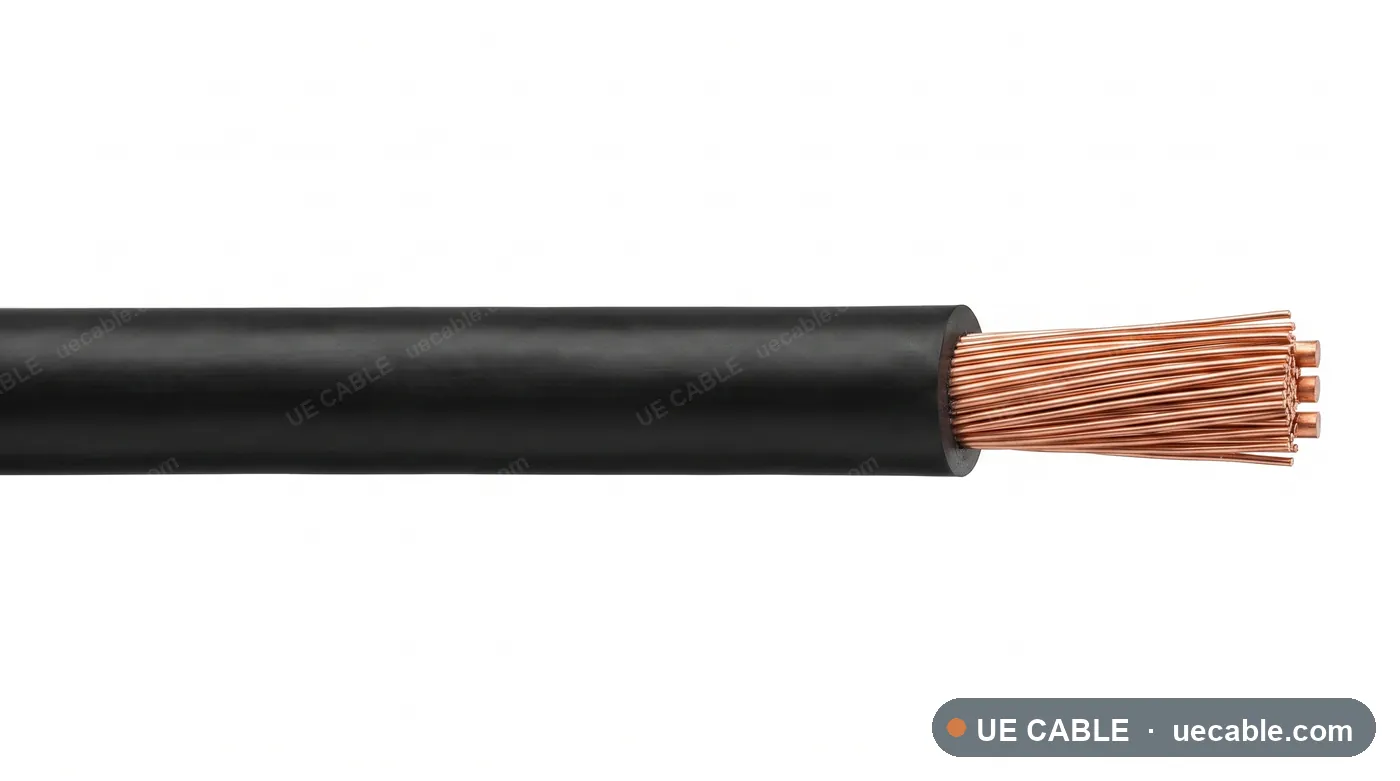

0361TQ Rubber Welding Cable is a single-core welding cable construction for welding generators, shipyards, construction sites, using extra flexible copper welding conductor, rubber welding insulation and heavy-duty rubber welding sheath.
View technical data →
IEC rubber arc welding cable
IEC 60245 Rubber Welding Cable is a single-core welding cable construction for arc welding, production lines, machine tools, using extra flexible copper conductor, rubber arc-welding insulation and rubber arc-welding sheath.
View technical data →
Heavy-duty rubber welding cable
NSLFFOU Heavy Duty Welding Cable is a single-core welding cable construction for shipyards, steel fabrication, heavy equipment repair, using extra flexible copper welding conductor, heavy-duty rubber welding insulation and heavy-duty em5 rubber welding sheath.
View technical data →
Battery and welding lead cable
600 V Battery And Welding Cable is a single-core welding cable construction for battery leads, starter cables, charger leads, using flexible copper battery and welding conductor, epdm or flexible elastomer insulation and oil and abrasion resistant epdm jacket.
View technical data →
Welding return lead
Welding Return Lead Cable is a single-core welding cable construction for welding return leads, work clamp connections, fabrication bays, using extra flexible copper return conductor, rubber return-lead insulation and abrasion resistant rubber return-lead sheath.
View technical data →
Robotic welding lead cable
Robotic Welding Lead Cable is a single-core welding cable construction for robotic welding cells, automated welding machines, automotive assembly lines, using extra fine high-flex copper conductor, high-flex rubber welding insulation and high-flex oil and abrasion resistant rubber sheath.
View technical data →FAQ
Welding cables for arc welding machines, electrode holders, work return leads, robotic welding cells, shipyards, fabrication workshops and high-current flexible connections. They are built to EN 50525-2-81, IEC 60245, IEC 60228, IEC 60332-1.
UE Cable welding cables are manufactured and tested to EN 50525-2-81, IEC 60245, IEC 60228, IEC 60332-1. The exact standard for each construction is stated on its specification sheet.
8 construction families are catalogued under welding cables, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
