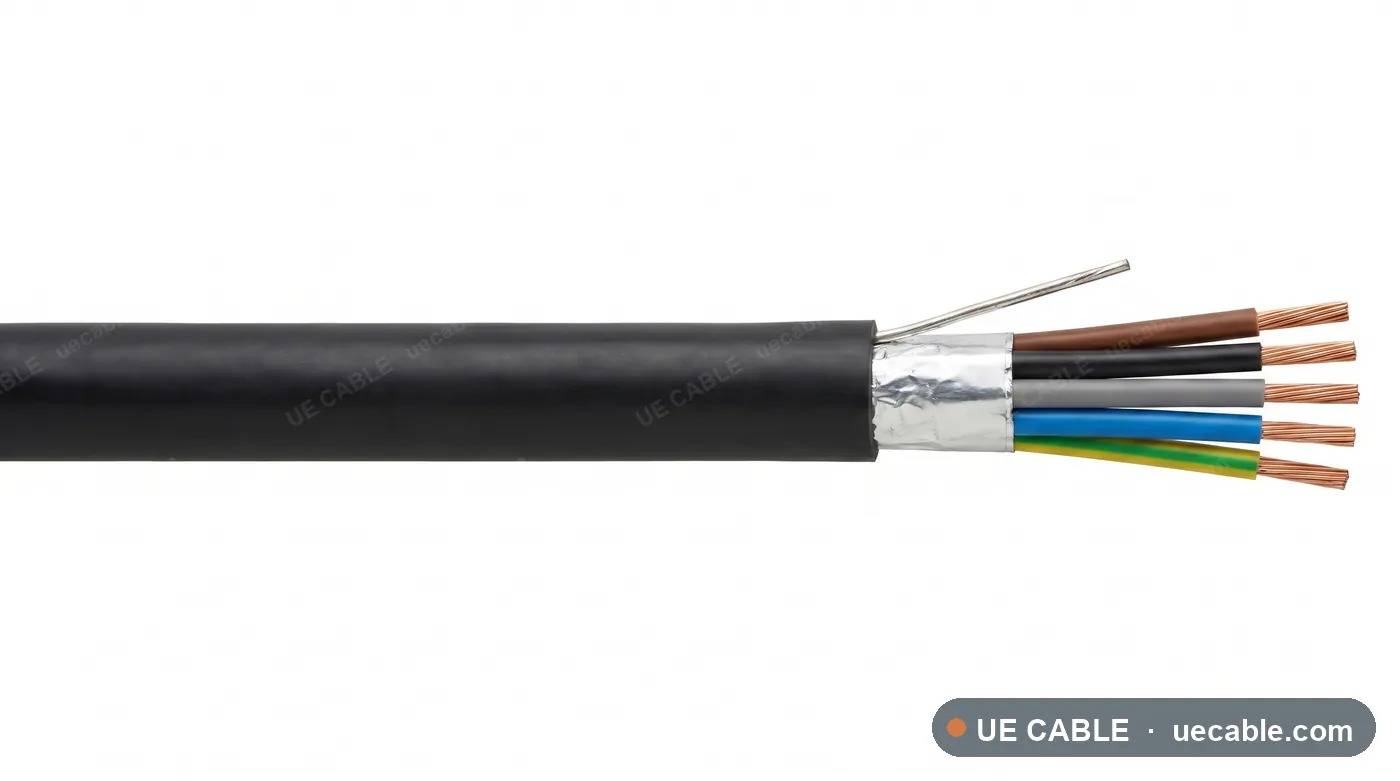

AS/NZS 1802 Type 241 Mining Cable cable construction reference

General purpose mining feeder cable

AS/NZS 1802 Type 241 Mining Cable

AS/NZS 1802 Type 241 Mining Cable is a specific mining cable construction for continuous miners, pump feeders, monorail supply applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and heavy-duty pcp or cpe mining sheath.

Standard
AS/NZS 1802
Voltage class
1.1/1.1 kV to 11/11 kV
Conductor
Flexible tinned copper conductor
Insulation / jacket
Heavy-duty PCP or CPE mining sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

AS/NZS 1802 Type 241 Mining Cable is a specific mining cable construction for continuous miners, pump feeders, monorail supply applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and heavy-duty pcp or cpe mining sheath.

  • Continuous miners
  • Pump feeders
  • Monorail supply
  • Underground power supply

Cable Construction

  • Flexible tinned copper conductor
  • EPR insulation
  • Semiconductive screen system
  • Earth continuity or pilot core arrangement according to equipment
  • Heavy-duty PCP or CPE mining sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

1.1/1.1 kV specification references

Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.

  • Voltage class1.1/1.1 kV
  • Equipment dutyContinuous miner
  • Core / pilot design3 power cores + earth + pilot
Cable referenceConductor sizeMax DC resistance at 20 °COD guide
Type 241 mining cable 1.1/1.1 kV Continuous miner 3 power cores + earth + pilot 16 mm²16 mm²1.21 Ω/km24 mm
Type 241 mining cable 1.1/1.1 kV Continuous miner 3 power cores + earth + pilot 25 mm²25 mm²0.780 Ω/km26 mm
Type 241 mining cable 1.1/1.1 kV Continuous miner 3 power cores + earth + pilot 35 mm²35 mm²0.554 Ω/km28 mm
Type 241 mining cable 1.1/1.1 kV Continuous miner 3 power cores + earth + pilot 50 mm²50 mm²0.386 Ω/km31 mm
Type 241 mining cable 1.1/1.1 kV Continuous miner 3 power cores + earth + pilot 70 mm²70 mm²0.272 Ω/km34 mm
Type 241 mining cable 1.1/1.1 kV Continuous miner 3 power cores + earth + pilot 95 mm²95 mm²0.206 Ω/km37 mm

3.3/3.3 kV specification references

Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.

  • Voltage class3.3/3.3 kV
  • Equipment dutyPump feeder
  • Core / pilot design3 power cores + earth + pilot
Cable referenceConductor sizeMax DC resistance at 20 °COD guide
Type 241 mining cable 3.3/3.3 kV Pump feeder 3 power cores + earth + pilot 25 mm²25 mm²0.780 Ω/km29 mm
Type 241 mining cable 3.3/3.3 kV Pump feeder 3 power cores + earth + pilot 35 mm²35 mm²0.554 Ω/km31 mm
Type 241 mining cable 3.3/3.3 kV Pump feeder 3 power cores + earth + pilot 50 mm²50 mm²0.386 Ω/km34 mm
Type 241 mining cable 3.3/3.3 kV Pump feeder 3 power cores + earth + pilot 70 mm²70 mm²0.272 Ω/km37 mm
Type 241 mining cable 3.3/3.3 kV Pump feeder 3 power cores + earth + pilot 95 mm²95 mm²0.206 Ω/km40 mm
Type 241 mining cable 3.3/3.3 kV Pump feeder 3 power cores + earth + pilot 120 mm²120 mm²0.161 Ω/km43 mm

6.6/6.6 kV specification references

Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.

  • Voltage class6.6/6.6 kV
  • Equipment dutyLongwall supply
  • Core / pilot design3 power cores + earth + pilot
Cable referenceConductor sizeMax DC resistance at 20 °COD guide
Type 241 mining cable 6.6/6.6 kV Longwall supply 3 power cores + earth + pilot 35 mm²35 mm²0.554 Ω/km35 mm
Type 241 mining cable 6.6/6.6 kV Longwall supply 3 power cores + earth + pilot 50 mm²50 mm²0.386 Ω/km38 mm
Type 241 mining cable 6.6/6.6 kV Longwall supply 3 power cores + earth + pilot 70 mm²70 mm²0.272 Ω/km41 mm
Type 241 mining cable 6.6/6.6 kV Longwall supply 3 power cores + earth + pilot 95 mm²95 mm²0.206 Ω/km44 mm
Type 241 mining cable 6.6/6.6 kV Longwall supply 3 power cores + earth + pilot 120 mm²120 mm²0.161 Ω/km47 mm
Type 241 mining cable 6.6/6.6 kV Longwall supply 3 power cores + earth + pilot 150 mm²150 mm²0.129 Ω/km50 mm

11/11 kV specification references

Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.

  • Voltage class11/11 kV
  • Equipment dutyMine feeder
  • Core / pilot design3 power cores + earth + pilot
Cable referenceConductor sizeMax DC resistance at 20 °COD guide
Type 241 mining cable 11/11 kV Mine feeder 3 power cores + earth + pilot 50 mm²50 mm²0.386 Ω/km42 mm
Type 241 mining cable 11/11 kV Mine feeder 3 power cores + earth + pilot 70 mm²70 mm²0.272 Ω/km45 mm
Type 241 mining cable 11/11 kV Mine feeder 3 power cores + earth + pilot 95 mm²95 mm²0.206 Ω/km48 mm
Type 241 mining cable 11/11 kV Mine feeder 3 power cores + earth + pilot 120 mm²120 mm²0.161 Ω/km51 mm
Type 241 mining cable 11/11 kV Mine feeder 3 power cores + earth + pilot 150 mm²150 mm²0.129 Ω/km54 mm
Type 241 mining cable 11/11 kV Mine feeder 3 power cores + earth + pilot 185 mm²185 mm²0.106 Ω/km58 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
