MV cable up to 36 kV
Medium voltage cables for utility networks, industrial distribution, renewable energy connections, substations, mining projects and infrastructure power systems.
Medium voltage cables for utility networks, industrial distribution, renewable energy connections, substations, mining projects and infrastructure power systems.
| Voltage classes | 3.6/6 kV to 19/33 kV and customer-specified |
|---|---|
| Core type | Single core, three core or triplex |
| Screen | Copper wire, copper tape or metallic laminate |
| Water blocking | Optional longitudinal or radial water blocking |
| Insulation | XLPE or EPR, with conductor and insulation screens |
| Armour | AWA for single-core, SWA for multicore or customer-specified armour |
| Sheath | PVC, MDPE, HDPE or LSZH depending on installation |
| Testing | Routine voltage, partial discharge and sheath tests according to specification |
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
Power cable selection depends on voltage class, conductor material, insulation, sheath, armour and installation environment.
Single core MV cable
IEC 60502-2 Single Core XLPE PVC MV Cable is a specific medium-voltage cable construction for utility distribution, substations, industrial feeders applications, using copper or aluminium conductor, xlpe insulation, copper wire or copper tape screen, non-magnetic protection where required and pvc outer sheath.
View technical data →IEC 60502-2 Three Core XLPE SWA PVC MV Cable is a specific medium-voltage cable construction for utility feeders, industrial distribution, direct burial applications, using copper or aluminium conductor, xlpe insulation, copper tape or copper wire screen, steel wire armour for three-core cable and pvc outer sheath.
View technical data →
British standard PVC MV cable

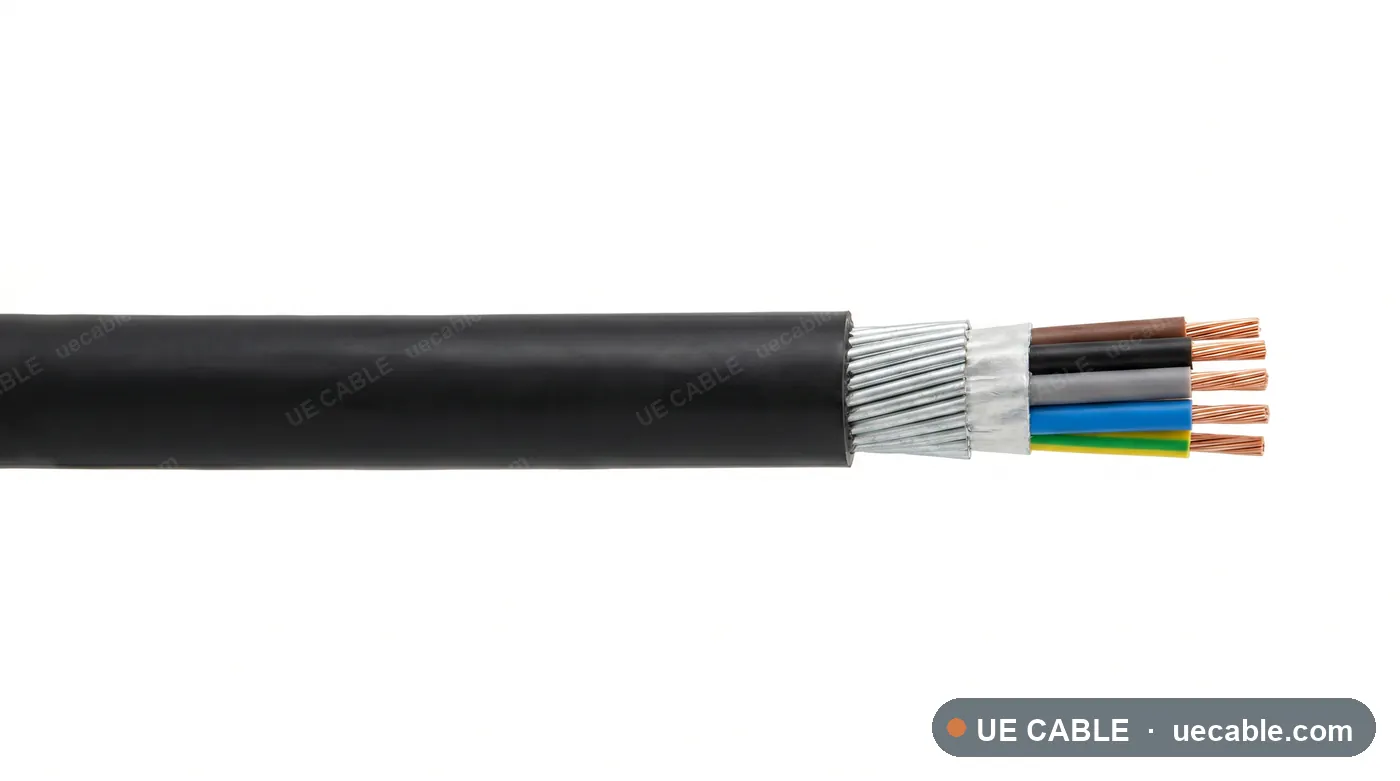

BS 6622 XLPE AWA SWA PVC MV Cable is a specific medium-voltage cable construction for uk-style mv distribution, substations, industrial feeders applications, using copper or aluminium conductor, xlpe insulation, copper tape or copper wire screen, awa for single core, swa for three core and pvc outer sheath.
View technical data →
British standard low smoke MV cable
BS 7835 XLPE AWA SWA LSZH MV Cable is a specific medium-voltage cable construction for transport infrastructure, public buildings, data centers applications, using copper or aluminium conductor, xlpe insulation, copper tape or copper wire screen, awa for single core, swa for three core and lszh outer sheath.
View technical data →
European copper MV cable
N2XSY Copper XLPE PVC MV Cable is a specific medium-voltage cable construction for distribution networks, transformer stations, switching blocks applications, using copper conductor, xlpe insulation, copper wire screen with copper tape binder and pvc outer sheath.
View technical data →
European aluminium MV cable

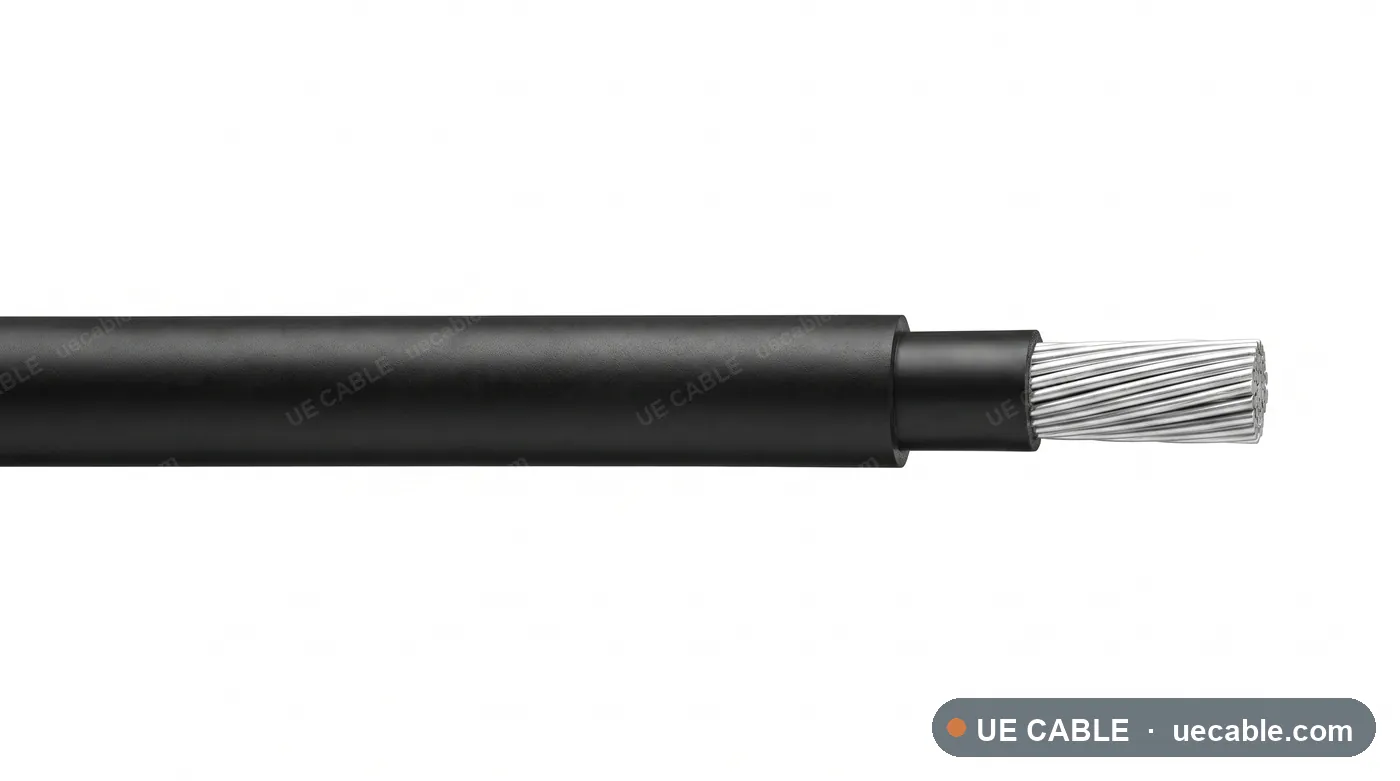

NA2XSY Aluminium XLPE PVC MV Cable is a specific medium-voltage cable construction for distribution networks, utility feeders, renewable energy plants applications, using aluminium conductor, xlpe insulation, copper wire screen with copper tape binder and pvc outer sheath.
View technical data →
European low smoke MV cable

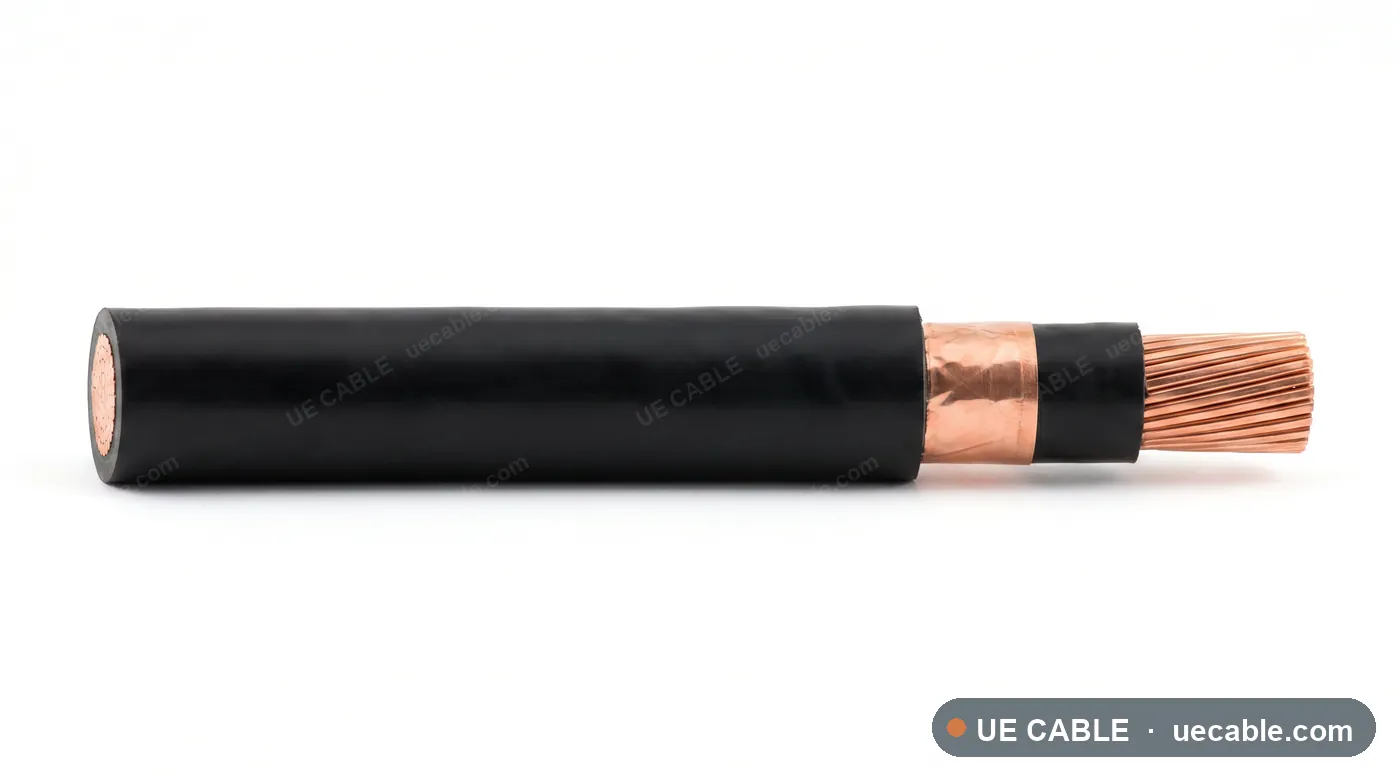

N2XSH Copper XLPE LSZH MV Cable is a specific medium-voltage cable construction for indoor mv distribution, public infrastructure, tunnels applications, using copper conductor, xlpe insulation, copper wire screen with copper tape binder and lszh outer sheath.
View technical data →
Water-blocked aluminium MV cable
RHZ1 Aluminium OL 2OL LSZH MV Cable is a specific medium-voltage cable construction for distribution networks, solar farms, wind farms applications, using aluminium conductor, xlpe insulation, copper wire screen and lszh polyolefin outer sheath.
View technical data →FAQ
Medium voltage cables for utility networks, industrial distribution, renewable energy connections, substations, mining projects and infrastructure power systems. They are built to IEC 60502-2, BS 6622, BS 7835, BS 7870, HD 620.
UE Cable medium voltage cables are manufactured and tested to IEC 60502-2, BS 6622, BS 7835, BS 7870, HD 620. The exact standard for each construction is stated on its specification sheet.
8 construction families are catalogued under medium voltage cables, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
