Mining and tunnelling cable

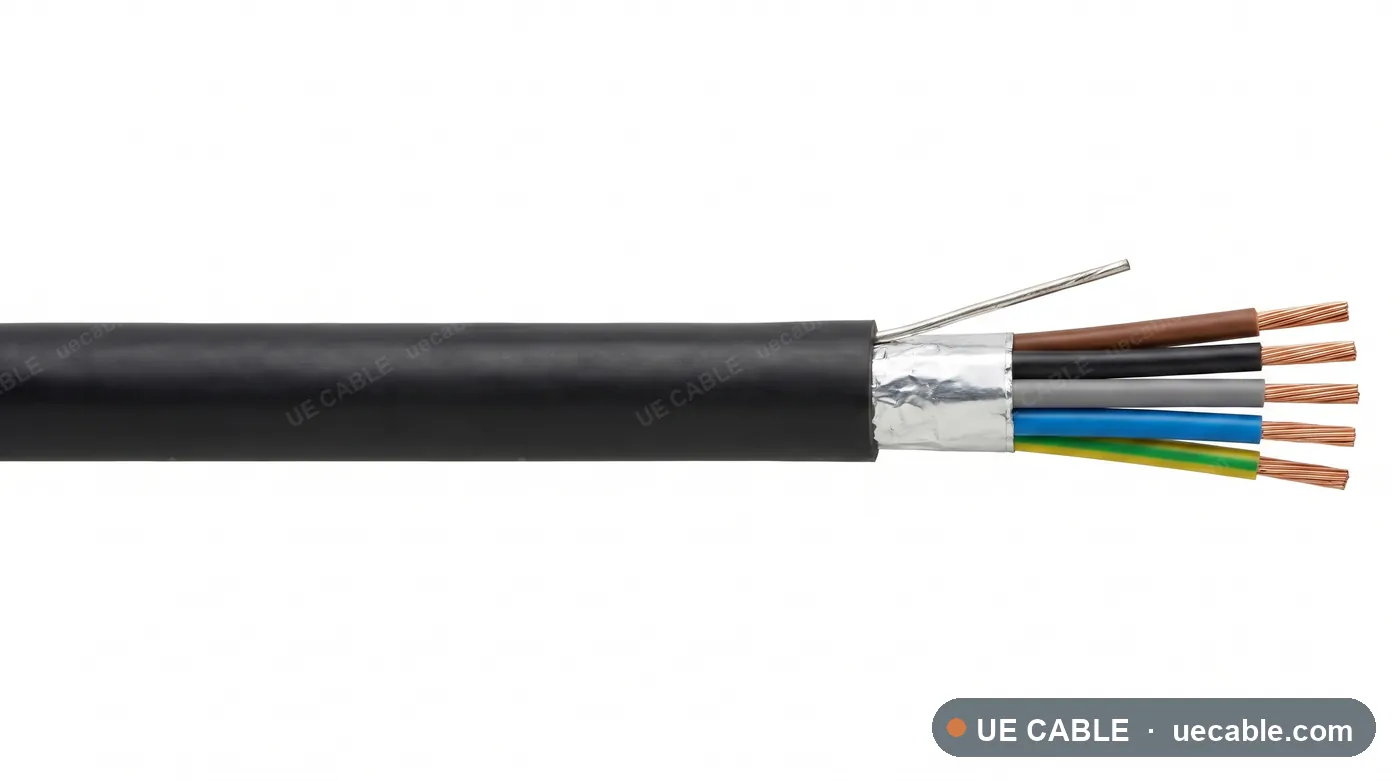

NTSCGEWOU Mining And Tunnelling Cable is a specific mining cable construction for tunnel boring equipment, mining drives, heavy mobile equipment applications, using flexible copper conductor, rubber compound insulation, screened power core and monitoring arrangement and oil, abrasion and flame resistant rubber sheath.
Cable Type Data
NTSCGEWOU Mining And Tunnelling Cable is a specific mining cable construction for tunnel boring equipment, mining drives, heavy mobile equipment applications, using flexible copper conductor, rubber compound insulation, screened power core and monitoring arrangement and oil, abrasion and flame resistant rubber sheath.
Specifications
Each row below is a complete specification sheet — 18 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| NTSCGEWOU 3.6/6 kV Tunnel equipment 3 power cores + earth + pilot 25 mm² | 25 mm² | 0.780 Ω/km | 35 mm |
| NTSCGEWOU 3.6/6 kV Tunnel equipment 3 power cores + earth + pilot 35 mm² | 35 mm² | 0.554 Ω/km | 37 mm |
| NTSCGEWOU 3.6/6 kV Tunnel equipment 3 power cores + earth + pilot 50 mm² | 50 mm² | 0.386 Ω/km | 40 mm |
| NTSCGEWOU 3.6/6 kV Tunnel equipment 3 power cores + earth + pilot 70 mm² | 70 mm² | 0.272 Ω/km | 43 mm |
| NTSCGEWOU 3.6/6 kV Tunnel equipment 3 power cores + earth + pilot 95 mm² | 95 mm² | 0.206 Ω/km | 46 mm |
| NTSCGEWOU 3.6/6 kV Tunnel equipment 3 power cores + earth + pilot 120 mm² | 120 mm² | 0.161 Ω/km | 49 mm |
Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| NTSCGEWOU 6/10 kV Mining drive 3 power cores + earth + pilot 35 mm² | 35 mm² | 0.554 Ω/km | 37 mm |
| NTSCGEWOU 6/10 kV Mining drive 3 power cores + earth + pilot 50 mm² | 50 mm² | 0.386 Ω/km | 40 mm |
| NTSCGEWOU 6/10 kV Mining drive 3 power cores + earth + pilot 70 mm² | 70 mm² | 0.272 Ω/km | 43 mm |
| NTSCGEWOU 6/10 kV Mining drive 3 power cores + earth + pilot 95 mm² | 95 mm² | 0.206 Ω/km | 46 mm |
| NTSCGEWOU 6/10 kV Mining drive 3 power cores + earth + pilot 120 mm² | 120 mm² | 0.161 Ω/km | 49 mm |
| NTSCGEWOU 6/10 kV Mining drive 3 power cores + earth + pilot 150 mm² | 150 mm² | 0.129 Ω/km | 52 mm |
Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| NTSCGEWOU 8.7/15 kV Flexible MV feeder 3 power cores + earth + pilot 50 mm² | 50 mm² | 0.386 Ω/km | 44 mm |
| NTSCGEWOU 8.7/15 kV Flexible MV feeder 3 power cores + earth + pilot 70 mm² | 70 mm² | 0.272 Ω/km | 47 mm |
| NTSCGEWOU 8.7/15 kV Flexible MV feeder 3 power cores + earth + pilot 95 mm² | 95 mm² | 0.206 Ω/km | 50 mm |
| NTSCGEWOU 8.7/15 kV Flexible MV feeder 3 power cores + earth + pilot 120 mm² | 120 mm² | 0.161 Ω/km | 53 mm |
| NTSCGEWOU 8.7/15 kV Flexible MV feeder 3 power cores + earth + pilot 150 mm² | 150 mm² | 0.129 Ω/km | 56 mm |
| NTSCGEWOU 8.7/15 kV Flexible MV feeder 3 power cores + earth + pilot 185 mm² | 185 mm² | 0.106 Ω/km | 60 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
