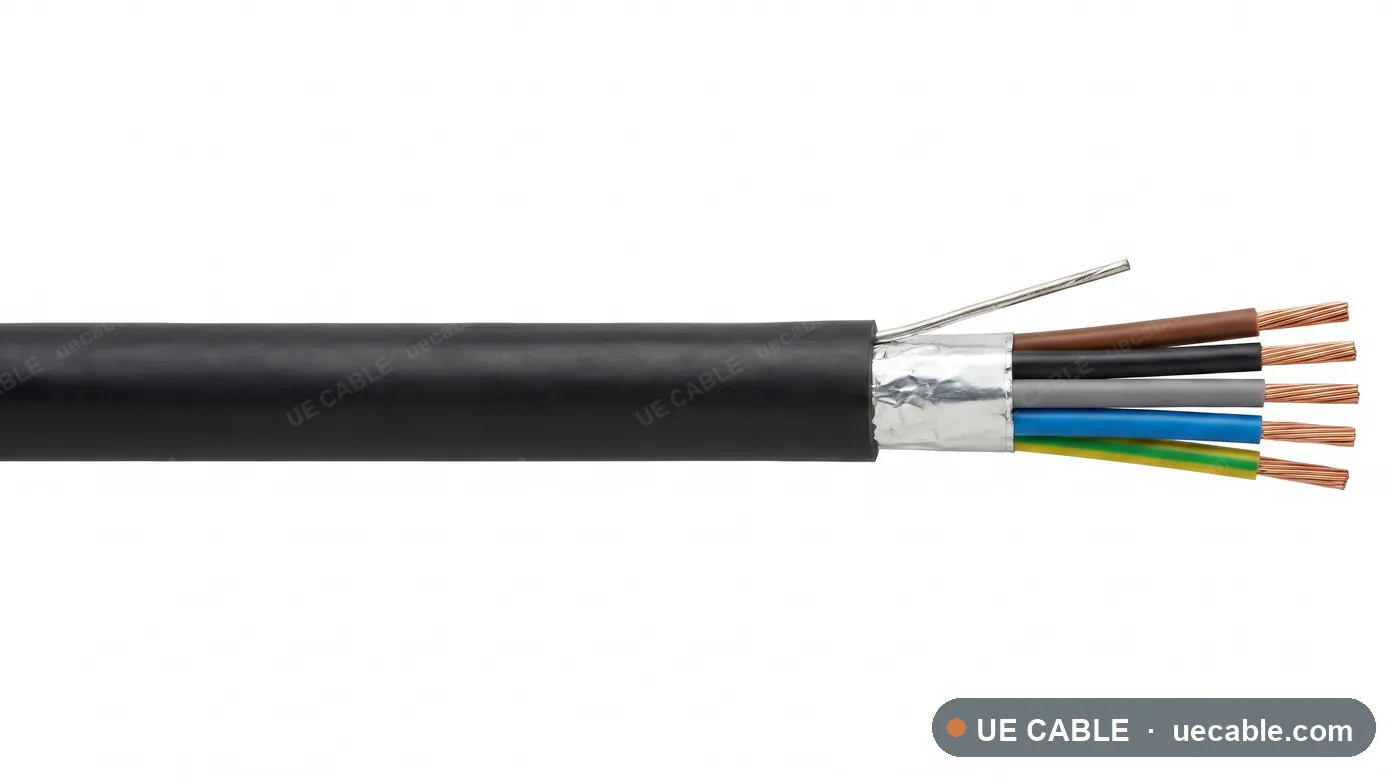

Mining Pump Cable cable construction reference

Mining pump feeder cable

Mining Pump Cable

Mining Pump Cable is a specific mining cable construction for mine pumps, dewatering systems, pump feeders applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and water and abrasion resistant mining sheath.

Standard
AS/NZS 1802
Voltage class
1.1/1.1 kV to 11/11 kV
Conductor
Flexible tinned copper conductor
Insulation / jacket
Water and abrasion resistant mining sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Mining Pump Cable is a specific mining cable construction for mine pumps, dewatering systems, pump feeders applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and water and abrasion resistant mining sheath.

  • Mine pumps
  • Dewatering systems
  • Pump feeders
  • Wet mining routes

Cable Construction

  • Flexible tinned copper conductor
  • EPR insulation
  • Semiconductive screen system
  • Earth continuity or pilot core arrangement according to equipment
  • Water and abrasion resistant mining sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 21 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

1.1/1.1 kV specification references

Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.

  • Voltage class1.1/1.1 kV
  • Equipment dutyPump feeder
  • Core / pilot design3 power cores + earth + pilot
Cable referenceConductor sizeMax DC resistance at 20 °COD guide
Mining pump cable 1.1/1.1 kV Pump feeder 3 power cores + earth + pilot 16 mm²16 mm²1.21 Ω/km24 mm
Mining pump cable 1.1/1.1 kV Pump feeder 3 power cores + earth + pilot 25 mm²25 mm²0.780 Ω/km26 mm
Mining pump cable 1.1/1.1 kV Pump feeder 3 power cores + earth + pilot 35 mm²35 mm²0.554 Ω/km28 mm
Mining pump cable 1.1/1.1 kV Pump feeder 3 power cores + earth + pilot 50 mm²50 mm²0.386 Ω/km31 mm
Mining pump cable 1.1/1.1 kV Pump feeder 3 power cores + earth + pilot 70 mm²70 mm²0.272 Ω/km34 mm
Mining pump cable 1.1/1.1 kV Pump feeder 3 power cores + earth + pilot 95 mm²95 mm²0.206 Ω/km37 mm

3.3/3.3 kV specification references

Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.

  • Voltage class3.3/3.3 kV
  • Equipment dutyDewatering pump
  • Core / pilot design3 power cores + earth + pilot
Cable referenceConductor sizeMax DC resistance at 20 °COD guide
Mining pump cable 3.3/3.3 kV Dewatering pump 3 power cores + earth + pilot 25 mm²25 mm²0.780 Ω/km29 mm
Mining pump cable 3.3/3.3 kV Dewatering pump 3 power cores + earth + pilot 35 mm²35 mm²0.554 Ω/km31 mm
Mining pump cable 3.3/3.3 kV Dewatering pump 3 power cores + earth + pilot 50 mm²50 mm²0.386 Ω/km34 mm
Mining pump cable 3.3/3.3 kV Dewatering pump 3 power cores + earth + pilot 70 mm²70 mm²0.272 Ω/km37 mm
Mining pump cable 3.3/3.3 kV Dewatering pump 3 power cores + earth + pilot 95 mm²95 mm²0.206 Ω/km40 mm
Mining pump cable 3.3/3.3 kV Dewatering pump 3 power cores + earth + pilot 120 mm²120 mm²0.161 Ω/km43 mm

6.6/6.6 kV specification references

Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.

  • Voltage class6.6/6.6 kV
  • Equipment dutyWet route feeder
  • Core / pilot design3 power cores + earth + pilot
Cable referenceConductor sizeMax DC resistance at 20 °COD guide
Mining pump cable 6.6/6.6 kV Wet route feeder 3 power cores + earth + pilot 35 mm²35 mm²0.554 Ω/km35 mm
Mining pump cable 6.6/6.6 kV Wet route feeder 3 power cores + earth + pilot 50 mm²50 mm²0.386 Ω/km38 mm
Mining pump cable 6.6/6.6 kV Wet route feeder 3 power cores + earth + pilot 70 mm²70 mm²0.272 Ω/km41 mm
Mining pump cable 6.6/6.6 kV Wet route feeder 3 power cores + earth + pilot 95 mm²95 mm²0.206 Ω/km44 mm
Mining pump cable 6.6/6.6 kV Wet route feeder 3 power cores + earth + pilot 120 mm²120 mm²0.161 Ω/km47 mm

11/11 kV specification references

Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.

  • Voltage class11/11 kV
  • Equipment dutyProject equipment
  • Core / pilot design3 power cores + earth + pilot
Cable referenceConductor sizeMax DC resistance at 20 °COD guide
Mining pump cable 11/11 kV Project equipment 3 power cores + earth + pilot 50 mm²50 mm²0.386 Ω/km42 mm
Mining pump cable 11/11 kV Project equipment 3 power cores + earth + pilot 70 mm²70 mm²0.272 Ω/km45 mm
Mining pump cable 11/11 kV Project equipment 3 power cores + earth + pilot 95 mm²95 mm²0.206 Ω/km48 mm
Mining pump cable 11/11 kV Project equipment 3 power cores + earth + pilot 120 mm²120 mm²0.161 Ω/km51 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
