European flexible mining cable

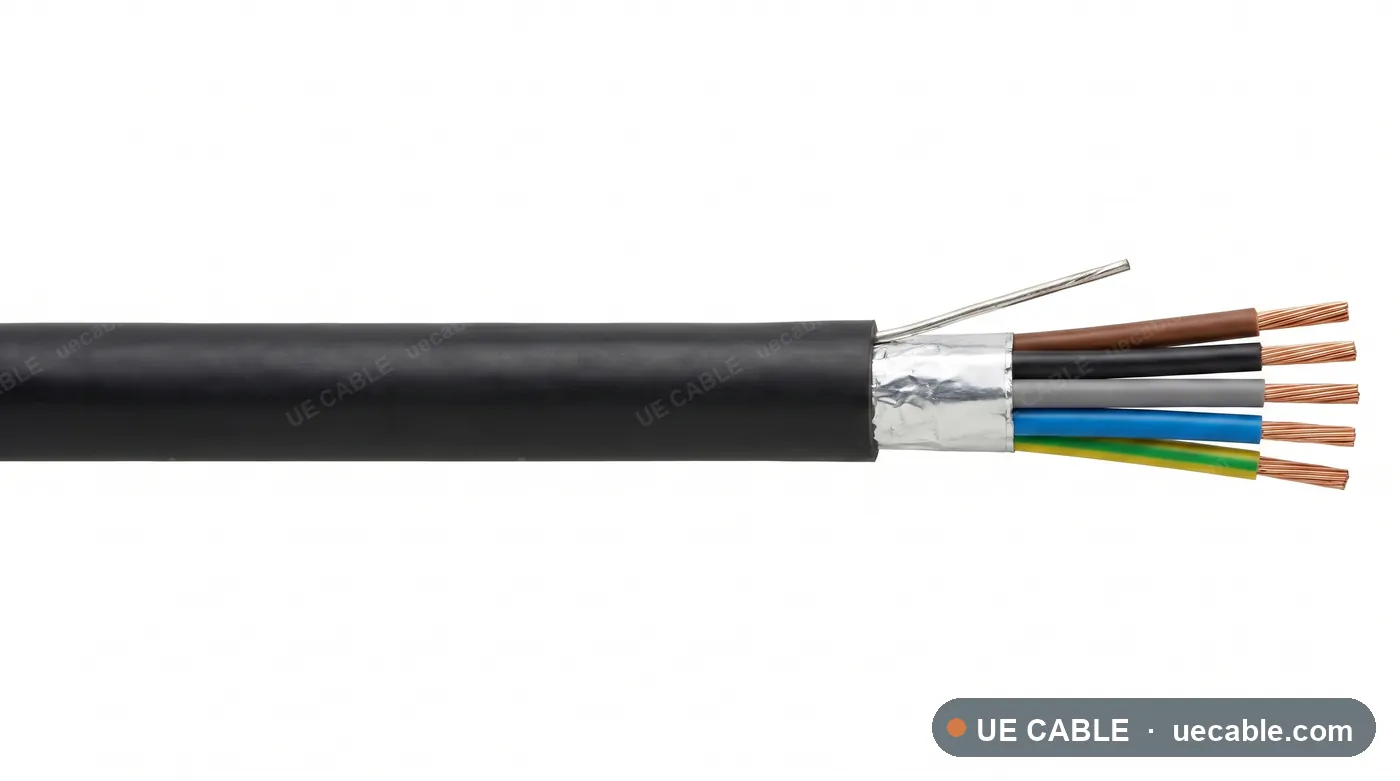

NSHOU Flexible Mining Cable is a specific mining cable construction for mining equipment, tunnelling equipment, portable power applications, using flexible copper conductor, rubber compound insulation, optional monitoring or screen arrangement and heavy-duty rubber sheath.
Cable Type Data
NSHOU Flexible Mining Cable is a specific mining cable construction for mining equipment, tunnelling equipment, portable power applications, using flexible copper conductor, rubber compound insulation, optional monitoring or screen arrangement and heavy-duty rubber sheath.
Specifications
Each row below is a complete specification sheet — 18 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| NSHOU 0.6/1 kV Portable equipment 3 power cores + earth + pilot 4 mm² | 4 mm² | 4.95 Ω/km | 26 mm |
| NSHOU 0.6/1 kV Portable equipment 3 power cores + earth + pilot 6 mm² | 6 mm² | 3.30 Ω/km | 27 mm |
| NSHOU 0.6/1 kV Portable equipment 3 power cores + earth + pilot 10 mm² | 10 mm² | 1.91 Ω/km | 29 mm |
| NSHOU 0.6/1 kV Portable equipment 3 power cores + earth + pilot 16 mm² | 16 mm² | 1.21 Ω/km | 31 mm |
| NSHOU 0.6/1 kV Portable equipment 3 power cores + earth + pilot 25 mm² | 25 mm² | 0.780 Ω/km | 33 mm |
| NSHOU 0.6/1 kV Portable equipment 3 power cores + earth + pilot 35 mm² | 35 mm² | 0.554 Ω/km | 35 mm |
Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| NSHOU 1.8/3 kV Tunnel equipment 3 power cores + earth + pilot 10 mm² | 10 mm² | 1.91 Ω/km | 25 mm |
| NSHOU 1.8/3 kV Tunnel equipment 3 power cores + earth + pilot 16 mm² | 16 mm² | 1.21 Ω/km | 27 mm |
| NSHOU 1.8/3 kV Tunnel equipment 3 power cores + earth + pilot 25 mm² | 25 mm² | 0.780 Ω/km | 29 mm |
| NSHOU 1.8/3 kV Tunnel equipment 3 power cores + earth + pilot 35 mm² | 35 mm² | 0.554 Ω/km | 31 mm |
| NSHOU 1.8/3 kV Tunnel equipment 3 power cores + earth + pilot 50 mm² | 50 mm² | 0.386 Ω/km | 34 mm |
| NSHOU 1.8/3 kV Tunnel equipment 3 power cores + earth + pilot 70 mm² | 70 mm² | 0.272 Ω/km | 37 mm |
Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| NSHOU 3.6/6 kV Mobile feeder 3 power cores + earth + pilot 25 mm² | 25 mm² | 0.780 Ω/km | 33 mm |
| NSHOU 3.6/6 kV Mobile feeder 3 power cores + earth + pilot 35 mm² | 35 mm² | 0.554 Ω/km | 35 mm |
| NSHOU 3.6/6 kV Mobile feeder 3 power cores + earth + pilot 50 mm² | 50 mm² | 0.386 Ω/km | 38 mm |
| NSHOU 3.6/6 kV Mobile feeder 3 power cores + earth + pilot 70 mm² | 70 mm² | 0.272 Ω/km | 41 mm |
| NSHOU 3.6/6 kV Mobile feeder 3 power cores + earth + pilot 95 mm² | 95 mm² | 0.206 Ω/km | 44 mm |
| NSHOU 3.6/6 kV Mobile feeder 3 power cores + earth + pilot 120 mm² | 120 mm² | 0.161 Ω/km | 47 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
