Longwall shearer cable

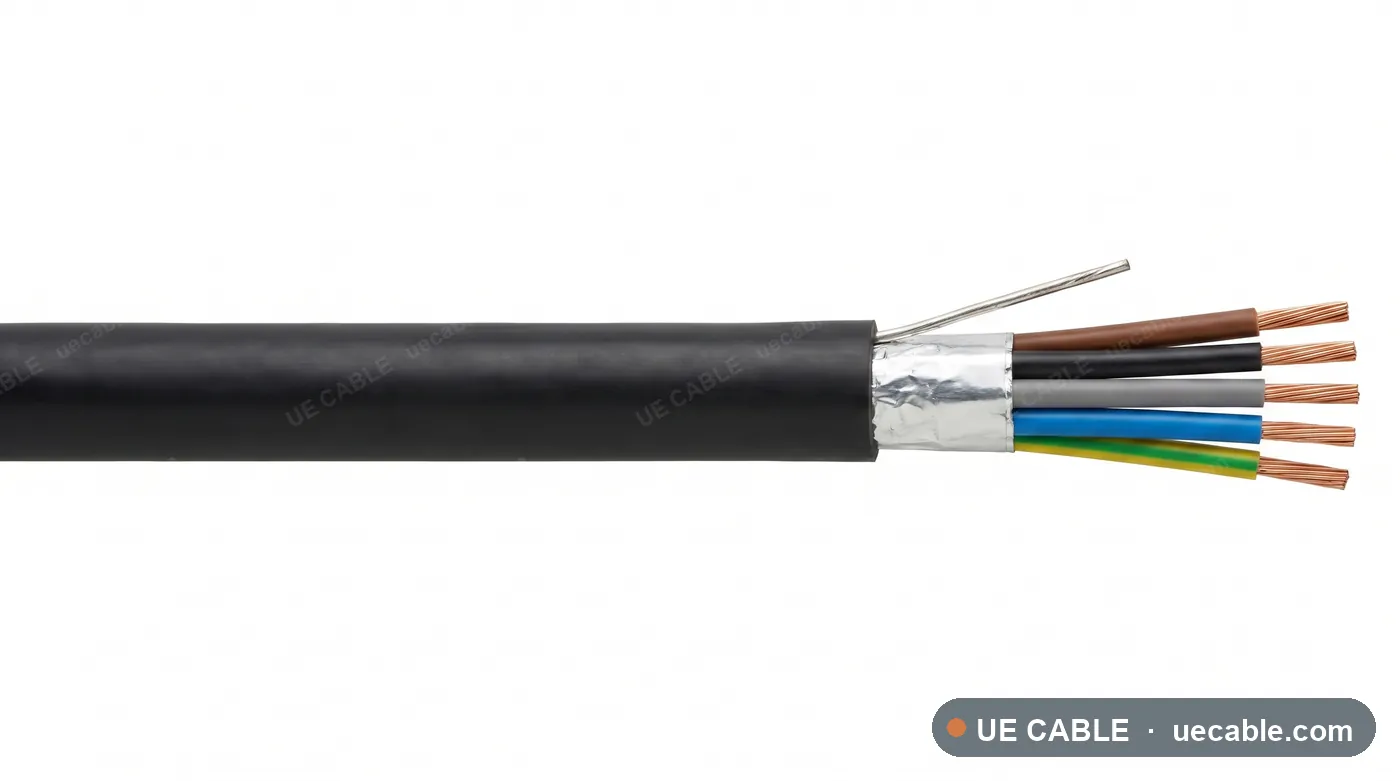

AS/NZS 1802 Type 245 Longwall Mining Cable is a specific mining cable construction for longwall shearers, continuous miners, longwall peripheral equipment applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and heavy-duty reinforced mining sheath.
Cable Type Data
AS/NZS 1802 Type 245 Longwall Mining Cable is a specific mining cable construction for longwall shearers, continuous miners, longwall peripheral equipment applications, using flexible tinned copper conductor, epr insulation, semiconductive screen system and heavy-duty reinforced mining sheath.
Specifications
Each row below is a complete specification sheet — 17 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| Type 245 mining cable 1.1/1.1 kV Longwall shearer 3 power cores + 3 central pilots 25 mm² | 25 mm² | 0.780 Ω/km | 29 mm |
| Type 245 mining cable 1.1/1.1 kV Longwall shearer 3 power cores + 3 central pilots 35 mm² | 35 mm² | 0.554 Ω/km | 31 mm |
| Type 245 mining cable 1.1/1.1 kV Longwall shearer 3 power cores + 3 central pilots 50 mm² | 50 mm² | 0.386 Ω/km | 34 mm |
| Type 245 mining cable 1.1/1.1 kV Longwall shearer 3 power cores + 3 central pilots 70 mm² | 70 mm² | 0.272 Ω/km | 37 mm |
| Type 245 mining cable 1.1/1.1 kV Longwall shearer 3 power cores + 3 central pilots 95 mm² | 95 mm² | 0.206 Ω/km | 40 mm |
Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| Type 245 mining cable 3.3/3.3 kV Continuous miner 3 power cores + pilot cores 25 mm² | 25 mm² | 0.780 Ω/km | 32 mm |
| Type 245 mining cable 3.3/3.3 kV Continuous miner 3 power cores + pilot cores 35 mm² | 35 mm² | 0.554 Ω/km | 34 mm |
| Type 245 mining cable 3.3/3.3 kV Continuous miner 3 power cores + pilot cores 50 mm² | 50 mm² | 0.386 Ω/km | 37 mm |
| Type 245 mining cable 3.3/3.3 kV Continuous miner 3 power cores + pilot cores 70 mm² | 70 mm² | 0.272 Ω/km | 40 mm |
| Type 245 mining cable 3.3/3.3 kV Continuous miner 3 power cores + pilot cores 95 mm² | 95 mm² | 0.206 Ω/km | 43 mm |
| Type 245 mining cable 3.3/3.3 kV Continuous miner 3 power cores + pilot cores 120 mm² | 120 mm² | 0.161 Ω/km | 46 mm |
Each row is an exact mining cable cable specification sheet. Shared standard, compound and duty notes are listed above.
| Cable reference | Conductor size | Max DC resistance at 20 °C | OD guide |
|---|---|---|---|
| Type 245 mining cable 6.6/6.6 kV Peripheral longwall cable High-flex pilot arrangement 35 mm² | 35 mm² | 0.554 Ω/km | 38 mm |
| Type 245 mining cable 6.6/6.6 kV Peripheral longwall cable High-flex pilot arrangement 50 mm² | 50 mm² | 0.386 Ω/km | 41 mm |
| Type 245 mining cable 6.6/6.6 kV Peripheral longwall cable High-flex pilot arrangement 70 mm² | 70 mm² | 0.272 Ω/km | 44 mm |
| Type 245 mining cable 6.6/6.6 kV Peripheral longwall cable High-flex pilot arrangement 95 mm² | 95 mm² | 0.206 Ω/km | 47 mm |
| Type 245 mining cable 6.6/6.6 kV Peripheral longwall cable High-flex pilot arrangement 120 mm² | 120 mm² | 0.161 Ω/km | 50 mm |
| Type 245 mining cable 6.6/6.6 kV Peripheral longwall cable High-flex pilot arrangement 150 mm² | 150 mm² | 0.129 Ω/km | 53 mm |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
