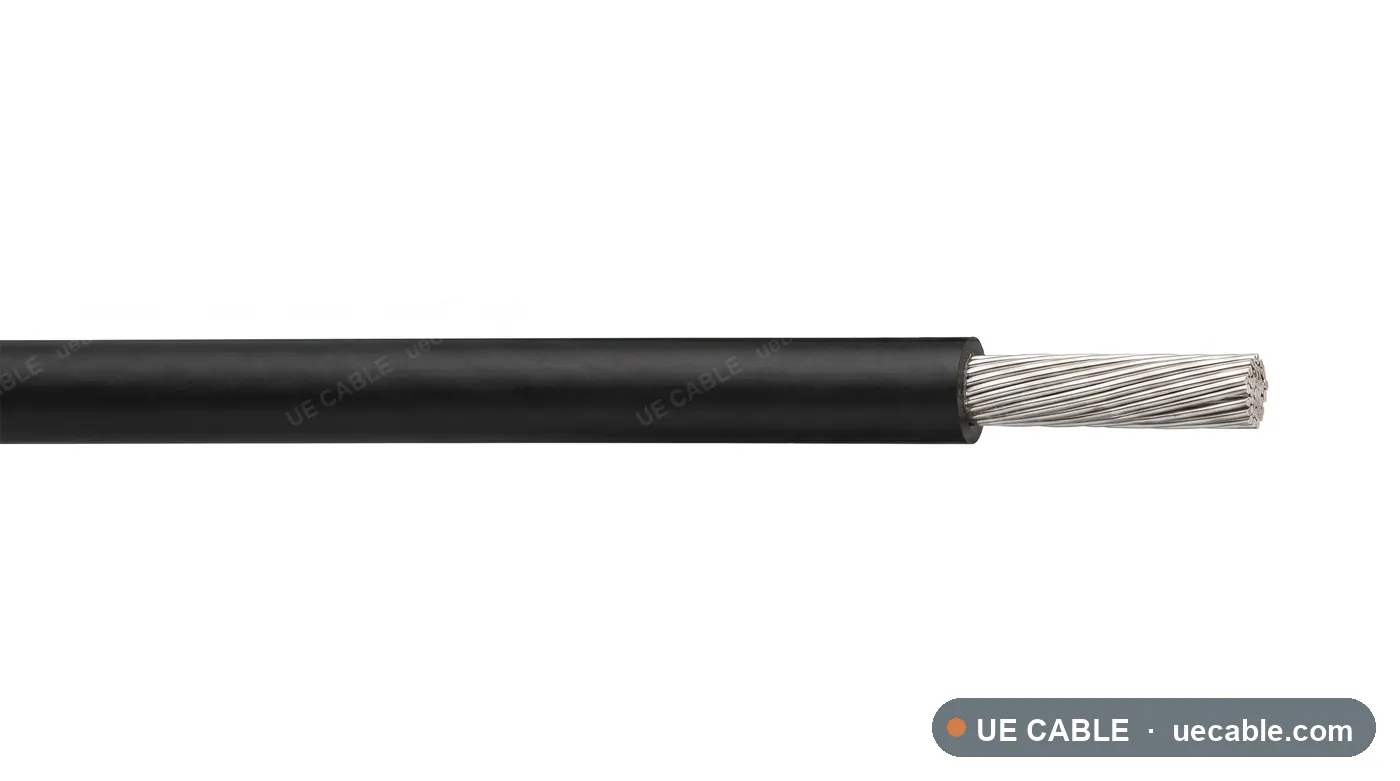

Wind Turbine MV Collector Cable cable construction reference

Wind farm MV collector cable

Wind Turbine MV Collector Cable

Wind Turbine MV Collector Cable is a motion-duty cable reference for wind farm collectors, turbine step-up feeders, substation links, using class 2 copper or aluminium mv conductor, conductor screen, insulation screen and copper wire/tape metallic screen, uv, water and abrasion resistant pe / lszh outer sheath and fixed buried or ducted collector route.

Standard
IEC 60502-2 / wind collector reference
Voltage class
6.35/11 kV to 19/33 kV
Temperature class
-25 °C to +90 °C conductor route guide
Conductor
50 mm², 70 mm², 95 mm², 120 mm², 150 mm², 185 mm², 240 mm²
Insulation / jacket
UV, water and abrasion resistant PE / LSZH outer sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Wind Turbine MV Collector Cable is a motion-duty cable reference for wind farm collectors, turbine step-up feeders, substation links, using class 2 copper or aluminium mv conductor, conductor screen, insulation screen and copper wire/tape metallic screen, uv, water and abrasion resistant pe / lszh outer sheath and fixed buried or ducted collector route.

  • Wind farm collectors
  • Turbine step-up feeders
  • Substation links
  • Renewable energy grids

Cable Construction

  • Class 2 copper or aluminium MV conductor
  • Short-lay or torsion-optimized core assembly
  • Conductor screen, insulation screen and copper wire/tape metallic screen
  • UV, water and abrasion resistant PE / LSZH outer sheath
  • Fixed buried or ducted collector route
  • Wind farm collector, duct, direct burial and substation route duty

Specifications

Select a cable size.

Each row below is a complete specification sheet — 14 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Wind turbine MV collector cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

  • Motion dutyFixed collector feeder from turbine to substation
  • Cable functionMedium-voltage wind farm collector circuit
  • Voltage class6.35/11 kV to 19/33 kV
  • Conductor constructionClass 2 copper or aluminium MV conductor
  • Screen / protectionConductor screen, insulation screen and copper wire/tape metallic screen
  • JacketUV, water and abrasion resistant PE / LSZH outer sheath
  • Torsion ratingFixed buried or ducted collector route
  • Temperature class-25 °C to +90 °C conductor route guide
Cable referenceElement designConductor / element sizeOD guideWeight guide
Wind turbine MV collector cable single core 50 mm²single core50 mm²26.6 mm3925 kg/km
Wind turbine MV collector cable single core 70 mm²single core70 mm²29.4 mm5445 kg/km
Wind turbine MV collector cable single core 95 mm²single core95 mm²32.3 mm7345 kg/km
Wind turbine MV collector cable single core 120 mm²single core120 mm²34.8 mm9245 kg/km
Wind turbine MV collector cable single core 150 mm²single core150 mm²37.5 mm11525 kg/km
Wind turbine MV collector cable single core 185 mm²single core185 mm²40.4 mm14185 kg/km
Wind turbine MV collector cable single core 240 mm²single core240 mm²44.3 mm18365 kg/km
Wind turbine MV collector cable three core 50 mm²three core50 mm²26.6 mm3925 kg/km
Wind turbine MV collector cable three core 70 mm²three core70 mm²29.4 mm5445 kg/km
Wind turbine MV collector cable three core 95 mm²three core95 mm²32.3 mm7345 kg/km
Wind turbine MV collector cable three core 120 mm²three core120 mm²34.8 mm9245 kg/km
Wind turbine MV collector cable three core 150 mm²three core150 mm²37.5 mm11525 kg/km
Wind turbine MV collector cable three core 185 mm²three core185 mm²40.4 mm14185 kg/km
Wind turbine MV collector cable three core 240 mm²three core240 mm²44.3 mm18365 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
