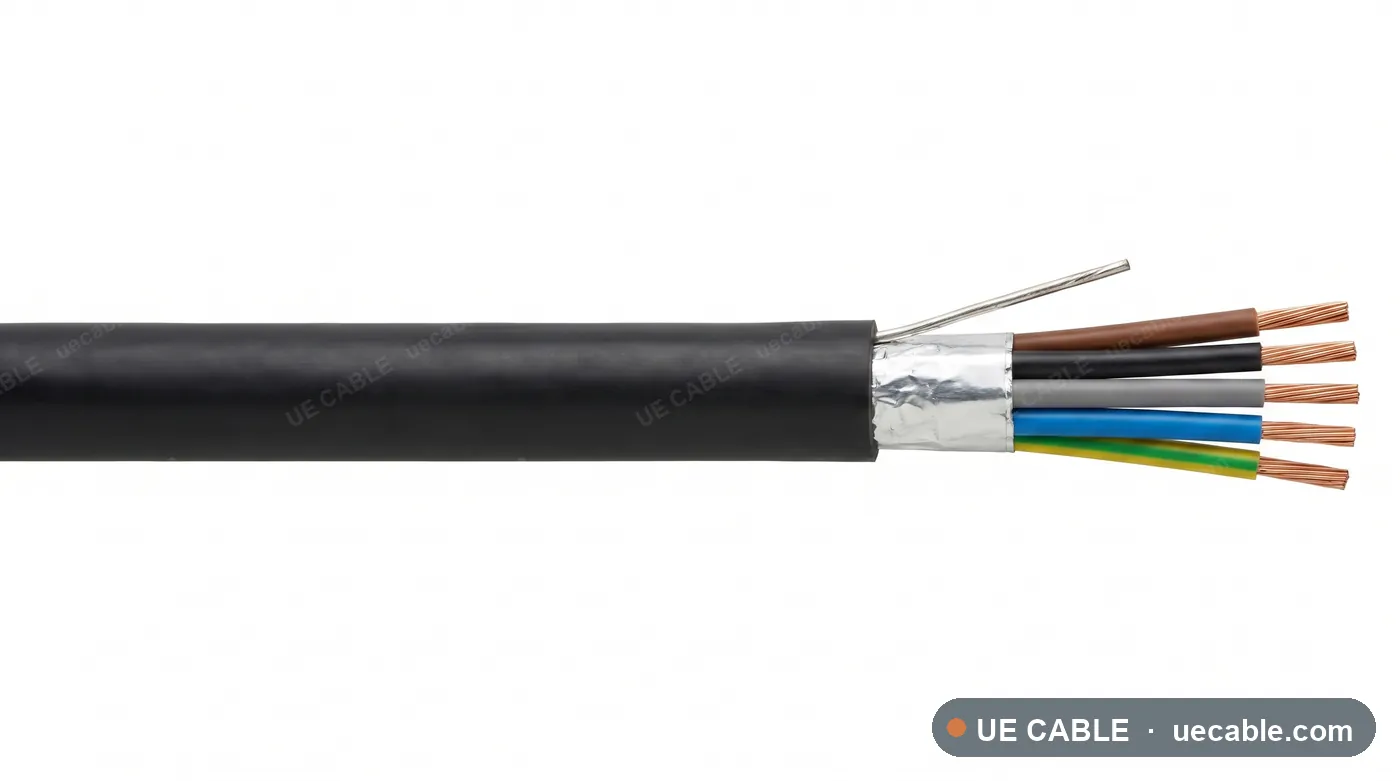

Wind Turbine Loop Torsion Power Cable cable construction reference

Wind turbine torsion power cable

Wind Turbine Loop Torsion Power Cable

Wind Turbine Loop Torsion Power Cable is a motion-duty cable reference for nacelle loop power, yaw loop power, converter output, using class 5 flexible bare copper power conductor, optional emc screen or phase separator by turbine design, cold, oil, uv and ozone resistant hffr / lszh jacket and wind loop torsion up to +/- 150 degrees per m guide.

Standard: EN 50525 / IEC 60502-1 wind loop reference
Voltage class: 0.6/1 kV
Temperature class: -40 °C to +90 °C wind turbine route guide
Conductor: 6 mm², 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm²
Insulation / jacket: Cold, oil, UV and ozone resistant HFFR / LSZH jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Wind Turbine Loop Torsion Power Cable is a motion-duty cable reference for nacelle loop power, yaw loop power, converter output, using class 5 flexible bare copper power conductor, optional emc screen or phase separator by turbine design, cold, oil, uv and ozone resistant hffr / lszh jacket and wind loop torsion up to +/- 150 degrees per m guide.

Nacelle loop power
Yaw loop power
Converter output
Wind turbine auxiliary power

Cable Construction

Class 5 flexible bare copper power conductor
Short-lay or torsion-optimized core assembly
Optional EMC screen or phase separator by turbine design
Cold, oil, UV and ozone resistant HFFR / LSZH jacket
Wind loop torsion up to +/- 150 degrees per m guide
Nacelle loop, offshore salt-air, oil, UV and ozone route duty

Specifications

Select a cable size.

Each row below is a complete specification sheet — 16 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Wind turbine loop torsion power cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

Motion dutyNacelle loop torsion under yaw movement
Cable function0.6/1 kV turbine power connection
Voltage class0.6/1 kV
Conductor constructionClass 5 flexible bare copper power conductor
Screen / protectionOptional EMC screen or phase separator by turbine design
JacketCold, oil, UV and ozone resistant HFFR / LSZH jacket
Torsion ratingWind loop torsion up to +/- 150 degrees per m guide
Temperature class-40 °C to +90 °C wind turbine route guide

Cable reference	Element design	Conductor / element size	OD guide	Weight guide
Wind turbine loop torsion power cable 4 core 6 mm²	4 core	6 mm²	16.9 mm	581 kg/km
Wind turbine loop torsion power cable 4 core 10 mm²	4 core	10 mm²	18.4 mm	885 kg/km
Wind turbine loop torsion power cable 4 core 16 mm²	4 core	16 mm²	20.2 mm	1341 kg/km
Wind turbine loop torsion power cable 4 core 25 mm²	4 core	25 mm²	22.3 mm	2025 kg/km
Wind turbine loop torsion power cable 4 core 35 mm²	4 core	35 mm²	24.2 mm	2785 kg/km
Wind turbine loop torsion power cable 4 core 50 mm²	4 core	50 mm²	26.6 mm	3925 kg/km
Wind turbine loop torsion power cable 4 core 70 mm²	4 core	70 mm²	29.4 mm	5445 kg/km
Wind turbine loop torsion power cable 4 core 95 mm²	4 core	95 mm²	32.3 mm	7345 kg/km
Wind turbine loop torsion power cable 5 core 6 mm²	5 core	6 mm²	17.3 mm	695 kg/km
Wind turbine loop torsion power cable 5 core 10 mm²	5 core	10 mm²	18.8 mm	1075 kg/km
Wind turbine loop torsion power cable 5 core 16 mm²	5 core	16 mm²	20.6 mm	1645 kg/km
Wind turbine loop torsion power cable 5 core 25 mm²	5 core	25 mm²	22.7 mm	2500 kg/km
Wind turbine loop torsion power cable 5 core 35 mm²	5 core	35 mm²	24.6 mm	3450 kg/km
Wind turbine loop torsion power cable 5 core 50 mm²	5 core	50 mm²	27.1 mm	4875 kg/km
Wind turbine loop torsion power cable 5 core 70 mm²	5 core	70 mm²	29.8 mm	6775 kg/km
Wind turbine loop torsion power cable 5 core 95 mm²	5 core	95 mm²	32.7 mm	9150 kg/km

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
