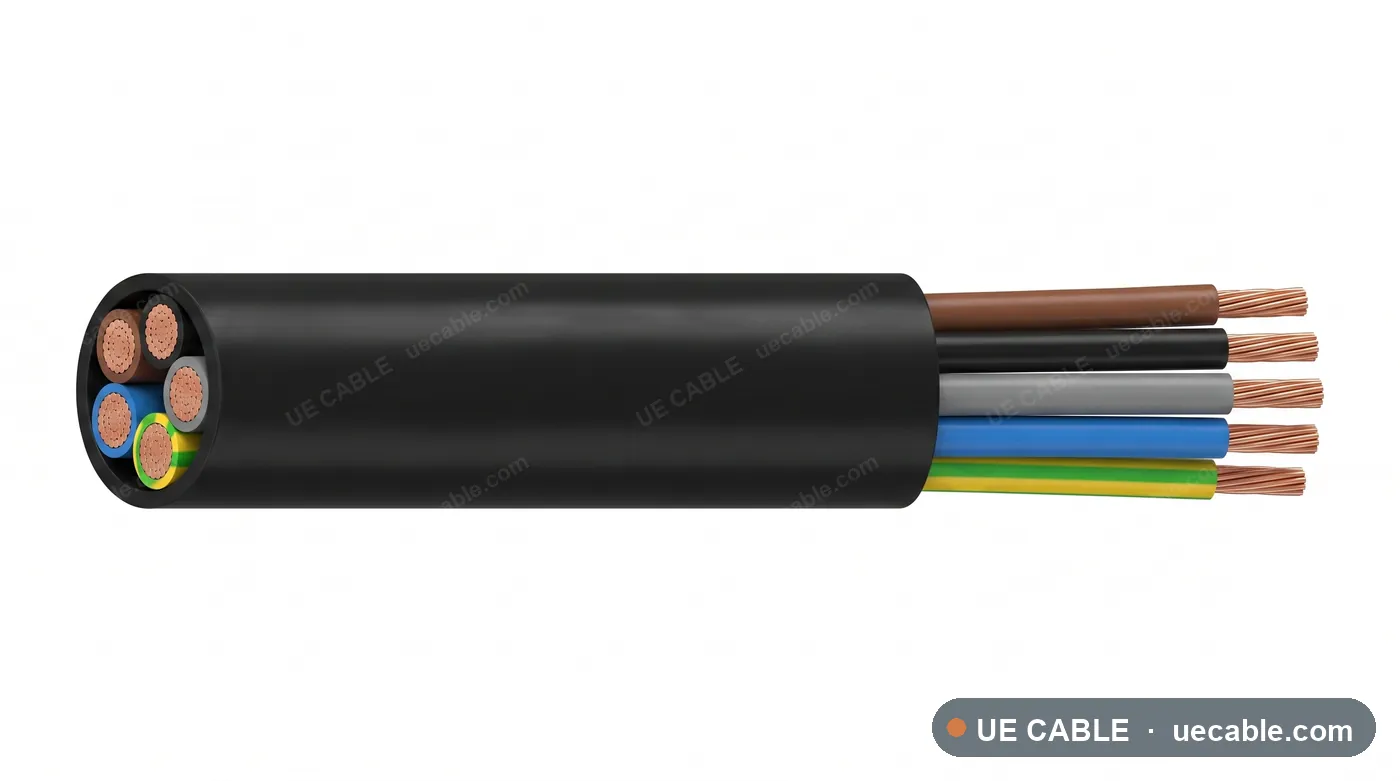

WTTC Wind Turbine Tray Cable Family cable construction reference

Wind turbine tray cable

WTTC Wind Turbine Tray Cable Family

WTTC Wind Turbine Tray Cable Family is a motion-duty cable reference for wind turbine tray wiring, auxiliary circuits, control cabinets, using stranded tinned copper tray cable conductor, tray cable construction with exposed-run jacket option, sunlight, oil and turbine-rated tpe/pvc jacket and fixed tray and turbine service-loop installation guide.

Standard
UL WTTC / TC-ER reference
Voltage class
600 V / 1000 V
Temperature class
-40 °C to +90 °C turbine tray route guide
Conductor
AWG16, AWG14, AWG12, AWG10
Insulation / jacket
Sunlight, oil and turbine-rated TPE/PVC jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

WTTC Wind Turbine Tray Cable Family is a motion-duty cable reference for wind turbine tray wiring, auxiliary circuits, control cabinets, using stranded tinned copper tray cable conductor, tray cable construction with exposed-run jacket option, sunlight, oil and turbine-rated tpe/pvc jacket and fixed tray and turbine service-loop installation guide.

  • Wind turbine tray wiring
  • Auxiliary circuits
  • Control cabinets
  • Tower tray routes

Cable Construction

  • Stranded tinned copper tray cable conductor
  • Short-lay or torsion-optimized core assembly
  • Tray cable construction with exposed-run jacket option
  • Sunlight, oil and turbine-rated TPE/PVC jacket
  • Fixed tray and turbine service-loop installation guide
  • Oil, sunlight, cold bend and tray/exposed-run duty

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

WTTC wind turbine tray cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

  • Motion dutyTray, exposed-run and turbine auxiliary wiring
  • Cable functionWind turbine tray power/control circuits
  • Voltage class600 V / 1000 V
  • Conductor constructionStranded tinned copper tray cable conductor
  • Screen / protectionTray cable construction with exposed-run jacket option
  • JacketSunlight, oil and turbine-rated TPE/PVC jacket
  • Torsion ratingFixed tray and turbine service-loop installation guide
  • Temperature class-40 °C to +90 °C turbine tray route guide
Cable referenceElement designConductor / element sizeOD guideWeight guide
WTTC wind turbine tray cable 4 core AWG164 coreAWG1618.6 mm1291 kg/km
WTTC wind turbine tray cable 4 core AWG144 coreAWG1418.1 mm1139 kg/km
WTTC wind turbine tray cable 4 core AWG124 coreAWG1217.5 mm987 kg/km
WTTC wind turbine tray cable 4 core AWG104 coreAWG1016.8 mm835 kg/km
WTTC wind turbine tray cable 5 core AWG165 coreAWG1619.0 mm1595 kg/km
WTTC wind turbine tray cable 5 core AWG145 coreAWG1418.5 mm1405 kg/km
WTTC wind turbine tray cable 5 core AWG125 coreAWG1217.9 mm1215 kg/km
WTTC wind turbine tray cable 5 core AWG105 coreAWG1017.2 mm1025 kg/km
WTTC wind turbine tray cable 7 core AWG167 coreAWG1619.7 mm2203 kg/km
WTTC wind turbine tray cable 7 core AWG147 coreAWG1419.2 mm1937 kg/km
WTTC wind turbine tray cable 7 core AWG127 coreAWG1218.6 mm1671 kg/km
WTTC wind turbine tray cable 7 core AWG107 coreAWG1017.9 mm1405 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
