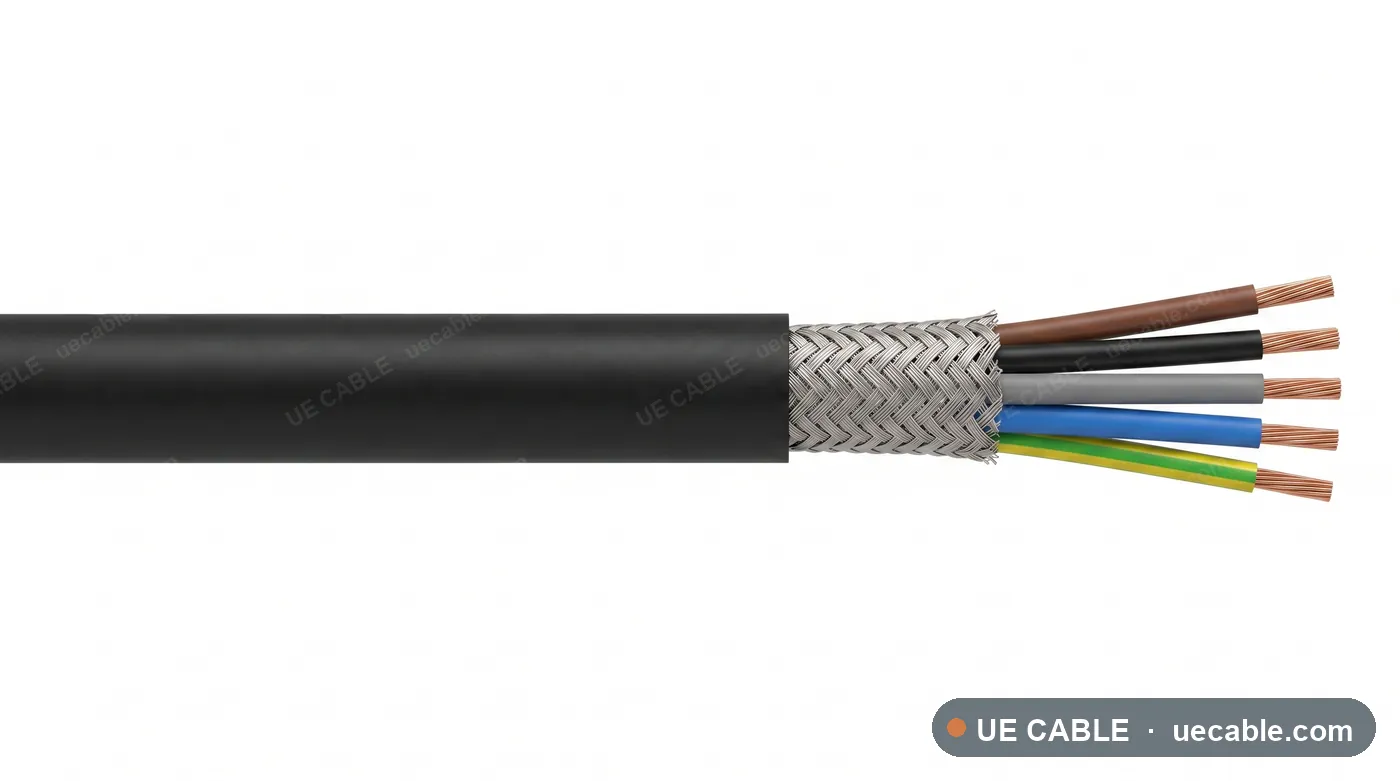

Wind Turbine Loop Control Cable cable construction reference

Wind turbine loop control cable

Wind Turbine Loop Control Cable

Wind Turbine Loop Control Cable is a motion-duty cable reference for nacelle controls, yaw systems, converter cabinets, using class 5 flexible bare copper control conductor, optional tinned copper braid emc screen, cold, oil and uv resistant pur / hffr jacket and wind loop torsion up to +/- 150 degrees per m guide.

Standard: EN 50525 / wind turbine control reference
Voltage class: 300/500 V
Temperature class: -40 °C to +90 °C wind turbine route guide
Conductor: 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
Insulation / jacket: Cold, oil and UV resistant PUR / HFFR jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Wind Turbine Loop Control Cable is a motion-duty cable reference for nacelle controls, yaw systems, converter cabinets, using class 5 flexible bare copper control conductor, optional tinned copper braid emc screen, cold, oil and uv resistant pur / hffr jacket and wind loop torsion up to +/- 150 degrees per m guide.

Nacelle controls
Yaw systems
Converter cabinets
Tower auxiliary circuits

Cable Construction

Class 5 flexible bare copper control conductor
Short-lay or torsion-optimized core assembly
Optional tinned copper braid EMC screen
Cold, oil and UV resistant PUR / HFFR jacket
Wind loop torsion up to +/- 150 degrees per m guide
Oil, UV, ozone and tower-loop control route duty

Specifications

Select a cable size.

Each row below is a complete specification sheet — 20 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Wind turbine loop control cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

Motion dutyNacelle loop torsion for control circuits
Cable functionControl, auxiliary and instrumentation circuits
Voltage class300/500 V
Conductor constructionClass 5 flexible bare copper control conductor
Screen / protectionOptional tinned copper braid EMC screen
JacketCold, oil and UV resistant PUR / HFFR jacket
Torsion ratingWind loop torsion up to +/- 150 degrees per m guide
Temperature class-40 °C to +90 °C wind turbine route guide

Cable reference	Element design	Conductor / element size	OD guide	Weight guide
Wind turbine loop control cable 4 core 0.75 mm²	4 core	0.75 mm²	13.6 mm	182 kg/km
Wind turbine loop control cable 4 core 1.0 mm²	4 core	1.0 mm²	13.9 mm	201 kg/km
Wind turbine loop control cable 4 core 1.5 mm²	4 core	1.5 mm²	14.4 mm	239 kg/km
Wind turbine loop control cable 4 core 2.5 mm²	4 core	2.5 mm²	15.1 mm	315 kg/km
Wind turbine loop control cable 7 core 0.75 mm²	7 core	0.75 mm²	14.7 mm	225 kg/km
Wind turbine loop control cable 7 core 1.0 mm²	7 core	1.0 mm²	15.0 mm	258 kg/km
Wind turbine loop control cable 7 core 1.5 mm²	7 core	1.5 mm²	15.5 mm	325 kg/km
Wind turbine loop control cable 7 core 2.5 mm²	7 core	2.5 mm²	16.2 mm	458 kg/km
Wind turbine loop control cable 12 core 0.75 mm²	12 core	0.75 mm²	16.1 mm	296 kg/km
Wind turbine loop control cable 12 core 1.0 mm²	12 core	1.0 mm²	16.4 mm	353 kg/km
Wind turbine loop control cable 12 core 1.5 mm²	12 core	1.5 mm²	16.9 mm	467 kg/km
Wind turbine loop control cable 12 core 2.5 mm²	12 core	2.5 mm²	17.6 mm	695 kg/km
Wind turbine loop control cable 18 core 0.75 mm²	18 core	0.75 mm²	17.4 mm	382 kg/km
Wind turbine loop control cable 18 core 1.0 mm²	18 core	1.0 mm²	17.7 mm	467 kg/km
Wind turbine loop control cable 18 core 1.5 mm²	18 core	1.5 mm²	18.2 mm	638 kg/km
Wind turbine loop control cable 18 core 2.5 mm²	18 core	2.5 mm²	18.9 mm	980 kg/km
Wind turbine loop control cable 25 core 0.75 mm²	25 core	0.75 mm²	18.7 mm	481 kg/km
Wind turbine loop control cable 25 core 1.0 mm²	25 core	1.0 mm²	19.0 mm	600 kg/km
Wind turbine loop control cable 25 core 1.5 mm²	25 core	1.5 mm²	19.5 mm	838 kg/km
Wind turbine loop control cable 25 core 2.5 mm²	25 core	2.5 mm²	20.2 mm	1313 kg/km

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
