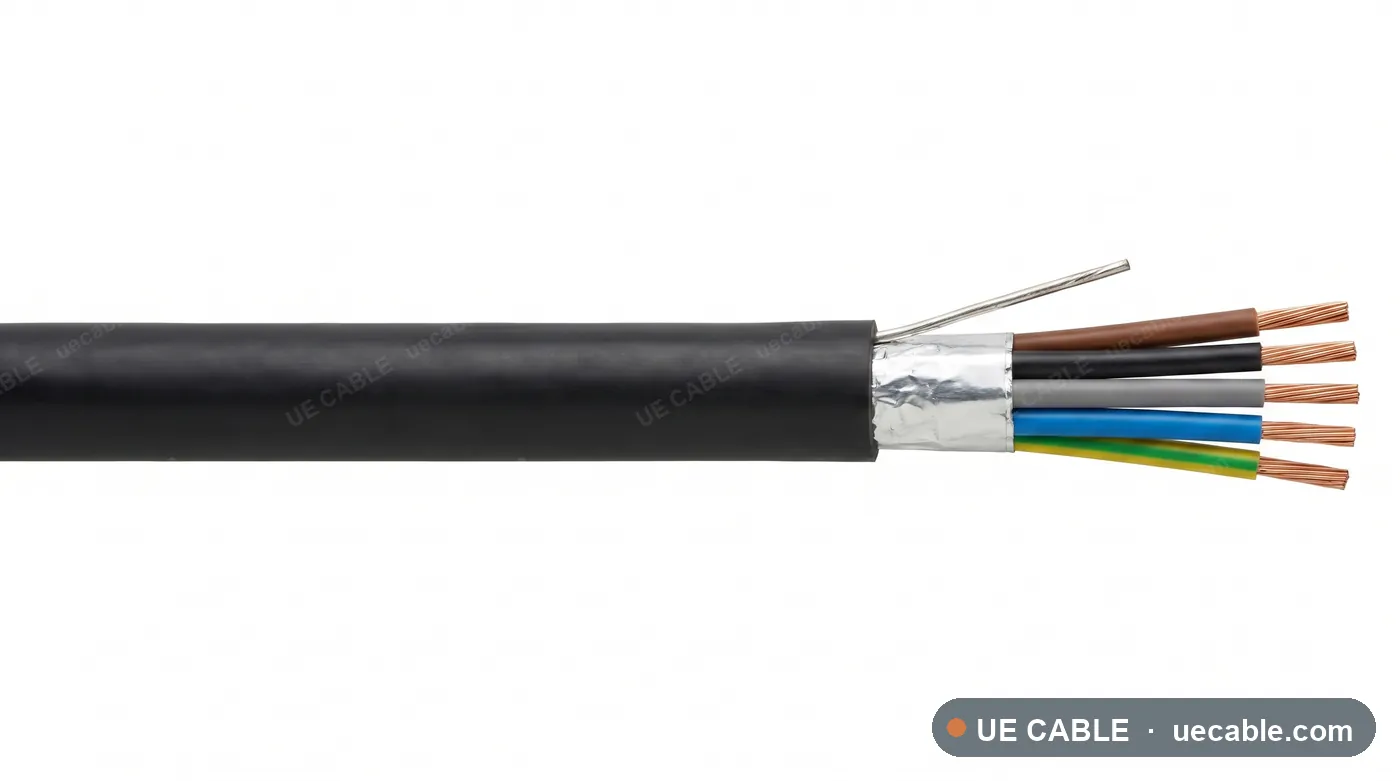

Offshore Wind Loop LSZH Cable cable construction reference

Offshore wind torsion loop cable

Offshore Wind Loop LSZH Cable

Offshore Wind Loop LSZH Cable is a motion-duty cable reference for offshore wind turbines, nacelle loops, tower loops, using class 5 tinned copper marine-grade conductor, optional emc screen or support fillers by loop design, mud, oil, uv and salt-air resistant lszh offshore jacket and wind loop torsion up to +/- 150 degrees per m guide.

Standard: IEC 60092 / offshore wind cable reference
Voltage class: 0.6/1 kV
Temperature class: -40 °C to +90 °C offshore wind route guide
Conductor: 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm²
Insulation / jacket: Mud, oil, UV and salt-air resistant LSZH offshore jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Offshore Wind Loop LSZH Cable is a motion-duty cable reference for offshore wind turbines, nacelle loops, tower loops, using class 5 tinned copper marine-grade conductor, optional emc screen or support fillers by loop design, mud, oil, uv and salt-air resistant lszh offshore jacket and wind loop torsion up to +/- 150 degrees per m guide.

Offshore wind turbines
Nacelle loops
Tower loops
Marine renewable energy

Cable Construction

Class 5 tinned copper marine-grade conductor
Short-lay or torsion-optimized core assembly
Optional EMC screen or support fillers by loop design
Mud, oil, UV and salt-air resistant LSZH offshore jacket
Wind loop torsion up to +/- 150 degrees per m guide
Salt-air, oil, mud, UV, ozone and offshore nacelle route duty

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Offshore wind loop LSZH cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

Motion dutyOffshore nacelle/tower loop torsion and vibration
Cable functionPower and control circuits in offshore turbine loop
Voltage class0.6/1 kV
Conductor constructionClass 5 tinned copper marine-grade conductor
Screen / protectionOptional EMC screen or support fillers by loop design
JacketMud, oil, UV and salt-air resistant LSZH offshore jacket
Torsion ratingWind loop torsion up to +/- 150 degrees per m guide
Temperature class-40 °C to +90 °C offshore wind route guide

Cable reference	Element design	Conductor / element size	OD guide	Weight guide
Offshore wind loop LSZH cable 4 core 10 mm²	4 core	10 mm²	18.4 mm	885 kg/km
Offshore wind loop LSZH cable 4 core 16 mm²	4 core	16 mm²	20.2 mm	1341 kg/km
Offshore wind loop LSZH cable 4 core 25 mm²	4 core	25 mm²	22.3 mm	2025 kg/km
Offshore wind loop LSZH cable 4 core 35 mm²	4 core	35 mm²	24.2 mm	2785 kg/km
Offshore wind loop LSZH cable 4 core 50 mm²	4 core	50 mm²	26.6 mm	3925 kg/km
Offshore wind loop LSZH cable 4 core 70 mm²	4 core	70 mm²	29.4 mm	5445 kg/km
Offshore wind loop LSZH cable 5 core 10 mm²	5 core	10 mm²	18.8 mm	1075 kg/km
Offshore wind loop LSZH cable 5 core 16 mm²	5 core	16 mm²	20.6 mm	1645 kg/km
Offshore wind loop LSZH cable 5 core 25 mm²	5 core	25 mm²	22.7 mm	2500 kg/km
Offshore wind loop LSZH cable 5 core 35 mm²	5 core	35 mm²	24.6 mm	3450 kg/km
Offshore wind loop LSZH cable 5 core 50 mm²	5 core	50 mm²	27.1 mm	4875 kg/km
Offshore wind loop LSZH cable 5 core 70 mm²	5 core	70 mm²	29.8 mm	6775 kg/km

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
