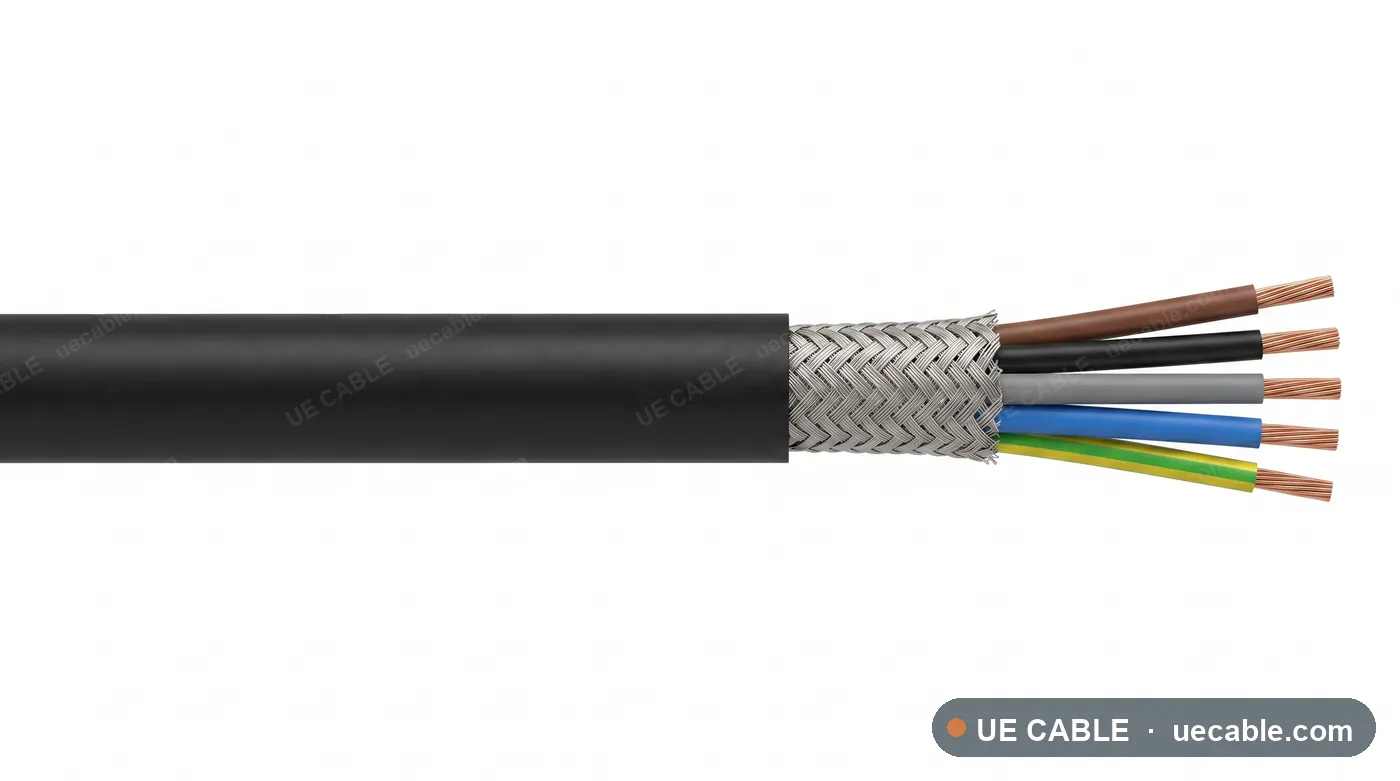

Wind Turbine Nacelle Control Sensor Cable cable construction reference

Nacelle control and sensor cable

Wind Turbine Nacelle Control Sensor Cable

Wind Turbine Nacelle Control Sensor Cable is a motion-duty cable reference for nacelle sensors, pitch controls, brake systems, using fine-stranded bare copper control conductor, foil or braid screen option for sensor signals, oil and coolant resistant pur / lszh jacket and flexible nacelle vibration and service-loop guide.

Standard
Wind turbine control cable reference
Voltage class
300/500 V
Temperature class
-40 °C to +90 °C nacelle route guide
Conductor
0.5 mm², 0.75 mm², 1.0 mm²
Insulation / jacket
Oil and coolant resistant PUR / LSZH jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Wind Turbine Nacelle Control Sensor Cable is a motion-duty cable reference for nacelle sensors, pitch controls, brake systems, using fine-stranded bare copper control conductor, foil or braid screen option for sensor signals, oil and coolant resistant pur / lszh jacket and flexible nacelle vibration and service-loop guide.

  • Nacelle sensors
  • Pitch controls
  • Brake systems
  • Condition monitoring

Cable Construction

  • Fine-stranded bare copper control conductor
  • Short-lay or torsion-optimized core assembly
  • Foil or braid screen option for sensor signals
  • Oil and coolant resistant PUR / LSZH jacket
  • Flexible nacelle vibration and service-loop guide
  • Oil, coolant, vibration and confined nacelle routing duty

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Wind turbine nacelle control sensor cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

  • Motion dutyNacelle vibration and flexible equipment wiring
  • Cable functionControl, sensor and low-voltage signal circuits
  • Voltage class300/500 V
  • Conductor constructionFine-stranded bare copper control conductor
  • Screen / protectionFoil or braid screen option for sensor signals
  • JacketOil and coolant resistant PUR / LSZH jacket
  • Torsion ratingFlexible nacelle vibration and service-loop guide
  • Temperature class-40 °C to +90 °C nacelle route guide
Cable referenceElement designConductor / element sizeOD guideWeight guide
Wind turbine nacelle control sensor cable 4 core 0.5 mm²4 core0.5 mm²13.3 mm163 kg/km
Wind turbine nacelle control sensor cable 4 core 0.75 mm²4 core0.75 mm²13.6 mm182 kg/km
Wind turbine nacelle control sensor cable 4 core 1.0 mm²4 core1.0 mm²13.9 mm201 kg/km
Wind turbine nacelle control sensor cable 8 core 0.5 mm²8 core0.5 mm²14.7 mm201 kg/km
Wind turbine nacelle control sensor cable 8 core 0.75 mm²8 core0.75 mm²15.0 mm239 kg/km
Wind turbine nacelle control sensor cable 8 core 1.0 mm²8 core1.0 mm²15.3 mm277 kg/km
Wind turbine nacelle control sensor cable 12 core 0.5 mm²12 core0.5 mm²15.8 mm239 kg/km
Wind turbine nacelle control sensor cable 12 core 0.75 mm²12 core0.75 mm²16.1 mm296 kg/km
Wind turbine nacelle control sensor cable 12 core 1.0 mm²12 core1.0 mm²16.4 mm353 kg/km
Wind turbine nacelle control sensor cable 16 core 0.5 mm²16 core0.5 mm²16.7 mm277 kg/km
Wind turbine nacelle control sensor cable 16 core 0.75 mm²16 core0.75 mm²17.0 mm353 kg/km
Wind turbine nacelle control sensor cable 16 core 1.0 mm²16 core1.0 mm²17.3 mm429 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
