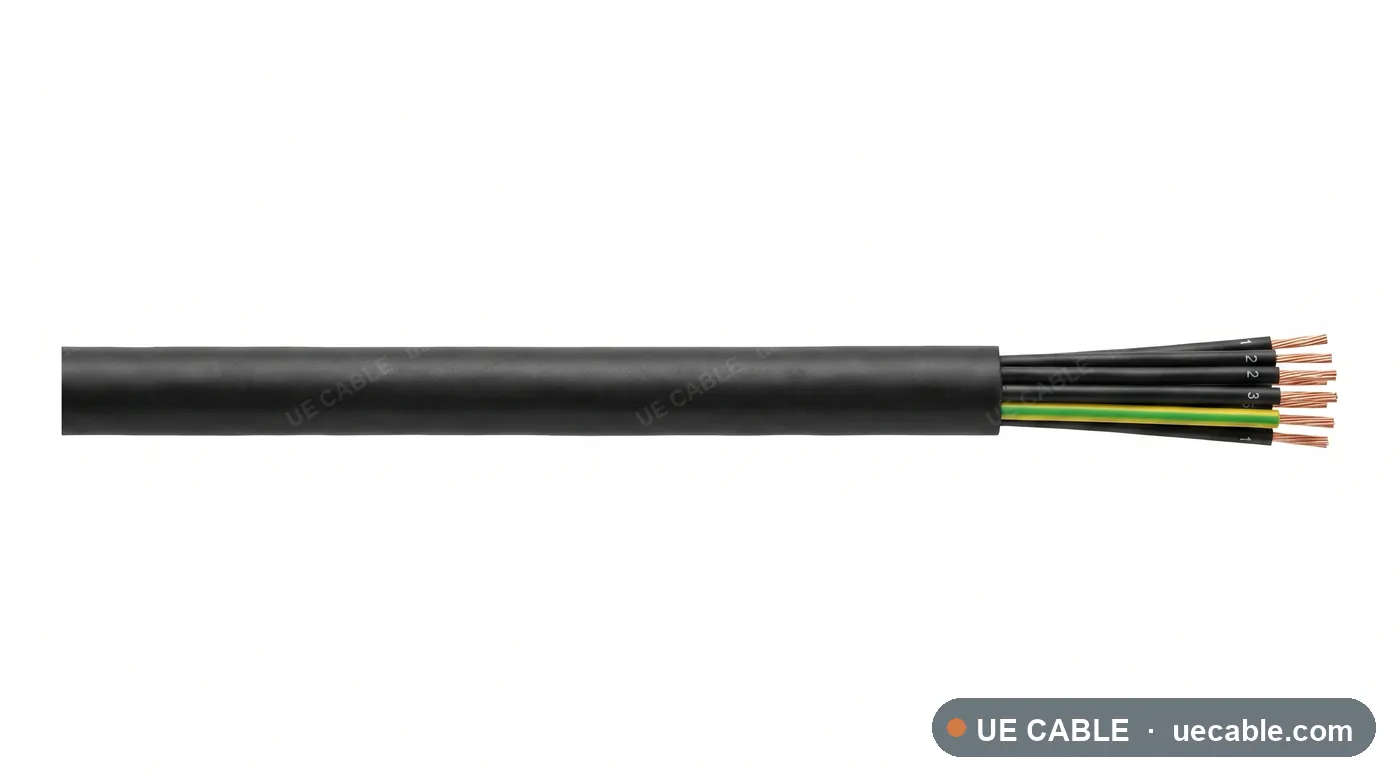

Wind Turbine Torsion Loop Cable cable construction reference

Wind turbine loop torsion cable

Wind Turbine Torsion Loop Cable

Wind Turbine Torsion Loop Cable is a motion-duty cable reference for wind turbine nacelle loops, tower yaw loops, converter auxiliary circuits, using class 5 flexible bare copper conductor, optional emc screen or support fillers by loop design, cold, oil and uv resistant hffr / lszh jacket and wind loop torsion up to +/- 150 degrees per m guide.

Standard: EN 50525 / wind turbine torsion reference
Voltage class: 0.6/1 kV
Temperature class: -40 °C to +90 °C wind turbine route guide
Conductor: 2.5 mm², 4 mm², 6 mm², 10 mm², 16 mm², 25 mm²
Insulation / jacket: Cold, oil and UV resistant HFFR / LSZH jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Wind Turbine Torsion Loop Cable is a motion-duty cable reference for wind turbine nacelle loops, tower yaw loops, converter auxiliary circuits, using class 5 flexible bare copper conductor, optional emc screen or support fillers by loop design, cold, oil and uv resistant hffr / lszh jacket and wind loop torsion up to +/- 150 degrees per m guide.

Wind turbine nacelle loops
Tower yaw loops
Converter auxiliary circuits
Wind power control

Cable Construction

Class 5 flexible bare copper conductor
Short-lay or torsion-optimized core assembly
Optional EMC screen or support fillers by loop design
Cold, oil and UV resistant HFFR / LSZH jacket
Wind loop torsion up to +/- 150 degrees per m guide
Oil, UV, ozone, cold, salt-air and nacelle-loop route duty

Specifications

Select a cable size.

Each row below is a complete specification sheet — 18 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Wind turbine torsion loop cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

Motion dutyWind turbine nacelle loop torsion
Cable functionPower and control circuits in turbine loop
Voltage class0.6/1 kV
Conductor constructionClass 5 flexible bare copper conductor
Screen / protectionOptional EMC screen or support fillers by loop design
JacketCold, oil and UV resistant HFFR / LSZH jacket
Torsion ratingWind loop torsion up to +/- 150 degrees per m guide
Temperature class-40 °C to +90 °C wind turbine route guide

Cable reference	Element design	Conductor / element size	OD guide	Weight guide
Wind turbine torsion loop cable 4 core 2.5 mm²	4 core	2.5 mm²	15.1 mm	315 kg/km
Wind turbine torsion loop cable 4 core 4 mm²	4 core	4 mm²	16.0 mm	429 kg/km
Wind turbine torsion loop cable 4 core 6 mm²	4 core	6 mm²	16.9 mm	581 kg/km
Wind turbine torsion loop cable 4 core 10 mm²	4 core	10 mm²	18.4 mm	885 kg/km
Wind turbine torsion loop cable 4 core 16 mm²	4 core	16 mm²	20.2 mm	1341 kg/km
Wind turbine torsion loop cable 4 core 25 mm²	4 core	25 mm²	22.3 mm	2025 kg/km
Wind turbine torsion loop cable 5 core 2.5 mm²	5 core	2.5 mm²	15.5 mm	363 kg/km
Wind turbine torsion loop cable 5 core 4 mm²	5 core	4 mm²	16.4 mm	505 kg/km
Wind turbine torsion loop cable 5 core 6 mm²	5 core	6 mm²	17.3 mm	695 kg/km
Wind turbine torsion loop cable 5 core 10 mm²	5 core	10 mm²	18.8 mm	1075 kg/km
Wind turbine torsion loop cable 5 core 16 mm²	5 core	16 mm²	20.6 mm	1645 kg/km
Wind turbine torsion loop cable 5 core 25 mm²	5 core	25 mm²	22.7 mm	2500 kg/km
Wind turbine torsion loop cable 7 core 2.5 mm²	7 core	2.5 mm²	16.2 mm	458 kg/km
Wind turbine torsion loop cable 7 core 4 mm²	7 core	4 mm²	17.1 mm	657 kg/km
Wind turbine torsion loop cable 7 core 6 mm²	7 core	6 mm²	18.0 mm	923 kg/km
Wind turbine torsion loop cable 7 core 10 mm²	7 core	10 mm²	19.5 mm	1455 kg/km
Wind turbine torsion loop cable 7 core 16 mm²	7 core	16 mm²	21.3 mm	2253 kg/km
Wind turbine torsion loop cable 7 core 25 mm²	7 core	25 mm²	23.4 mm	3450 kg/km

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
