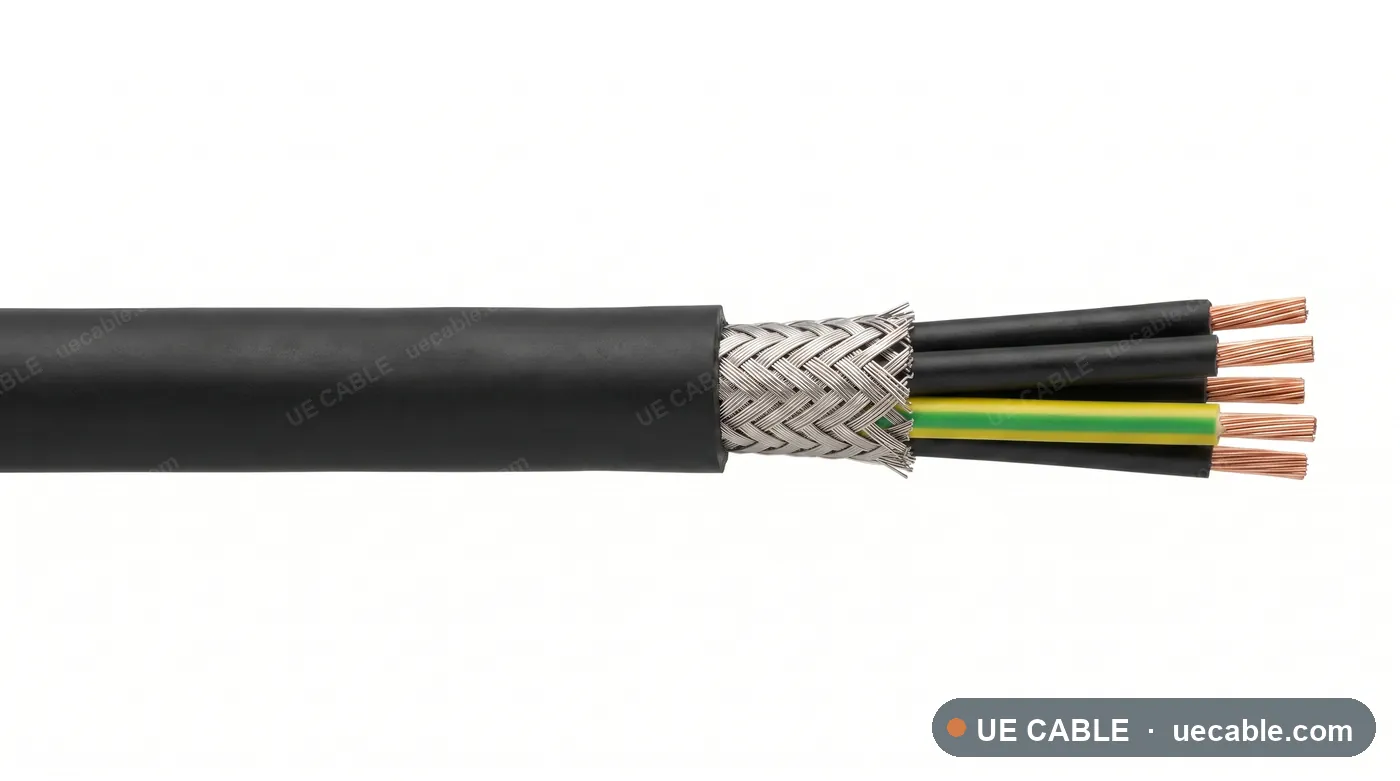

Shielded Robotic PUR Torsion Control Cable cable construction reference

EMC shielded robot torsion control cable

Shielded Robotic PUR Torsion Control Cable

Shielded Robotic PUR Torsion Control Cable is a motion-duty cable reference for robot control loops, servo auxiliary circuits, rotary automation, using class 6 fine-stranded bare copper conductor, tinned copper braid emc screen over torsion-optimized core, abrasion and oil resistant pur outer jacket and up to +/- 360 degrees per 0.5 m guide.

Standard: DIN VDE / UL AWM robot cable reference
Voltage class: 300/500 V
Temperature class: -40 °C to +80 °C moving route guide
Conductor: 0.25 mm², 0.34 mm², 0.5 mm², 0.75 mm²
Insulation / jacket: Abrasion and oil resistant PUR outer jacket

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Shielded Robotic PUR Torsion Control Cable is a motion-duty cable reference for robot control loops, servo auxiliary circuits, rotary automation, using class 6 fine-stranded bare copper conductor, tinned copper braid emc screen over torsion-optimized core, abrasion and oil resistant pur outer jacket and up to +/- 360 degrees per 0.5 m guide.

Robot control loops
Servo auxiliary circuits
Rotary automation
EMC-sensitive machine control

Cable Construction

Class 6 fine-stranded bare copper conductor
Short-lay or torsion-optimized core assembly
Tinned copper braid EMC screen over torsion-optimized core
Abrasion and oil resistant PUR outer jacket
Up to +/- 360 degrees per 0.5 m guide
Oil, abrasion, coolant and EMC-controlled robot cell routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Shielded robotic PUR torsion control cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

Motion dutyContinuous robotic torsion with EMC-sensitive control signals
Cable functionShielded control and encoder auxiliary circuits
Voltage class300/500 V
Conductor constructionClass 6 fine-stranded bare copper conductor
Screen / protectionTinned copper braid EMC screen over torsion-optimized core
JacketAbrasion and oil resistant PUR outer jacket
Torsion ratingUp to +/- 360 degrees per 0.5 m guide
Temperature class-40 °C to +80 °C moving route guide

Cable reference	Element design	Conductor / element size	OD guide	Weight guide
Shielded robotic PUR torsion control cable 4 core 0.25 mm²	4 core	0.25 mm²	12.8 mm	144 kg/km
Shielded robotic PUR torsion control cable 4 core 0.34 mm²	4 core	0.34 mm²	13.0 mm	151 kg/km
Shielded robotic PUR torsion control cable 4 core 0.5 mm²	4 core	0.5 mm²	13.3 mm	163 kg/km
Shielded robotic PUR torsion control cable 4 core 0.75 mm²	4 core	0.75 mm²	13.6 mm	182 kg/km
Shielded robotic PUR torsion control cable 7 core 0.25 mm²	7 core	0.25 mm²	13.9 mm	158 kg/km
Shielded robotic PUR torsion control cable 7 core 0.34 mm²	7 core	0.34 mm²	14.1 mm	170 kg/km
Shielded robotic PUR torsion control cable 7 core 0.5 mm²	7 core	0.5 mm²	14.4 mm	192 kg/km
Shielded robotic PUR torsion control cable 7 core 0.75 mm²	7 core	0.75 mm²	14.7 mm	225 kg/km
Shielded robotic PUR torsion control cable 12 core 0.25 mm²	12 core	0.25 mm²	15.3 mm	182 kg/km
Shielded robotic PUR torsion control cable 12 core 0.34 mm²	12 core	0.34 mm²	15.5 mm	203 kg/km
Shielded robotic PUR torsion control cable 12 core 0.5 mm²	12 core	0.5 mm²	15.8 mm	239 kg/km
Shielded robotic PUR torsion control cable 12 core 0.75 mm²	12 core	0.75 mm²	16.1 mm	296 kg/km

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
