Robot Ethernet torsion cable

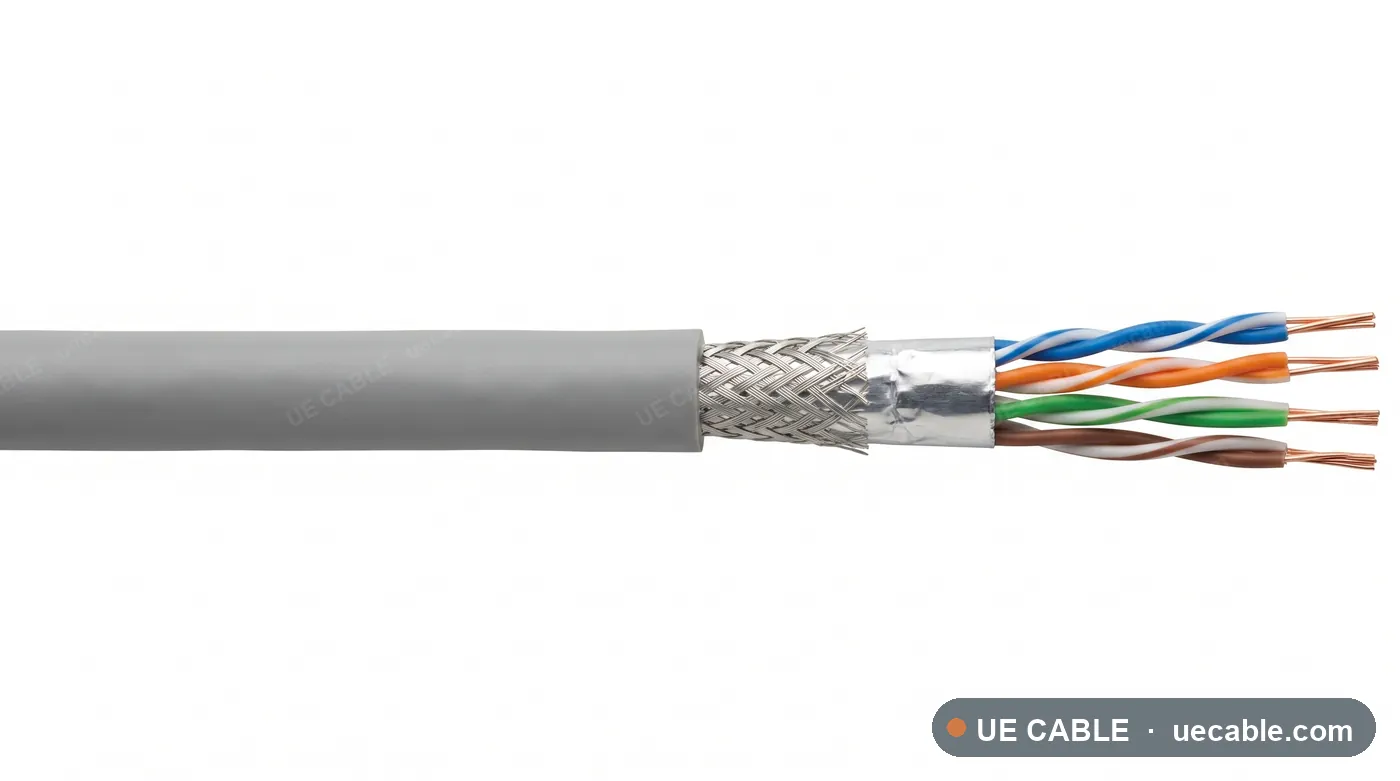

Torsion Industrial Ethernet Cable is a motion-duty cable reference for robot ethernet, profinet torsion links, machine networks, using fine-stranded tinned copper ethernet conductor, pair screen plus overall braid emc screen, industrial pur ethernet jacket and up to +/- 180 degrees per 1 m guide.
Cable Type Data
Torsion Industrial Ethernet Cable is a motion-duty cable reference for robot ethernet, profinet torsion links, machine networks, using fine-stranded tinned copper ethernet conductor, pair screen plus overall braid emc screen, industrial pur ethernet jacket and up to +/- 180 degrees per 1 m guide.
Specifications
Each row below is a complete specification sheet — 4 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact torsion or wind-turbine cable cable specification sheet.
| Cable reference | Element design | Conductor / element size | OD guide | Weight guide |
|---|---|---|---|---|
| Torsion industrial Ethernet cable 2 pair AWG26 | 2 pair | AWG26 | 22.5 mm | 2101 kg/km |
| Torsion industrial Ethernet cable 2 pair AWG24 | 2 pair | AWG24 | 22.1 mm | 1949 kg/km |
| Torsion industrial Ethernet cable 4 pair AWG26 | 4 pair | AWG26 | 23.9 mm | 4077 kg/km |
| Torsion industrial Ethernet cable 4 pair AWG24 | 4 pair | AWG24 | 23.5 mm | 3773 kg/km |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
