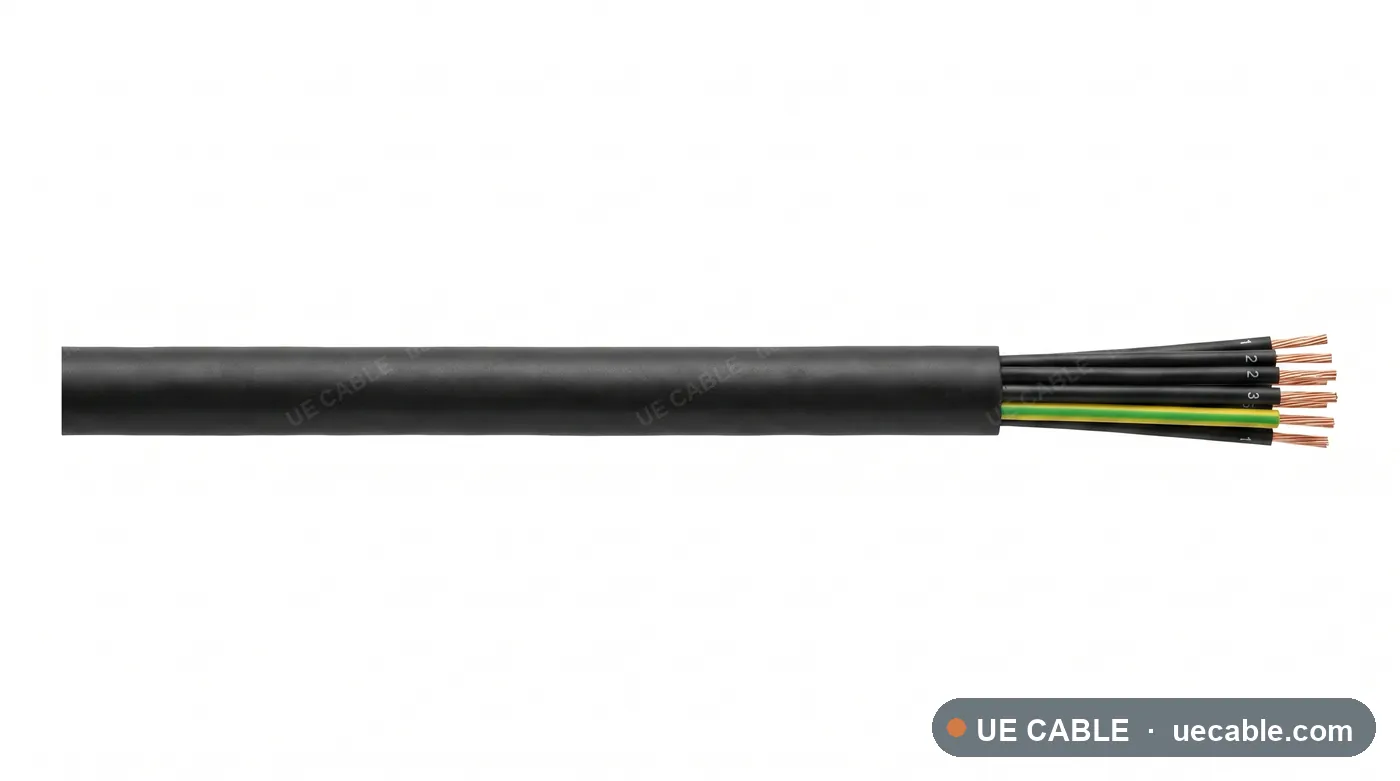

Robotic PUR Torsion Control Cable cable construction reference

Robot torsion control cable

Robotic PUR Torsion Control Cable

Robotic PUR Torsion Control Cable is a motion-duty cable reference for industrial robots, rotary tables, machine tools, using class 6 fine-stranded bare copper conductor, screen-free torsion-optimized core assembly, abrasion and oil resistant pur outer jacket and up to +/- 360 degrees per 0.5 m guide.

Standard
DIN VDE / UL AWM robot cable reference
Voltage class
300/500 V
Temperature class
-40 °C to +80 °C moving route guide
Conductor
0.25 mm², 0.34 mm², 0.5 mm², 0.75 mm², 1.0 mm²
Insulation / jacket
Abrasion and oil resistant PUR outer jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Robotic PUR Torsion Control Cable is a motion-duty cable reference for industrial robots, rotary tables, machine tools, using class 6 fine-stranded bare copper conductor, screen-free torsion-optimized core assembly, abrasion and oil resistant pur outer jacket and up to +/- 360 degrees per 0.5 m guide.

  • Industrial robots
  • Rotary tables
  • Machine tools
  • Automated handling

Cable Construction

  • Class 6 fine-stranded bare copper conductor
  • Short-lay or torsion-optimized core assembly
  • Screen-free torsion-optimized core assembly
  • Abrasion and oil resistant PUR outer jacket
  • Up to +/- 360 degrees per 0.5 m guide
  • Oil, abrasion, coolant and weld-cell splash resistant

Specifications

Select a cable size.

Each row below is a complete specification sheet — 20 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Robotic PUR torsion control cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

  • Motion dutyContinuous robotic torsion and free movement
  • Cable functionControl and auxiliary power circuits
  • Voltage class300/500 V
  • Conductor constructionClass 6 fine-stranded bare copper conductor
  • Screen / protectionScreen-free torsion-optimized core assembly
  • JacketAbrasion and oil resistant PUR outer jacket
  • Torsion ratingUp to +/- 360 degrees per 0.5 m guide
  • Temperature class-40 °C to +80 °C moving route guide
Cable referenceElement designConductor / element sizeOD guideWeight guide
Robotic PUR torsion control cable 4 core 0.25 mm²4 core0.25 mm²12.8 mm144 kg/km
Robotic PUR torsion control cable 4 core 0.34 mm²4 core0.34 mm²13.0 mm151 kg/km
Robotic PUR torsion control cable 4 core 0.5 mm²4 core0.5 mm²13.3 mm163 kg/km
Robotic PUR torsion control cable 4 core 0.75 mm²4 core0.75 mm²13.6 mm182 kg/km
Robotic PUR torsion control cable 4 core 1.0 mm²4 core1.0 mm²13.9 mm201 kg/km
Robotic PUR torsion control cable 7 core 0.25 mm²7 core0.25 mm²13.9 mm158 kg/km
Robotic PUR torsion control cable 7 core 0.34 mm²7 core0.34 mm²14.1 mm170 kg/km
Robotic PUR torsion control cable 7 core 0.5 mm²7 core0.5 mm²14.4 mm192 kg/km
Robotic PUR torsion control cable 7 core 0.75 mm²7 core0.75 mm²14.7 mm225 kg/km
Robotic PUR torsion control cable 7 core 1.0 mm²7 core1.0 mm²15.0 mm258 kg/km
Robotic PUR torsion control cable 12 core 0.25 mm²12 core0.25 mm²15.3 mm182 kg/km
Robotic PUR torsion control cable 12 core 0.34 mm²12 core0.34 mm²15.5 mm203 kg/km
Robotic PUR torsion control cable 12 core 0.5 mm²12 core0.5 mm²15.8 mm239 kg/km
Robotic PUR torsion control cable 12 core 0.75 mm²12 core0.75 mm²16.1 mm296 kg/km
Robotic PUR torsion control cable 12 core 1.0 mm²12 core1.0 mm²16.4 mm353 kg/km
Robotic PUR torsion control cable 18 core 0.25 mm²18 core0.25 mm²16.7 mm211 kg/km
Robotic PUR torsion control cable 18 core 0.34 mm²18 core0.34 mm²16.8 mm241 kg/km
Robotic PUR torsion control cable 18 core 0.5 mm²18 core0.5 mm²17.1 mm296 kg/km
Robotic PUR torsion control cable 18 core 0.75 mm²18 core0.75 mm²17.4 mm382 kg/km
Robotic PUR torsion control cable 18 core 1.0 mm²18 core1.0 mm²17.7 mm467 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
