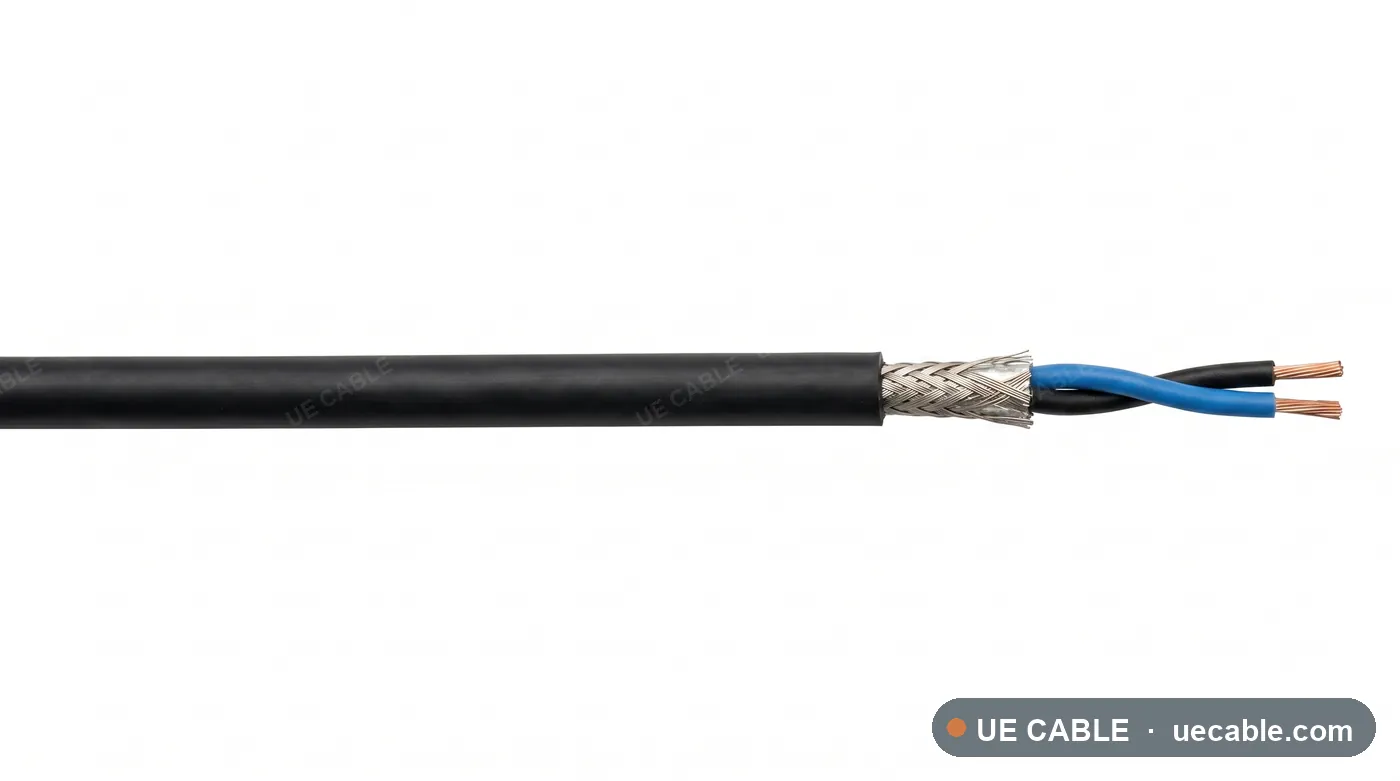

Robot Servo Torsion Cable cable construction reference

Servo power torsion cable

Robot Servo Torsion Cable

Robot Servo Torsion Cable is a motion-duty cable reference for robot servo motors, rotary axes, cnc tool changers, using class 6 fine-stranded bare copper power conductor, overall tinned copper braid emc screen, high-flex pur servo jacket and up to +/- 270 degrees per 0.5 m guide.

Standard
Servo drive torsion cable reference
Voltage class
0.6/1 kV power plus signal elements
Temperature class
-30 °C to +80 °C moving route guide
Conductor
1.5 mm², 2.5 mm², 4 mm², 6 mm²
Insulation / jacket
High-flex PUR servo jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Robot Servo Torsion Cable is a motion-duty cable reference for robot servo motors, rotary axes, cnc tool changers, using class 6 fine-stranded bare copper power conductor, overall tinned copper braid emc screen, high-flex pur servo jacket and up to +/- 270 degrees per 0.5 m guide.

  • Robot servo motors
  • Rotary axes
  • CNC tool changers
  • Dynamic drive systems

Cable Construction

  • Class 6 fine-stranded bare copper power conductor
  • Short-lay or torsion-optimized core assembly
  • Overall tinned copper braid EMC screen
  • High-flex PUR servo jacket
  • Up to +/- 270 degrees per 0.5 m guide
  • Oil, abrasion and servo-drive EMC route duty

Specifications

Select a cable size.

Each row below is a complete specification sheet — 8 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Robot servo torsion cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

  • Motion dutyRobotic torsion and servo-axis movement
  • Cable functionServo power, brake and feedback connection
  • Voltage class0.6/1 kV power plus signal elements
  • Conductor constructionClass 6 fine-stranded bare copper power conductor
  • Screen / protectionOverall tinned copper braid EMC screen
  • JacketHigh-flex PUR servo jacket
  • Torsion ratingUp to +/- 270 degrees per 0.5 m guide
  • Temperature class-30 °C to +80 °C moving route guide
Cable referenceElement designConductor / element sizeOD guideWeight guide
Robot servo torsion cable 4 core + 2 brake cores 1.5 mm²4 core + 2 brake cores1.5 mm²14.4 mm239 kg/km
Robot servo torsion cable 4 core + 2 brake cores 2.5 mm²4 core + 2 brake cores2.5 mm²15.1 mm315 kg/km
Robot servo torsion cable 4 core + 2 brake cores 4 mm²4 core + 2 brake cores4 mm²16.0 mm429 kg/km
Robot servo torsion cable 4 core + 2 brake cores 6 mm²4 core + 2 brake cores6 mm²16.9 mm581 kg/km
Robot servo torsion cable 4 core + brake + feedback pair 1.5 mm²4 core + brake + feedback pair1.5 mm²15.8 mm353 kg/km
Robot servo torsion cable 4 core + brake + feedback pair 2.5 mm²4 core + brake + feedback pair2.5 mm²16.5 mm505 kg/km
Robot servo torsion cable 4 core + brake + feedback pair 4 mm²4 core + brake + feedback pair4 mm²17.4 mm733 kg/km
Robot servo torsion cable 4 core + brake + feedback pair 6 mm²4 core + brake + feedback pair6 mm²18.4 mm1037 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
