Robot data torsion cable

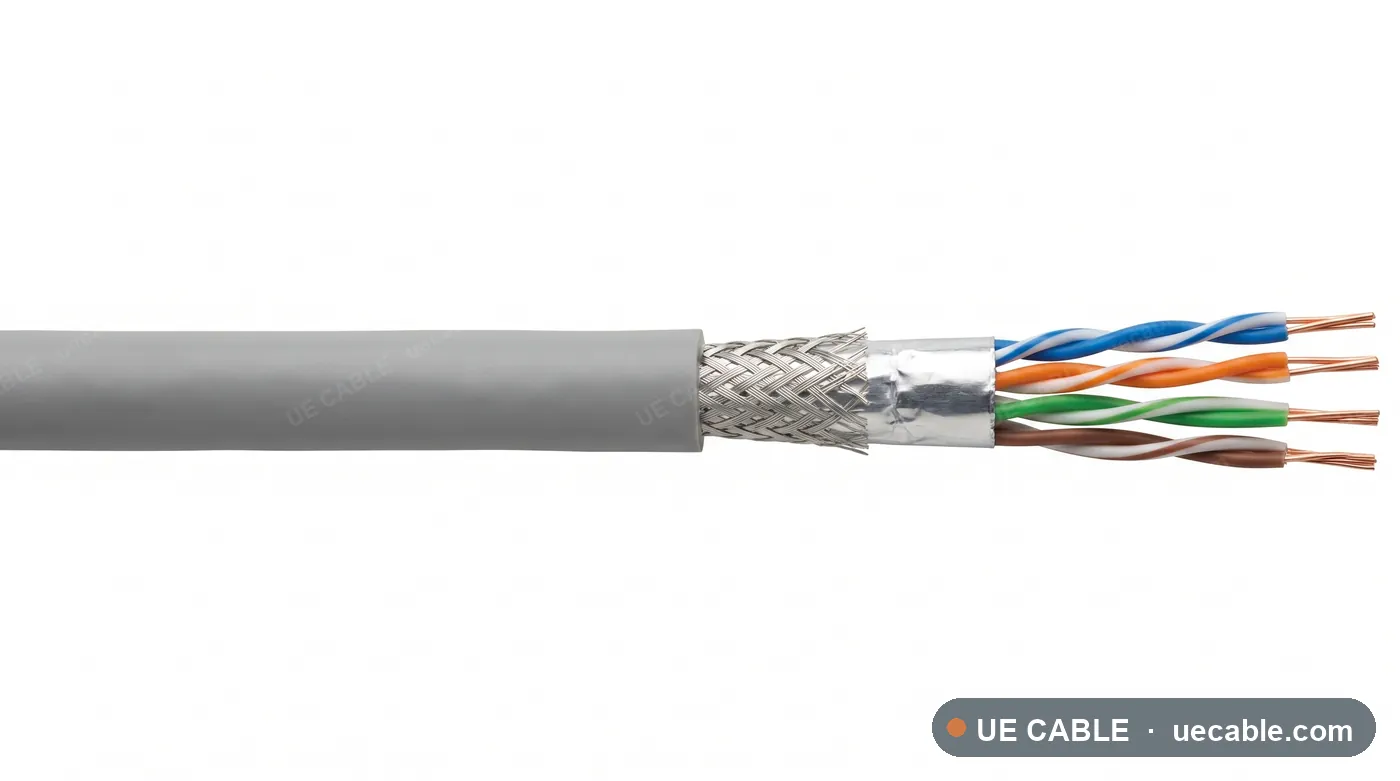

Robotic Torsion Data Cable is a motion-duty cable reference for robot sensors, rotating data links, machine vision, using fine-stranded tinned copper data conductor, foil and braid screen for flexible data transmission, low-adhesion pur outer jacket and up to +/- 360 degrees per 0.5 m guide.
Cable Type Data
Robotic Torsion Data Cable is a motion-duty cable reference for robot sensors, rotating data links, machine vision, using fine-stranded tinned copper data conductor, foil and braid screen for flexible data transmission, low-adhesion pur outer jacket and up to +/- 360 degrees per 0.5 m guide.
Specifications
Each row below is a complete specification sheet — 6 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact torsion or wind-turbine cable cable specification sheet.
| Cable reference | Element design | Conductor / element size | OD guide | Weight guide |
|---|---|---|---|---|
| Robotic torsion data cable 2 pair 0.14 mm² | 2 pair | 0.14 mm² | 12.6 mm | 136 kg/km |
| Robotic torsion data cable 2 pair 0.25 mm² | 2 pair | 0.25 mm² | 12.8 mm | 144 kg/km |
| Robotic torsion data cable 2 pair 0.34 mm² | 2 pair | 0.34 mm² | 13.0 mm | 151 kg/km |
| Robotic torsion data cable 4 pair 0.14 mm² | 4 pair | 0.14 mm² | 14.0 mm | 146 kg/km |
| Robotic torsion data cable 4 pair 0.25 mm² | 4 pair | 0.25 mm² | 14.3 mm | 163 kg/km |
| Robotic torsion data cable 4 pair 0.34 mm² | 4 pair | 0.34 mm² | 14.4 mm | 177 kg/km |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
