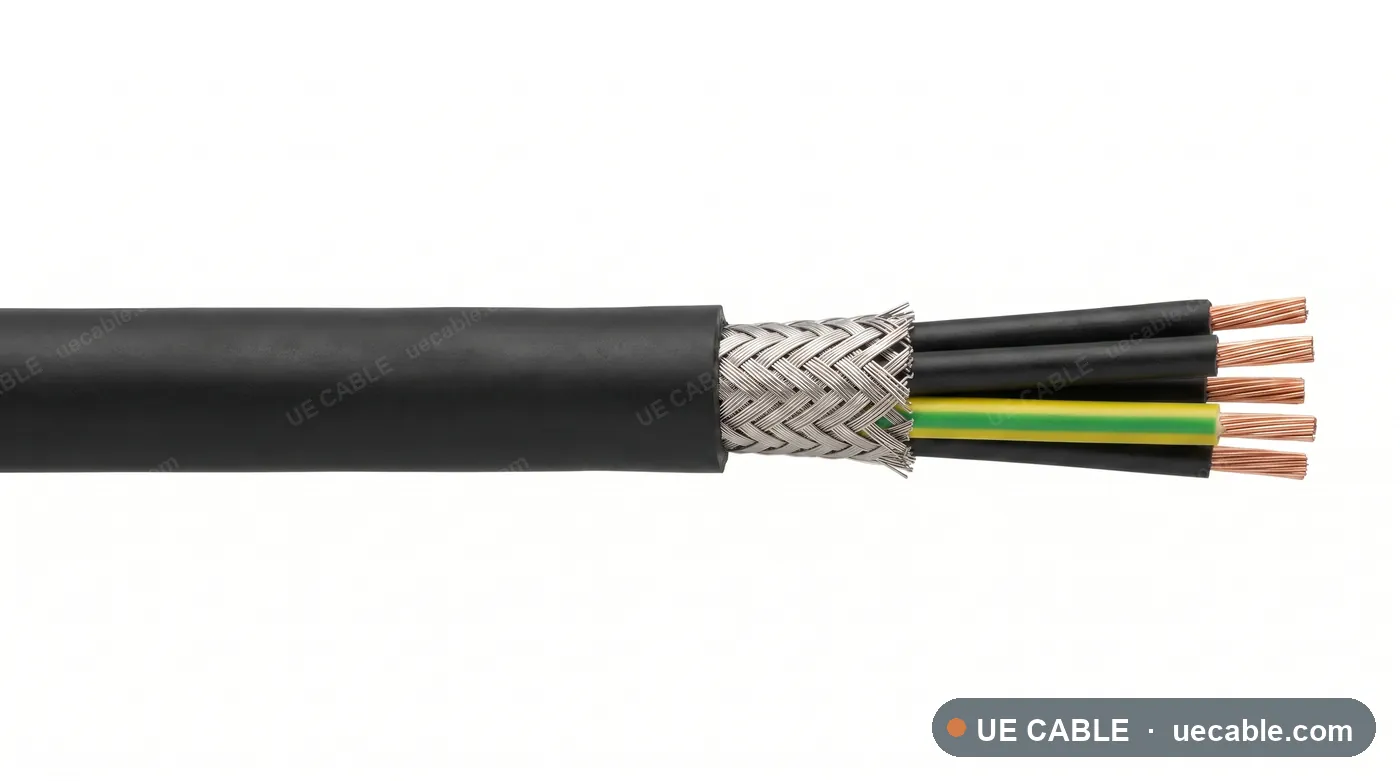

Cleanroom TPE Torsion Cable cable construction reference

Cleanroom torsion cable

Cleanroom TPE Torsion Cable

Cleanroom TPE Torsion Cable is a motion-duty cable reference for cleanroom robots, semiconductor handling, laboratory automation, using fine-stranded tinned copper conductor, optional foil/braid screen with low-particle construction, cleanroom-compatible tpe outer jacket and up to +/- 360 degrees per 0.5 m guide.

Standard
Cleanroom robot cable reference
Voltage class
300 V signal/control circuit
Temperature class
-20 °C to +80 °C cleanroom route guide
Conductor
0.25 mm², 0.34 mm²
Insulation / jacket
Cleanroom-compatible TPE outer jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Cleanroom TPE Torsion Cable is a motion-duty cable reference for cleanroom robots, semiconductor handling, laboratory automation, using fine-stranded tinned copper conductor, optional foil/braid screen with low-particle construction, cleanroom-compatible tpe outer jacket and up to +/- 360 degrees per 0.5 m guide.

  • Cleanroom robots
  • Semiconductor handling
  • Laboratory automation
  • Precision assembly

Cable Construction

  • Fine-stranded tinned copper conductor
  • Short-lay or torsion-optimized core assembly
  • Optional foil/braid screen with low-particle construction
  • Cleanroom-compatible TPE outer jacket
  • Up to +/- 360 degrees per 0.5 m guide
  • Low-particle, abrasion and disinfectant-resistant route duty

Specifications

Select a cable size.

Each row below is a complete specification sheet — 6 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Cleanroom TPE torsion cable motion-duty references

Each row is an exact torsion or wind-turbine cable cable specification sheet.

  • Motion dutyLow-particle torsion and bending in clean automation
  • Cable functionControl and signal circuits
  • Voltage class300 V signal/control circuit
  • Conductor constructionFine-stranded tinned copper conductor
  • Screen / protectionOptional foil/braid screen with low-particle construction
  • JacketCleanroom-compatible TPE outer jacket
  • Torsion ratingUp to +/- 360 degrees per 0.5 m guide
  • Temperature class-20 °C to +80 °C cleanroom route guide
Cable referenceElement designConductor / element sizeOD guideWeight guide
Cleanroom TPE torsion cable 4 core 0.25 mm²4 core0.25 mm²12.8 mm144 kg/km
Cleanroom TPE torsion cable 4 core 0.34 mm²4 core0.34 mm²13.0 mm151 kg/km
Cleanroom TPE torsion cable 8 core 0.25 mm²8 core0.25 mm²14.3 mm163 kg/km
Cleanroom TPE torsion cable 8 core 0.34 mm²8 core0.34 mm²14.4 mm177 kg/km
Cleanroom TPE torsion cable 12 core 0.25 mm²12 core0.25 mm²15.3 mm182 kg/km
Cleanroom TPE torsion cable 12 core 0.34 mm²12 core0.34 mm²15.5 mm203 kg/km
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
