Silicone insulated cable
Silicone cables for heat-resistant flexible wiring, single-core equipment leads, multicore control circuits, screened control routes, glass-braided protection, heater leads and continuous-flex high-temperature machinery.
Silicone cables for heat-resistant flexible wiring, single-core equipment leads, multicore control circuits, screened control routes, glass-braided protection, heater leads and continuous-flex high-temperature machinery.
| Temperature range | -60 °C to +180 °C common silicone cable service, with selected short-time higher temperature references |
|---|---|
| Voltage rating | 300/500 V, 0.6/1 kV, 600 V and 1000 V silicone cable references |
| Conductor | Class 1 solid, Class 5 flexible, fine stranded or extra fine tinned copper conductor |
| Insulation | Silicone rubber insulation |
| Protection | Glass braid, steel braid, tinned copper braid screen or silicone outer sheath |
| Core design | Single-core wire, multicore silicone control cable and continuous-flex silicone cable references |
| Key data | Core design, conductor size, voltage, max DC resistance at 20 °C, OD guide and cable weight |
| Applications | Lighting, heaters, ovens, motors, appliances, machine controls and heat-exposed equipment |
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
Silicone cable pages are organised by duty, conductor class, voltage, protection, temperature class and whether the route is fixed, flexible, screened, glass-braided, protected or continuous-flex. Open a cable page to compare exact core design, conductor size, resistance, OD and weight.
Solid silicone single-core wire
SIA Solid Silicone Wire is a silicone cable construction for fixed equipment wiring, ovens, refrigeration, using class 1 solid tinned copper conductor, silicone rubber insulation and silicone rubber covering outer sheath.
View technical data →
Flexible silicone single-core wire
SIAF Flexible Silicone Wire is a silicone cable construction for flexible equipment wiring, processing equipment, furnaces, using class 5 flexible tinned copper conductor, flexible silicone rubber insulation and flexible silicone rubber covering outer sheath.
View technical data →
Glass braided silicone single-core cable

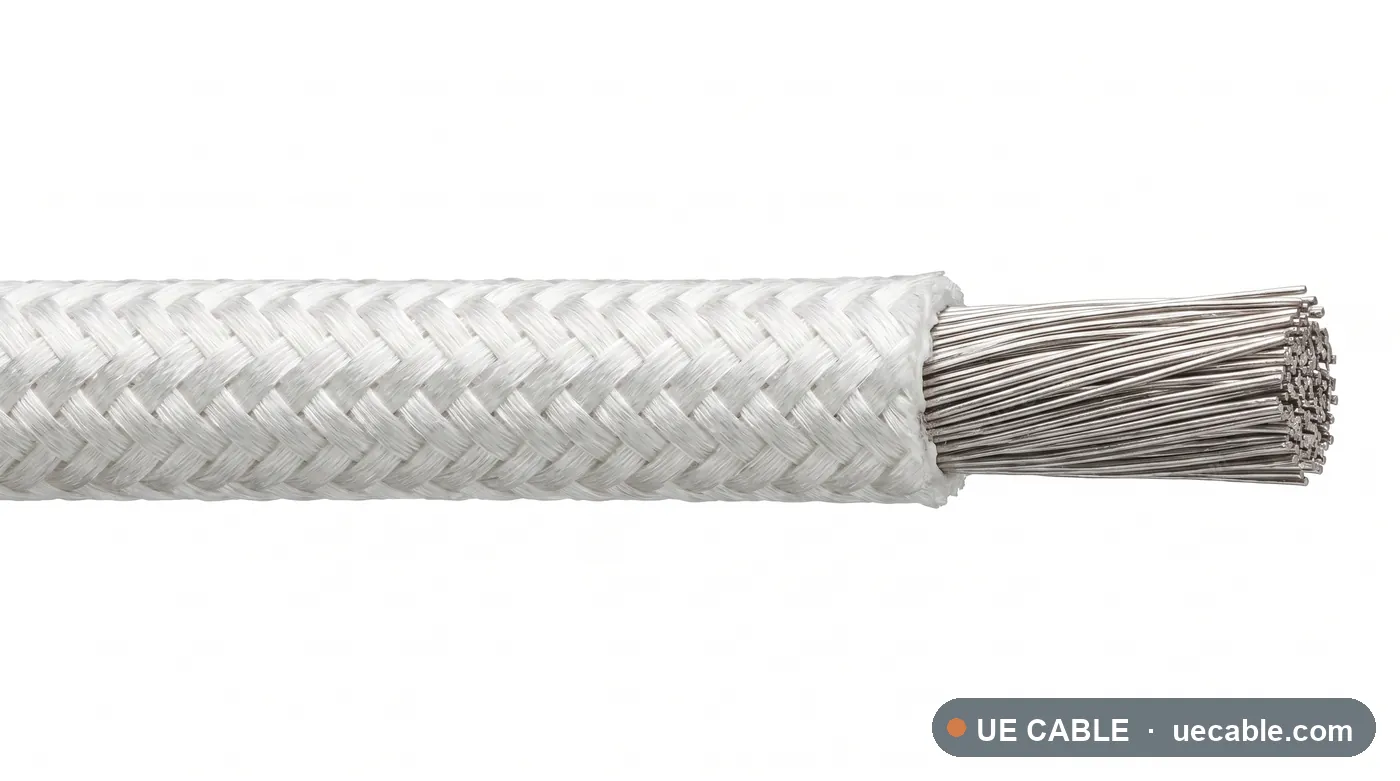

SIAF-GL Glass Braided Silicone Cable is a silicone cable construction for furnace wiring, heater leads, lighting, using class 5 flexible tinned copper conductor, silicone rubber insulation, fibre glass braid protection and fibre glass braid outer covering outer sheath.
View technical data →
Fine-stranded silicone equipment wire
SIF Silicone Fine Wire is a silicone cable construction for appliances, lighting, heaters, using fine stranded tinned copper conductor, silicone rubber insulation and silicone rubber finish outer sheath.
View technical data →SIHF Multicore Silicone Rubber Cable is a silicone cable construction for machine construction, ovens, plant equipment, using class 5 tinned copper conductor, silicone rubber core insulation and silicone rubber outer sheath.
View technical data →SIHFC Screened Silicone Rubber Cable is a silicone cable construction for furnace controls, sensors, machine tools, using class 5 tinned copper conductor, silicone rubber core insulation, tinned copper wire braid screen and silicone rubber outer sheath.
View technical data →SIHFP Protected Silicone Rubber Cable is a silicone cable construction for steel plants, furnaces, glass processing, using class 5 tinned copper conductor, silicone rubber core insulation, galvanised steel or fibre glass braid protection and silicone rubber inner sheath with braid protection.
View technical data →Silicone Heater Lead Cable is a silicone cable construction for heater leads, appliances, ovens, using tinned copper flexible conductor, silicone rubber heater-lead insulation and silicone rubber heater-lead covering outer sheath.
View technical data →SC 600 HDTR Silicone Control Cable is a silicone cable construction for industrial controls, cleanrooms, heated machinery, using stranded tinned copper conductor, silicone rubber core insulation and silicone rubber outer jacket.
View technical data →S180 °C HT Shielded Continuous Flex Silicone Cable is a silicone cable construction for cable chains, heated automation, high-temperature robotics, using extra fine tinned copper conductor, notch-resistant silicone core insulation, tinned copper braid screen and high-flex silicone outer sheath.
View technical data →FAQ
Silicone cables for heat-resistant flexible wiring, single-core equipment leads, multicore control circuits, screened control routes, glass-braided protection, heater leads and continuous-flex high-temperature machinery. They are built to EN 50525-2-41, UL 758, IEC 60228, IEC 60332-1.
UE Cable silicone cables are manufactured and tested to EN 50525-2-41, UL 758, IEC 60228, IEC 60332-1. The exact standard for each construction is stated on its specification sheet.
10 construction families are catalogued under silicone cables, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
