Screened multicore silicone cable

SIHFC Screened Silicone Rubber Cable

SIHFC Screened Silicone Rubber Cable is a silicone cable construction for furnace controls, sensors, machine tools, using class 5 tinned copper conductor, silicone rubber core insulation, tinned copper wire braid screen and silicone rubber outer sheath.

Standard: VDE / IEC silicone cable reference
Voltage class: 300/500 V
Temperature class: -60 °C to +180 °C screened control service
Conductor: Class 5 tinned copper conductor
Insulation / jacket: Silicone rubber outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Furnace controls
Sensors
Machine tools
Process control

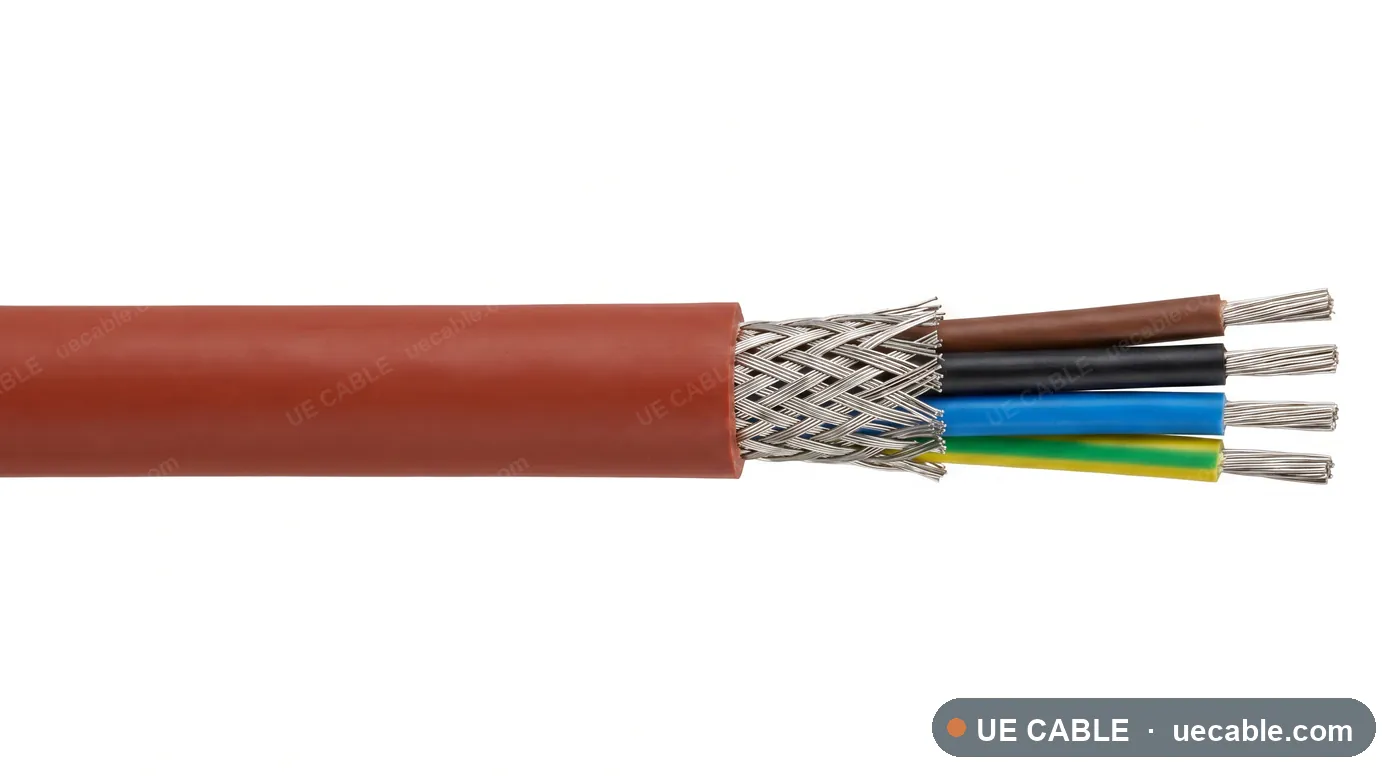

Cable Construction

Class 5 tinned copper conductor
Silicone rubber core insulation
Tinned copper wire braid screen
Silicone rubber outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 30 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

SIHFC screened silicone cable references

Each row is an exact silicone cable cable specification sheet. Shared silicone compound, temperature class and protection data are listed above.

Silicone cable dutyScreened silicone control cable
Voltage class300/500 V

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	OD guide	Cable weight
SIHFC 300/500 V Screened silicone control cable 2 core 0.5 mm²	2 core	0.5 mm²	37.1 Ω/km	9.4 mm	0.28 kg/m
SIHFC 300/500 V Screened silicone control cable 2 core 0.75 mm²	2 core	0.75 mm²	24.7 Ω/km	9.7 mm	0.29 kg/m
SIHFC 300/500 V Screened silicone control cable 2 core 1.0 mm²	2 core	1.0 mm²	18.5 Ω/km	9.9 mm	0.29 kg/m
SIHFC 300/500 V Screened silicone control cable 2 core 1.5 mm²	2 core	1.5 mm²	12.7 Ω/km	10.2 mm	0.30 kg/m
SIHFC 300/500 V Screened silicone control cable 2 core 2.5 mm²	2 core	2.5 mm²	7.6 Ω/km	10.7 mm	0.33 kg/m
SIHFC 300/500 V Screened silicone control cable 3 core 0.5 mm²	3 core	0.5 mm²	37.1 Ω/km	10.1 mm	0.29 kg/m
SIHFC 300/500 V Screened silicone control cable 3 core 0.75 mm²	3 core	0.75 mm²	24.7 Ω/km	10.3 mm	0.29 kg/m
SIHFC 300/500 V Screened silicone control cable 3 core 1.0 mm²	3 core	1.0 mm²	18.5 Ω/km	10.5 mm	0.30 kg/m
SIHFC 300/500 V Screened silicone control cable 3 core 1.5 mm²	3 core	1.5 mm²	12.7 Ω/km	10.9 mm	0.32 kg/m
SIHFC 300/500 V Screened silicone control cable 3 core 2.5 mm²	3 core	2.5 mm²	7.6 Ω/km	11.4 mm	0.35 kg/m
SIHFC 300/500 V Screened silicone control cable 4 core 0.5 mm²	4 core	0.5 mm²	37.1 Ω/km	10.7 mm	0.29 kg/m
SIHFC 300/500 V Screened silicone control cable 4 core 0.75 mm²	4 core	0.75 mm²	24.7 Ω/km	10.9 mm	0.30 kg/m
SIHFC 300/500 V Screened silicone control cable 4 core 1.0 mm²	4 core	1.0 mm²	18.5 Ω/km	11.1 mm	0.31 kg/m
SIHFC 300/500 V Screened silicone control cable 4 core 1.5 mm²	4 core	1.5 mm²	12.7 Ω/km	11.4 mm	0.34 kg/m
SIHFC 300/500 V Screened silicone control cable 4 core 2.5 mm²	4 core	2.5 mm²	7.6 Ω/km	12.0 mm	0.38 kg/m
SIHFC 300/500 V Screened silicone control cable 5 core 0.5 mm²	5 core	0.5 mm²	37.1 Ω/km	11.2 mm	0.30 kg/m
SIHFC 300/500 V Screened silicone control cable 5 core 0.75 mm²	5 core	0.75 mm²	24.7 Ω/km	11.4 mm	0.31 kg/m
SIHFC 300/500 V Screened silicone control cable 5 core 1.0 mm²	5 core	1.0 mm²	18.5 Ω/km	11.6 mm	0.33 kg/m
SIHFC 300/500 V Screened silicone control cable 5 core 1.5 mm²	5 core	1.5 mm²	12.7 Ω/km	11.9 mm	0.35 kg/m
SIHFC 300/500 V Screened silicone control cable 5 core 2.5 mm²	5 core	2.5 mm²	7.6 Ω/km	12.5 mm	0.41 kg/m
SIHFC 300/500 V Screened silicone control cable 7 core 0.5 mm²	7 core	0.5 mm²	37.1 Ω/km	12.0 mm	0.31 kg/m
SIHFC 300/500 V Screened silicone control cable 7 core 0.75 mm²	7 core	0.75 mm²	24.7 Ω/km	12.3 mm	0.33 kg/m
SIHFC 300/500 V Screened silicone control cable 7 core 1.0 mm²	7 core	1.0 mm²	18.5 Ω/km	12.5 mm	0.35 kg/m
SIHFC 300/500 V Screened silicone control cable 7 core 1.5 mm²	7 core	1.5 mm²	12.7 Ω/km	12.8 mm	0.39 kg/m
SIHFC 300/500 V Screened silicone control cable 7 core 2.5 mm²	7 core	2.5 mm²	7.6 Ω/km	13.3 mm	0.46 kg/m
SIHFC 300/500 V Screened silicone control cable 12 core 0.5 mm²	12 core	0.5 mm²	37.1 Ω/km	13.7 mm	0.34 kg/m
SIHFC 300/500 V Screened silicone control cable 12 core 0.75 mm²	12 core	0.75 mm²	24.7 Ω/km	14.0 mm	0.37 kg/m
SIHFC 300/500 V Screened silicone control cable 12 core 1.0 mm²	12 core	1.0 mm²	18.5 Ω/km	14.2 mm	0.40 kg/m
SIHFC 300/500 V Screened silicone control cable 12 core 1.5 mm²	12 core	1.5 mm²	12.7 Ω/km	14.5 mm	0.47 kg/m
SIHFC 300/500 V Screened silicone control cable 12 core 2.5 mm²	12 core	2.5 mm²	7.6 Ω/km	15.0 mm	0.60 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
