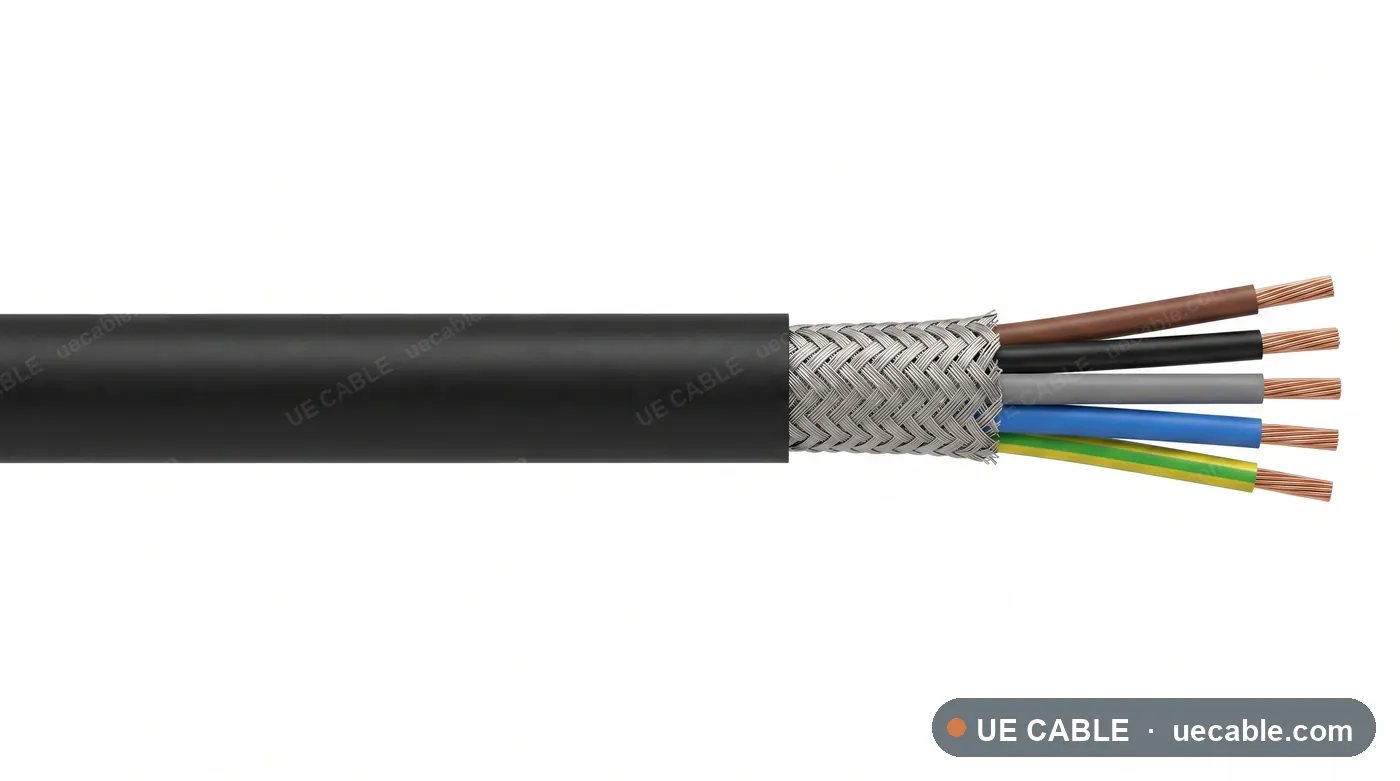

S180 °C HT Shielded Continuous Flex Silicone Cable cable construction reference

Shielded continuous-flex silicone cable

S180 °C HT Shielded Continuous Flex Silicone Cable

S180 °C HT Shielded Continuous Flex Silicone Cable is a silicone cable construction for cable chains, heated automation, high-temperature robotics, using extra fine tinned copper conductor, notch-resistant silicone core insulation, tinned copper braid screen and high-flex silicone outer sheath.

Standard: Continuous-flex silicone cable reference
Voltage class: 1000 V
Temperature class: Up to +180 °C continuous-flex service
Conductor: Extra fine tinned copper conductor
Insulation / jacket: High-flex silicone outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

S180 °C HT Shielded Continuous Flex Silicone Cable is a silicone cable construction for cable chains, heated automation, high-temperature robotics, using extra fine tinned copper conductor, notch-resistant silicone core insulation, tinned copper braid screen and high-flex silicone outer sheath.

Cable chains
Heated automation
High-temperature robotics
Moving machine tools

Cable Construction

Extra fine tinned copper conductor
Notch-resistant silicone core insulation
Tinned copper braid screen
High-flex silicone outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 30 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

S180 °C HT shielded continuous-flex silicone cable references

Each row is an exact silicone cable cable specification sheet. Shared silicone compound, temperature class and protection data are listed above.

Silicone cable dutyShielded high-temperature moving cable route
Voltage class1000 V

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	OD guide	Cable weight
S180 °C HT 1000 V Shielded high-temperature moving cable route 2 core 0.5 mm²	2 core	0.5 mm²	37.1 Ω/km	9.4 mm	0.28 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 2 core 0.75 mm²	2 core	0.75 mm²	24.7 Ω/km	9.7 mm	0.29 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 2 core 1.0 mm²	2 core	1.0 mm²	18.5 Ω/km	9.9 mm	0.29 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 2 core 1.5 mm²	2 core	1.5 mm²	12.7 Ω/km	10.2 mm	0.30 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 2 core 2.5 mm²	2 core	2.5 mm²	7.6 Ω/km	10.7 mm	0.33 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 3 core 0.5 mm²	3 core	0.5 mm²	37.1 Ω/km	10.1 mm	0.29 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 3 core 0.75 mm²	3 core	0.75 mm²	24.7 Ω/km	10.3 mm	0.29 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 3 core 1.0 mm²	3 core	1.0 mm²	18.5 Ω/km	10.5 mm	0.30 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 3 core 1.5 mm²	3 core	1.5 mm²	12.7 Ω/km	10.9 mm	0.32 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 3 core 2.5 mm²	3 core	2.5 mm²	7.6 Ω/km	11.4 mm	0.35 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 4 core 0.5 mm²	4 core	0.5 mm²	37.1 Ω/km	10.7 mm	0.29 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 4 core 0.75 mm²	4 core	0.75 mm²	24.7 Ω/km	10.9 mm	0.30 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 4 core 1.0 mm²	4 core	1.0 mm²	18.5 Ω/km	11.1 mm	0.31 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 4 core 1.5 mm²	4 core	1.5 mm²	12.7 Ω/km	11.4 mm	0.34 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 4 core 2.5 mm²	4 core	2.5 mm²	7.6 Ω/km	12.0 mm	0.38 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 5 core 0.5 mm²	5 core	0.5 mm²	37.1 Ω/km	11.2 mm	0.30 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 5 core 0.75 mm²	5 core	0.75 mm²	24.7 Ω/km	11.4 mm	0.31 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 5 core 1.0 mm²	5 core	1.0 mm²	18.5 Ω/km	11.6 mm	0.33 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 5 core 1.5 mm²	5 core	1.5 mm²	12.7 Ω/km	11.9 mm	0.35 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 5 core 2.5 mm²	5 core	2.5 mm²	7.6 Ω/km	12.5 mm	0.41 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 7 core 0.5 mm²	7 core	0.5 mm²	37.1 Ω/km	12.0 mm	0.31 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 7 core 0.75 mm²	7 core	0.75 mm²	24.7 Ω/km	12.3 mm	0.33 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 7 core 1.0 mm²	7 core	1.0 mm²	18.5 Ω/km	12.5 mm	0.35 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 7 core 1.5 mm²	7 core	1.5 mm²	12.7 Ω/km	12.8 mm	0.39 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 7 core 2.5 mm²	7 core	2.5 mm²	7.6 Ω/km	13.3 mm	0.46 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 12 core 0.5 mm²	12 core	0.5 mm²	37.1 Ω/km	13.7 mm	0.34 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 12 core 0.75 mm²	12 core	0.75 mm²	24.7 Ω/km	14.0 mm	0.37 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 12 core 1.0 mm²	12 core	1.0 mm²	18.5 Ω/km	14.2 mm	0.40 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 12 core 1.5 mm²	12 core	1.5 mm²	12.7 Ω/km	14.5 mm	0.47 kg/m
S180 °C HT 1000 V Shielded high-temperature moving cable route 12 core 2.5 mm²	12 core	2.5 mm²	7.6 Ω/km	15.0 mm	0.60 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
