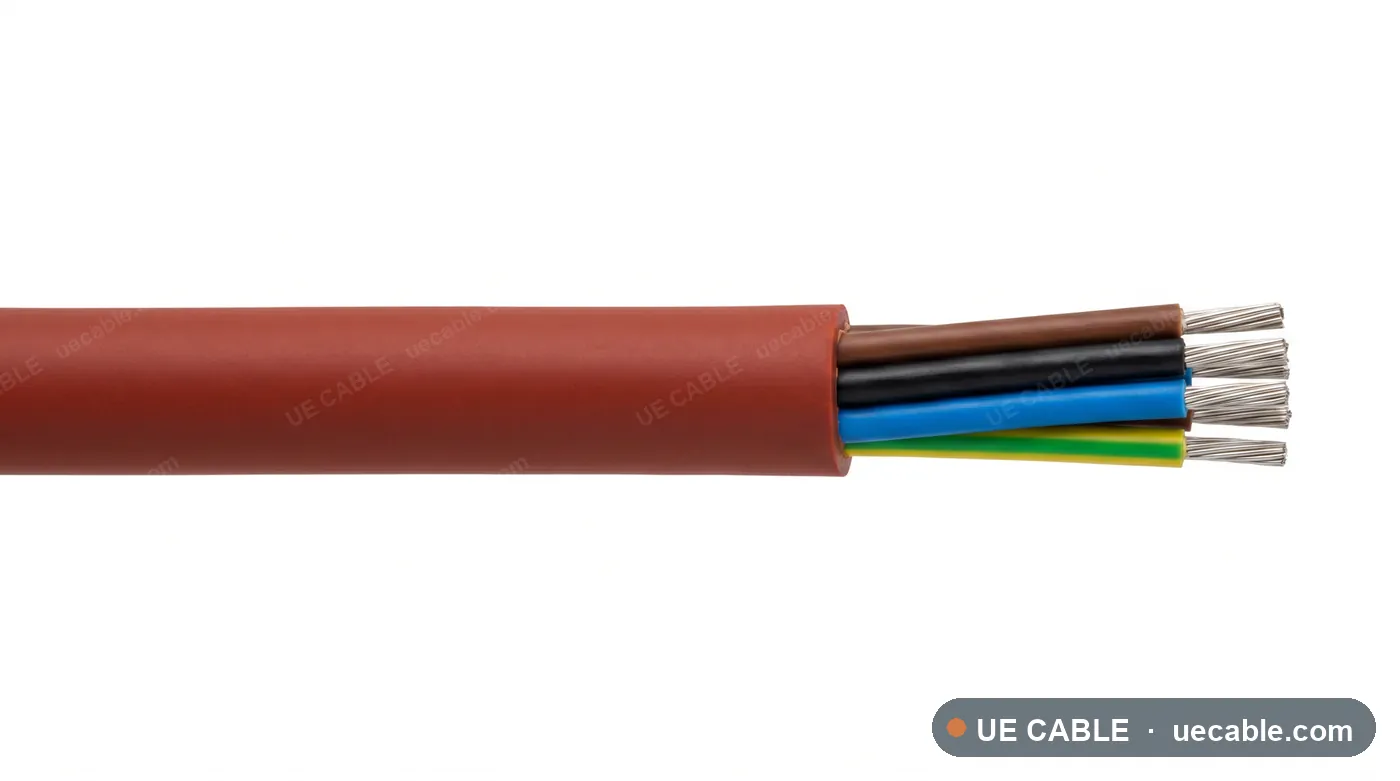

SC 600 HDTR Silicone Control Cable cable construction reference

600 V silicone power and control cable

SC 600 HDTR Silicone Control Cable

SC 600 HDTR Silicone Control Cable is a silicone cable construction for industrial controls, cleanrooms, heated machinery, using stranded tinned copper conductor, silicone rubber core insulation and silicone rubber outer jacket.

Standard
UL / CSA silicone cable reference
Voltage class
600 V
Temperature class
Up to +180 °C control service
Conductor
Stranded tinned copper conductor
Insulation / jacket
Silicone rubber outer jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

SC 600 HDTR Silicone Control Cable is a silicone cable construction for industrial controls, cleanrooms, heated machinery, using stranded tinned copper conductor, silicone rubber core insulation and silicone rubber outer jacket.

  • Industrial controls
  • Cleanrooms
  • Heated machinery
  • Power and control circuits

Cable Construction

  • Stranded tinned copper conductor
  • Silicone rubber core insulation
  • Silicone rubber outer jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 24 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

SC 600 silicone power and control cable references

Each row is an exact silicone cable cable specification sheet. Shared silicone compound, temperature class and protection data are listed above.

  • Silicone cable dutyUL/CSA silicone control cable
  • Voltage class600 V
Cable referenceCore designConductor sizeMax DC resistance at 20 °COD guideCable weight
SC 600 HDTR 600 V UL/CSA silicone control cable 2 core 0.75 mm²2 core0.75 mm²24.7 Ω/km8.6 mm0.18 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 2 core 1.0 mm²2 core1.0 mm²18.5 Ω/km8.8 mm0.18 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 2 core 1.5 mm²2 core1.5 mm²12.7 Ω/km9.1 mm0.19 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 2 core 2.5 mm²2 core2.5 mm²7.6 Ω/km9.6 mm0.21 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 3 core 0.75 mm²3 core0.75 mm²24.7 Ω/km9.2 mm0.18 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 3 core 1.0 mm²3 core1.0 mm²18.5 Ω/km9.4 mm0.19 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 3 core 1.5 mm²3 core1.5 mm²12.7 Ω/km9.8 mm0.21 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 3 core 2.5 mm²3 core2.5 mm²7.6 Ω/km10.3 mm0.24 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 4 core 0.75 mm²4 core0.75 mm²24.7 Ω/km9.8 mm0.19 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 4 core 1.0 mm²4 core1.0 mm²18.5 Ω/km10.0 mm0.20 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 4 core 1.5 mm²4 core1.5 mm²12.7 Ω/km10.3 mm0.23 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 4 core 2.5 mm²4 core2.5 mm²7.6 Ω/km10.9 mm0.27 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 5 core 0.75 mm²5 core0.75 mm²24.7 Ω/km10.3 mm0.20 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 5 core 1.0 mm²5 core1.0 mm²18.5 Ω/km10.5 mm0.21 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 5 core 1.5 mm²5 core1.5 mm²12.7 Ω/km10.8 mm0.24 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 5 core 2.5 mm²5 core2.5 mm²7.6 Ω/km11.4 mm0.30 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 7 core 0.75 mm²7 core0.75 mm²24.7 Ω/km11.2 mm0.22 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 7 core 1.0 mm²7 core1.0 mm²18.5 Ω/km11.4 mm0.24 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 7 core 1.5 mm²7 core1.5 mm²12.7 Ω/km11.7 mm0.28 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 7 core 2.5 mm²7 core2.5 mm²7.6 Ω/km12.2 mm0.35 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 12 core 0.75 mm²12 core0.75 mm²24.7 Ω/km12.9 mm0.26 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 12 core 1.0 mm²12 core1.0 mm²18.5 Ω/km13.1 mm0.29 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 12 core 1.5 mm²12 core1.5 mm²12.7 Ω/km13.4 mm0.36 kg/m
SC 600 HDTR 600 V UL/CSA silicone control cable 12 core 2.5 mm²12 core2.5 mm²7.6 Ω/km13.9 mm0.49 kg/m
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
