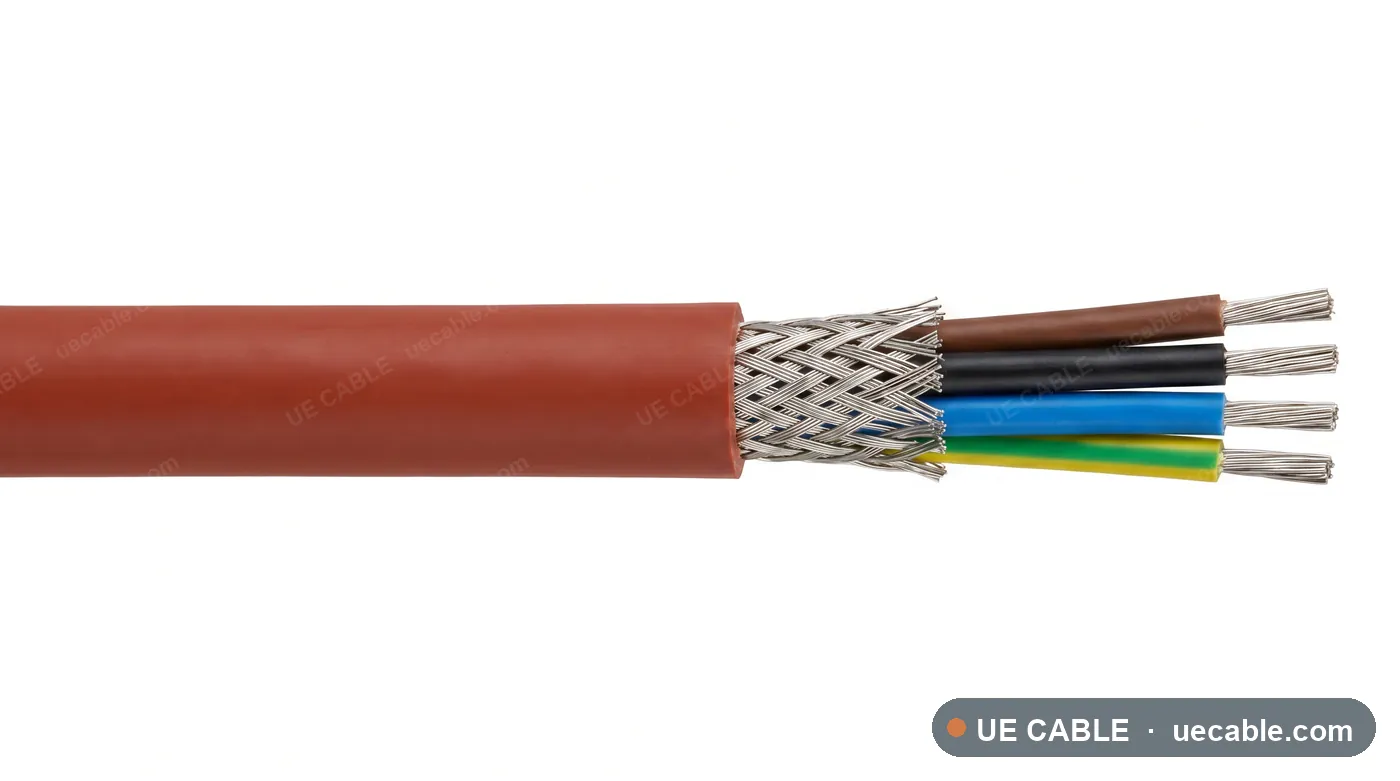

SIHFP Protected Silicone Rubber Cable cable construction reference

Protected silicone cable with braid

SIHFP Protected Silicone Rubber Cable

SIHFP Protected Silicone Rubber Cable is a silicone cable construction for steel plants, furnaces, glass processing, using class 5 tinned copper conductor, silicone rubber core insulation, galvanised steel or fibre glass braid protection and silicone rubber inner sheath with braid protection.

Standard
VDE / IEC silicone cable reference
Voltage class
300/500 V
Temperature class
-60 °C to +180 °C protected service
Conductor
Class 5 tinned copper conductor
Insulation / jacket
Silicone rubber inner sheath with braid protection
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

SIHFP Protected Silicone Rubber Cable is a silicone cable construction for steel plants, furnaces, glass processing, using class 5 tinned copper conductor, silicone rubber core insulation, galvanised steel or fibre glass braid protection and silicone rubber inner sheath with braid protection.

  • Steel plants
  • Furnaces
  • Glass processing
  • Protected heater routes

Cable Construction

  • Class 5 tinned copper conductor
  • Silicone rubber core insulation
  • Galvanised steel or fibre glass braid protection
  • Silicone rubber inner sheath with braid protection

Specifications

Select a cable size.

Each row below is a complete specification sheet — 25 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

SIHFP protected silicone cable references

Each row is an exact silicone cable cable specification sheet. Shared silicone compound, temperature class and protection data are listed above.

  • Silicone cable dutyMechanically protected silicone cable
  • Voltage class300/500 V
Cable referenceCore designConductor sizeMax DC resistance at 20 °COD guideCable weight
SIHFP 300/500 V Mechanically protected silicone cable 2 core 0.5 mm²2 core0.5 mm²37.1 Ω/km10.0 mm0.33 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 2 core 0.75 mm²2 core0.75 mm²24.7 Ω/km10.3 mm0.34 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 2 core 1.0 mm²2 core1.0 mm²18.5 Ω/km10.5 mm0.34 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 2 core 1.5 mm²2 core1.5 mm²12.7 Ω/km10.8 mm0.35 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 2 core 2.5 mm²2 core2.5 mm²7.6 Ω/km11.3 mm0.38 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 3 core 0.5 mm²3 core0.5 mm²37.1 Ω/km10.7 mm0.34 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 3 core 0.75 mm²3 core0.75 mm²24.7 Ω/km10.9 mm0.34 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 3 core 1.0 mm²3 core1.0 mm²18.5 Ω/km11.1 mm0.35 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 3 core 1.5 mm²3 core1.5 mm²12.7 Ω/km11.5 mm0.37 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 3 core 2.5 mm²3 core2.5 mm²7.6 Ω/km12.0 mm0.40 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 4 core 0.5 mm²4 core0.5 mm²37.1 Ω/km11.3 mm0.34 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 4 core 0.75 mm²4 core0.75 mm²24.7 Ω/km11.5 mm0.35 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 4 core 1.0 mm²4 core1.0 mm²18.5 Ω/km11.7 mm0.36 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 4 core 1.5 mm²4 core1.5 mm²12.7 Ω/km12.0 mm0.39 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 4 core 2.5 mm²4 core2.5 mm²7.6 Ω/km12.6 mm0.43 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 5 core 0.5 mm²5 core0.5 mm²37.1 Ω/km11.8 mm0.35 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 5 core 0.75 mm²5 core0.75 mm²24.7 Ω/km12.0 mm0.36 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 5 core 1.0 mm²5 core1.0 mm²18.5 Ω/km12.2 mm0.38 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 5 core 1.5 mm²5 core1.5 mm²12.7 Ω/km12.5 mm0.40 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 5 core 2.5 mm²5 core2.5 mm²7.6 Ω/km13.1 mm0.46 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 7 core 0.5 mm²7 core0.5 mm²37.1 Ω/km12.6 mm0.36 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 7 core 0.75 mm²7 core0.75 mm²24.7 Ω/km12.9 mm0.38 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 7 core 1.0 mm²7 core1.0 mm²18.5 Ω/km13.1 mm0.40 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 7 core 1.5 mm²7 core1.5 mm²12.7 Ω/km13.4 mm0.44 kg/m
SIHFP 300/500 V Mechanically protected silicone cable 7 core 2.5 mm²7 core2.5 mm²7.6 Ω/km13.9 mm0.51 kg/m
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
