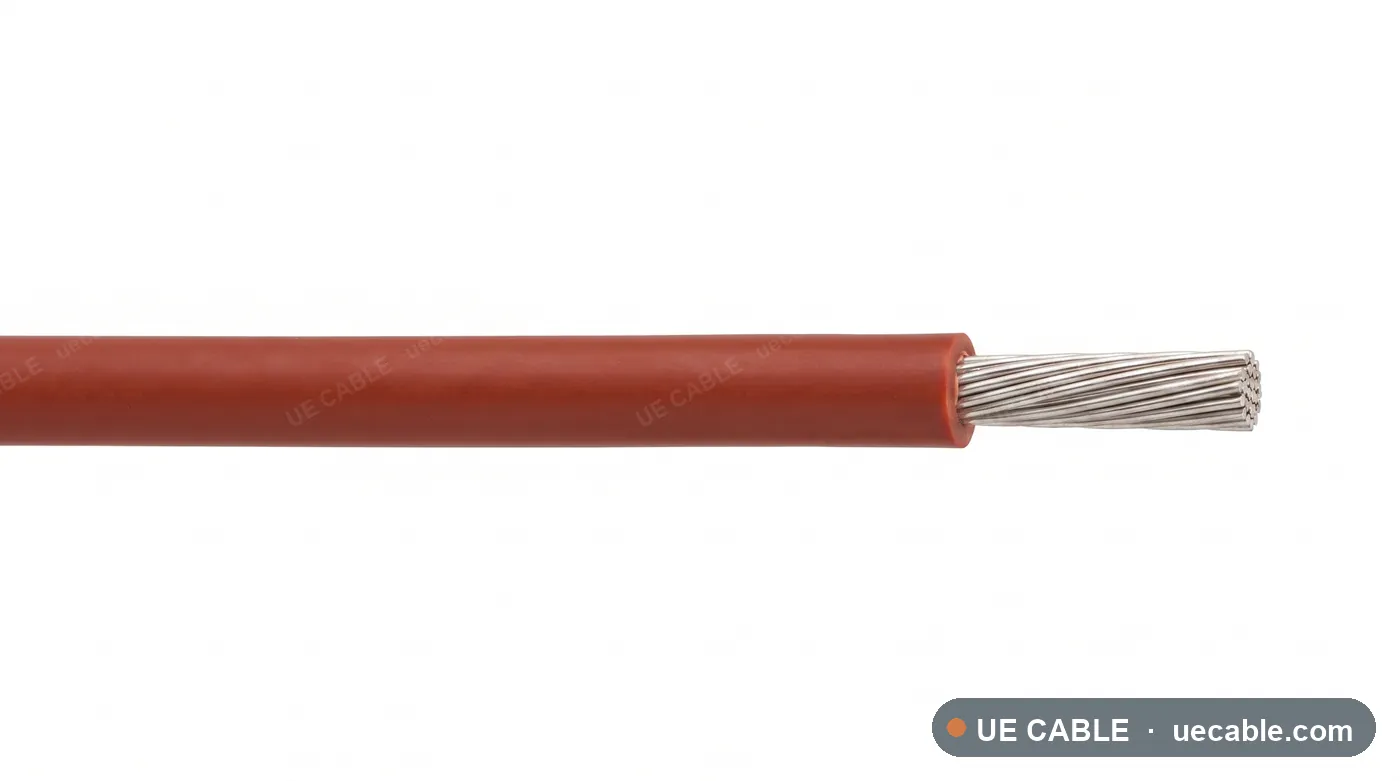

Silicone Heater Lead Cable cable construction reference

Silicone heater and appliance lead

Silicone Heater Lead Cable

Silicone Heater Lead Cable is a silicone cable construction for heater leads, appliances, ovens, using tinned copper flexible conductor, silicone rubber heater-lead insulation and silicone rubber heater-lead covering outer sheath.

Standard
UL 758 / IEC silicone appliance wire reference
Voltage class
300/500 V
Temperature class
-60 °C to +180 °C appliance lead service
Conductor
Tinned copper flexible conductor
Insulation / jacket
Silicone rubber heater-lead covering
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Silicone Heater Lead Cable is a silicone cable construction for heater leads, appliances, ovens, using tinned copper flexible conductor, silicone rubber heater-lead insulation and silicone rubber heater-lead covering outer sheath.

  • Heater leads
  • Appliances
  • Ovens
  • Warm equipment wiring

Cable Construction

  • Tinned copper flexible conductor
  • Silicone rubber heater-lead insulation
  • Silicone rubber heater-lead covering outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Silicone heater lead cable references

Each row is an exact silicone cable cable specification sheet. Shared silicone compound, temperature class and protection data are listed above.

  • Silicone cable dutyHeater and appliance lead wiring
  • Voltage class300/500 V
Cable referenceCore designConductor sizeMax DC resistance at 20 °COD guideCable weight
Silicone heater lead 300/500 V Heater and appliance lead wiring 1 core 0.5 mm²1 core0.5 mm²37.1 Ω/km5.0 mm0.17 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 1 core 0.75 mm²1 core0.75 mm²24.7 Ω/km5.2 mm0.17 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 1 core 1.0 mm²1 core1.0 mm²18.5 Ω/km5.4 mm0.17 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 1 core 1.5 mm²1 core1.5 mm²12.7 Ω/km5.7 mm0.18 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 1 core 2.5 mm²1 core2.5 mm²7.6 Ω/km6.1 mm0.19 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 1 core 4 mm²1 core4 mm²4.7 Ω/km6.7 mm0.20 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 2 core 0.5 mm²2 core0.5 mm²37.1 Ω/km8.3 mm0.17 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 2 core 0.75 mm²2 core0.75 mm²24.7 Ω/km8.6 mm0.18 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 2 core 1.0 mm²2 core1.0 mm²18.5 Ω/km8.8 mm0.18 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 2 core 1.5 mm²2 core1.5 mm²12.7 Ω/km9.1 mm0.19 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 2 core 2.5 mm²2 core2.5 mm²7.6 Ω/km9.6 mm0.21 kg/m
Silicone heater lead 300/500 V Heater and appliance lead wiring 2 core 4 mm²2 core4 mm²4.7 Ω/km10.3 mm0.25 kg/m
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
