Multicore silicone rubber cable

SIHF Multicore Silicone Rubber Cable

SIHF Multicore Silicone Rubber Cable is a silicone cable construction for machine construction, ovens, plant equipment, using class 5 tinned copper conductor, silicone rubber core insulation and silicone rubber outer sheath.

Standard: VDE / IEC silicone cable reference
Voltage class: 300/500 V
Temperature class: -60 °C to +180 °C power and control service
Conductor: Class 5 tinned copper conductor
Insulation / jacket: Silicone rubber outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Machine construction
Ovens
Plant equipment
Control circuits

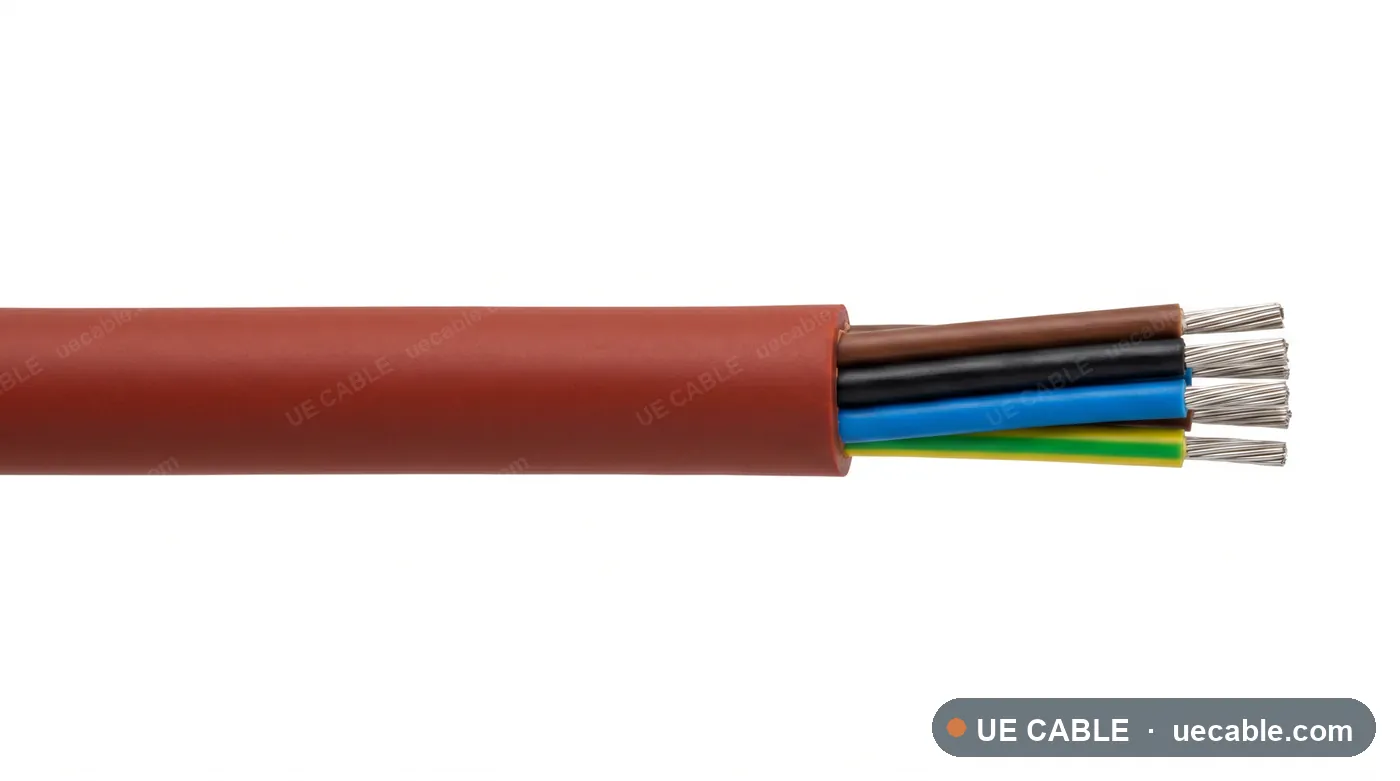

Cable Construction

Class 5 tinned copper conductor
Silicone rubber core insulation
Silicone rubber outer sheath

Specifications

Select a cable size.

Each row below is a complete specification sheet — 40 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

SIHF multicore silicone cable references

Each row is an exact silicone cable cable specification sheet. Shared silicone compound, temperature class and protection data are listed above.

Silicone cable dutySilicone power and control cable
Voltage class300/500 V

Cable reference	Core design	Conductor size	Max DC resistance at 20 °C	OD guide	Cable weight
SIHF 300/500 V Silicone power and control cable 2 core 0.5 mm²	2 core	0.5 mm²	37.1 Ω/km	8.3 mm	0.17 kg/m
SIHF 300/500 V Silicone power and control cable 2 core 0.75 mm²	2 core	0.75 mm²	24.7 Ω/km	8.6 mm	0.18 kg/m
SIHF 300/500 V Silicone power and control cable 2 core 1.0 mm²	2 core	1.0 mm²	18.5 Ω/km	8.8 mm	0.18 kg/m
SIHF 300/500 V Silicone power and control cable 2 core 1.5 mm²	2 core	1.5 mm²	12.7 Ω/km	9.1 mm	0.19 kg/m
SIHF 300/500 V Silicone power and control cable 2 core 2.5 mm²	2 core	2.5 mm²	7.6 Ω/km	9.6 mm	0.21 kg/m
SIHF 300/500 V Silicone power and control cable 3 core 0.5 mm²	3 core	0.5 mm²	37.1 Ω/km	9.0 mm	0.18 kg/m
SIHF 300/500 V Silicone power and control cable 3 core 0.75 mm²	3 core	0.75 mm²	24.7 Ω/km	9.2 mm	0.18 kg/m
SIHF 300/500 V Silicone power and control cable 3 core 1.0 mm²	3 core	1.0 mm²	18.5 Ω/km	9.4 mm	0.19 kg/m
SIHF 300/500 V Silicone power and control cable 3 core 1.5 mm²	3 core	1.5 mm²	12.7 Ω/km	9.8 mm	0.21 kg/m
SIHF 300/500 V Silicone power and control cable 3 core 2.5 mm²	3 core	2.5 mm²	7.6 Ω/km	10.3 mm	0.24 kg/m
SIHF 300/500 V Silicone power and control cable 4 core 0.5 mm²	4 core	0.5 mm²	37.1 Ω/km	9.6 mm	0.18 kg/m
SIHF 300/500 V Silicone power and control cable 4 core 0.75 mm²	4 core	0.75 mm²	24.7 Ω/km	9.8 mm	0.19 kg/m
SIHF 300/500 V Silicone power and control cable 4 core 1.0 mm²	4 core	1.0 mm²	18.5 Ω/km	10.0 mm	0.20 kg/m
SIHF 300/500 V Silicone power and control cable 4 core 1.5 mm²	4 core	1.5 mm²	12.7 Ω/km	10.3 mm	0.23 kg/m
SIHF 300/500 V Silicone power and control cable 4 core 2.5 mm²	4 core	2.5 mm²	7.6 Ω/km	10.9 mm	0.27 kg/m
SIHF 300/500 V Silicone power and control cable 5 core 0.5 mm²	5 core	0.5 mm²	37.1 Ω/km	10.1 mm	0.19 kg/m
SIHF 300/500 V Silicone power and control cable 5 core 0.75 mm²	5 core	0.75 mm²	24.7 Ω/km	10.3 mm	0.20 kg/m
SIHF 300/500 V Silicone power and control cable 5 core 1.0 mm²	5 core	1.0 mm²	18.5 Ω/km	10.5 mm	0.21 kg/m
SIHF 300/500 V Silicone power and control cable 5 core 1.5 mm²	5 core	1.5 mm²	12.7 Ω/km	10.8 mm	0.24 kg/m
SIHF 300/500 V Silicone power and control cable 5 core 2.5 mm²	5 core	2.5 mm²	7.6 Ω/km	11.4 mm	0.30 kg/m
SIHF 300/500 V Silicone power and control cable 7 core 0.5 mm²	7 core	0.5 mm²	37.1 Ω/km	10.9 mm	0.20 kg/m
SIHF 300/500 V Silicone power and control cable 7 core 0.75 mm²	7 core	0.75 mm²	24.7 Ω/km	11.2 mm	0.22 kg/m
SIHF 300/500 V Silicone power and control cable 7 core 1.0 mm²	7 core	1.0 mm²	18.5 Ω/km	11.4 mm	0.24 kg/m
SIHF 300/500 V Silicone power and control cable 7 core 1.5 mm²	7 core	1.5 mm²	12.7 Ω/km	11.7 mm	0.28 kg/m
SIHF 300/500 V Silicone power and control cable 7 core 2.5 mm²	7 core	2.5 mm²	7.6 Ω/km	12.2 mm	0.35 kg/m
SIHF 300/500 V Silicone power and control cable 12 core 0.5 mm²	12 core	0.5 mm²	37.1 Ω/km	12.6 mm	0.23 kg/m
SIHF 300/500 V Silicone power and control cable 12 core 0.75 mm²	12 core	0.75 mm²	24.7 Ω/km	12.9 mm	0.26 kg/m
SIHF 300/500 V Silicone power and control cable 12 core 1.0 mm²	12 core	1.0 mm²	18.5 Ω/km	13.1 mm	0.29 kg/m
SIHF 300/500 V Silicone power and control cable 12 core 1.5 mm²	12 core	1.5 mm²	12.7 Ω/km	13.4 mm	0.36 kg/m
SIHF 300/500 V Silicone power and control cable 12 core 2.5 mm²	12 core	2.5 mm²	7.6 Ω/km	13.9 mm	0.49 kg/m
SIHF 300/500 V Silicone power and control cable 18 core 0.5 mm²	18 core	0.5 mm²	37.1 Ω/km	14.3 mm	0.26 kg/m
SIHF 300/500 V Silicone power and control cable 18 core 0.75 mm²	18 core	0.75 mm²	24.7 Ω/km	14.5 mm	0.31 kg/m
SIHF 300/500 V Silicone power and control cable 18 core 1.0 mm²	18 core	1.0 mm²	18.5 Ω/km	14.7 mm	0.36 kg/m
SIHF 300/500 V Silicone power and control cable 18 core 1.5 mm²	18 core	1.5 mm²	12.7 Ω/km	15.0 mm	0.46 kg/m
SIHF 300/500 V Silicone power and control cable 18 core 2.5 mm²	18 core	2.5 mm²	7.6 Ω/km	15.6 mm	0.66 kg/m
SIHF 300/500 V Silicone power and control cable 25 core 0.5 mm²	25 core	0.5 mm²	37.1 Ω/km	15.9 mm	0.30 kg/m
SIHF 300/500 V Silicone power and control cable 25 core 0.75 mm²	25 core	0.75 mm²	24.7 Ω/km	16.1 mm	0.37 kg/m
SIHF 300/500 V Silicone power and control cable 25 core 1.0 mm²	25 core	1.0 mm²	18.5 Ω/km	16.3 mm	0.43 kg/m
SIHF 300/500 V Silicone power and control cable 25 core 1.5 mm²	25 core	1.5 mm²	12.7 Ω/km	16.6 mm	0.57 kg/m
SIHF 300/500 V Silicone power and control cable 25 core 2.5 mm²	25 core	2.5 mm²	7.6 Ω/km	17.2 mm	0.85 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
