Polyethylene sheath
PE cable master catalog for polyethylene, MDPE and HDPE sheathed cables used in outdoor, duct, direct-burial, aerial, telecom, fibre optic, LAN, coaxial and energy storage routes.
PE cable master catalog for polyethylene, MDPE and HDPE sheathed cables used in outdoor, duct, direct-burial, aerial, telecom, fibre optic, LAN, coaxial and energy storage routes.
| Sheath material | PE, MDPE or HDPE outer sheath |
|---|---|
| Cable function | External telephone, direct-burial telecom, outdoor fibre, aerial fibre, microduct fibre, outdoor LAN, RF coax, CCTV coax and outdoor BESS feeder |
| Installation | Outdoor exposed, duct, campus backbone, direct burial, aerial pole line, microduct, building-to-building and field feeder routes |
| Conductor / fibre | Solid copper telephone conductor, balanced LAN pairs, optical fibre element, RF coax conductor or copper/aluminium DC feeder conductor |
| Insulation / dielectric | PE, cellular PE, foam PE, XLPE, optical loose tube or category-controlled pair insulation by cable family |
| Screen / moisture protection | Foil/braid screen, Al/PE moisture barrier, petroleum jelly filling, water blocking, steel tape, steel wire armour, dielectric strength member or coax shield |
| Resistance | DC conductor resistance, RF impedance/attenuation, LAN transmission or optical attenuation by exact reference |
| Environmental rating | UV resistance, moisture resistance, water blocking, direct-burial suitability, rodent risk, aerial span or outdoor field route duty |
| Technical data | Pair count, fibre count, category, coax reference, voltage class, conductor size, jacket grade, resistance or attenuation, OD guide, weight guide, bend radius and specification reference |
Open a cable construction page, then select the voltage, conductor material, core layout and cross-section row that matches your enquiry. Each row opens a cable specification sheet for quote preparation.
PE cable pages are organised by route and cable family: external telephone, direct-burial telecom, outdoor fibre, ADSS aerial fibre, microduct fibre, outdoor LAN, RF coax, CCTV coax and BESS outdoor feeders. Open a cable page to compare exact pair count, fibre count, category, coax reference, conductor size, sheath grade, resistance or attenuation, OD, weight and cable specification sheets.
CW1128 External Telephone Cable is a telephone cable reference for outdoor telephone distribution, duct routes, external building links, using class 1 solid annealed copper conductor, cellular pe pair insulation, moisture resistant external telephone construction and black pe outer sheath.
View technical data →CW1128 CW1198 Direct Burial Telephone Cable is a telephone cable reference for direct burial telephone routes, access networks, outdoor distribution, using class 1 solid copper conductor, cellular pe pair insulation, petroleum jelly filling with al/pe moisture barrier and swa protection and black pe outer sheath.
View technical data →Outdoor Loose Tube Duct Fibre Optic Cable is an optical fibre cable construction for Telecom backbones, Campus networks, Outdoor duct routes, using OS2 or OM3 fibre, stranded loose tube duct cable, frp central strength member, water-blocking yarn and tape and uv resistant pe outdoor jacket.
View technical data →Corrugated Steel Tape Armoured Fibre Optic Cable is an optical fibre cable construction for Rodent-risk duct routes, Campus backbones, Industrial outdoor fibre, using OS2 or OM3 fibre, loose tube armoured optical cable, frp central strength member, corrugated steel tape armour and pe outdoor jacket.
View technical data →Steel Wire Armoured Direct Burial Fibre Optic Cable is an optical fibre cable construction for Direct burial telecom routes, Utility fibre backbones, Industrial sites, using OS2 or OM3 fibre, loose tube direct burial optical cable, frp central strength member with water blocking, galvanised steel wire armour and double pe direct burial jacket.
View technical data →ADSS Self Supporting Aerial Fibre Optic Cable is an optical fibre cable construction for Aerial telecom routes, Power utility communication, Long span pole lines, using OS2 fibre, adss all-dielectric self-supporting cable, aramid yarn tensile strength member, all-dielectric tracking-resistant protection option and pe or tracking-resistant pe aerial jacket.
View technical data →FTTH Flat Drop Fibre Optic Cable is an optical fibre cable construction for FTTH subscriber drops, Building access, Facade routes, using OS2 fibre, ftth flat drop cable, frp or steel strength members, flat drop tensile members and lszh or pe drop jacket.
View technical data →Microduct Air Blown Fibre Optic Cable is an optical fibre cable construction for FTTx access networks, Microduct routes, Urban telecom ducts, using OS2 fibre, microduct air-blown fibre cable, dielectric strength element, water-blocked compact micro cable and low-friction hdpe microduct jacket.
View technical data →Cat7 S/FTP LSZH LAN Cable is a structured cabling product for High-bandwidth structured cabling, Broadcast data networks, Shielded building backbones, using Cat7, 4 x 2 pair, S/FTP shielding and jacket options including LSZH CPR Cca indoor jacket or PE outdoor jacket.
View technical data →Outdoor Cat6A F/UTP PE LAN Cable is a structured cabling product for Campus links, Outdoor IP cameras, Wireless access points, using Cat6A, 4 x 2 pair, F/UTP shielding and jacket options including UV resistant PE outdoor jacket or Direct burial PE jacket.
View technical data →RG58 50 Ω Flexible Coaxial Cable is a coaxial cable reference for rf equipment, radio communication, test leads with impedance, shielding, dielectric and loss data separated in the specification matrix.
View technical data →RG213 / RG8 50 Ω RF Coaxial Cable is a coaxial cable reference for base station feeders, radio systems, rf transmission with impedance, shielding, dielectric and loss data separated in the specification matrix.
View technical data →RG59 75 Ω CCTV Coaxial Cable is a coaxial cable reference for cctv, baseband video, security cameras with impedance, shielding, dielectric and loss data separated in the specification matrix.
View technical data →RG6 75 Ω CATV And Satellite Coaxial Cable is a coaxial cable reference for catv, satellite tv, broadband distribution with impedance, shielding, dielectric and loss data separated in the specification matrix.
View technical data →RG11 75 Ω Trunk Coaxial Cable is a coaxial cable reference for longer catv runs, trunk video distribution, satellite backbone with impedance, shielding, dielectric and loss data separated in the specification matrix.
View technical data →Low Loss 50 Ω Wireless Coaxial Cable is a coaxial cable reference for wireless communication, cellular systems, wi-fi antennas with impedance, shielding, dielectric and loss data separated in the specification matrix.
View technical data →Broadcast 75 Ω Coaxial Cable is a coaxial cable reference for broadcast video, studio installation, digital video with impedance, shielding, dielectric and loss data separated in the specification matrix.
View technical data →CCTV Composite Coaxial Cable is a coaxial cable reference for cctv cameras, security camera power, ptz control with impedance, shielding, dielectric and loss data separated in the specification matrix.
View technical data →
Outdoor BESS DC feeder cable

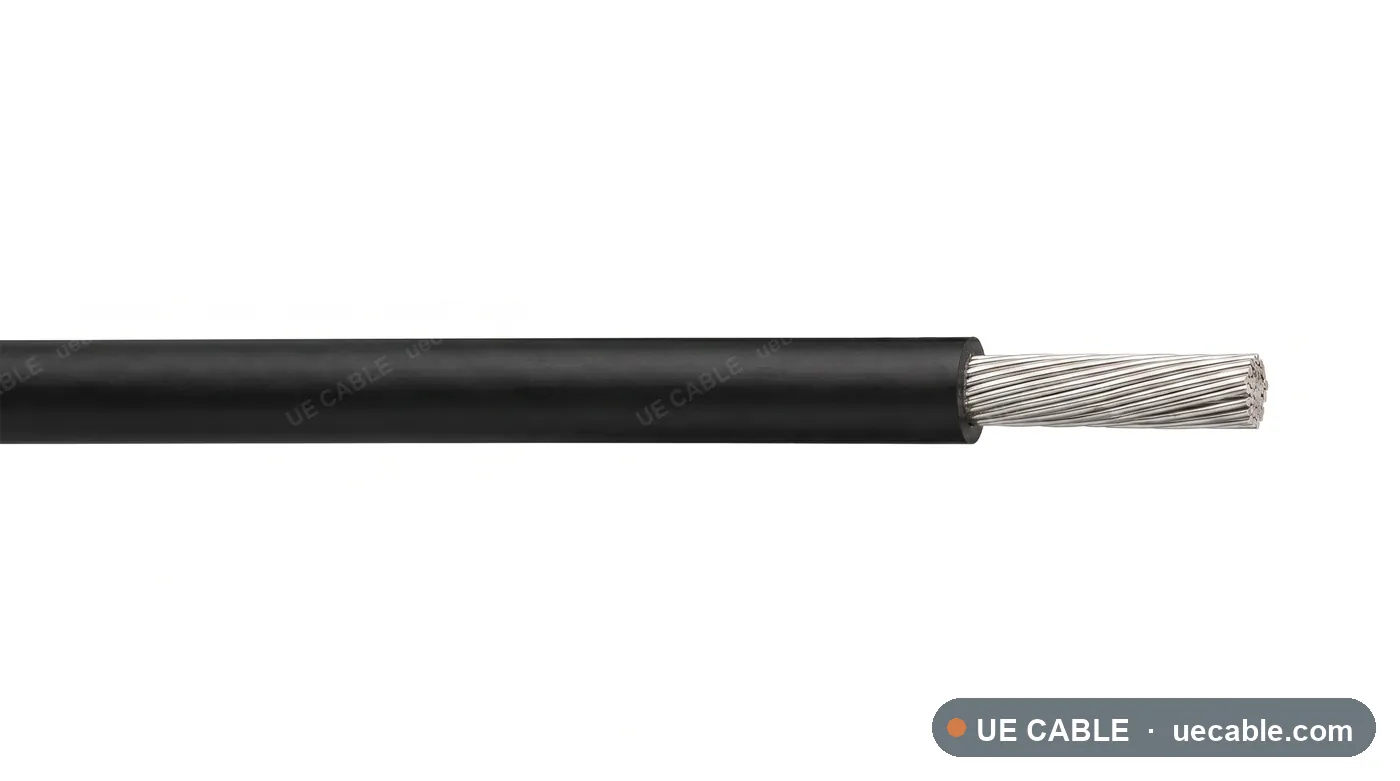

Outdoor BESS MDPE DC Feeder Cable is a battery energy storage cable construction for container-to-pcs outdoor routes, bess field feeders, renewable energy storage farms applications, using copper or aluminium conductor, xlpe dc insulation, water blocked mdpe or uv resistant pe sheath and outdoor, uv, moisture and direct-burial route duty.
View technical data →BESS Monitoring Data Cable is a battery energy storage cable construction for bms communication, rack monitoring, can bus links applications, using tinned copper data conductor, pe, foam pe or lszh data insulation, lszh, pur or pe jacket and can, rs-485, sensor and monitoring network duty.
View technical data →FAQ
PE cable master catalog for polyethylene, MDPE and HDPE sheathed cables used in outdoor, duct, direct-burial, aerial, telecom, fibre optic, LAN, coaxial and energy storage routes. They are built to IEC 60502-1, EN 50288-7, CW1128, CW1198, IEC 60794, IEC 61156, IEC 61196, ISO/IEC 11801.
UE Cable pe cables are manufactured and tested to IEC 60502-1, EN 50288-7, CW1128, CW1198, IEC 60794, IEC 61156, IEC 61196, ISO/IEC 11801. The exact standard for each construction is stated on its specification sheet.
20 construction families are catalogued under pe cables, each offered across a range of conductor sizes and core or pair counts. Open any specification sheet for the exact conductor size, voltage, operating temperature, current rating, overall diameter and weight.
Yes. UE Cable manufactures to customer specification — conductor, insulation, screen, armour, sheath, colour, printing and packing. Send your requirement through the inquiry list and we typically reply within 6 hours with price, lead time and test documentation.
