Broadcast and video coaxial cable

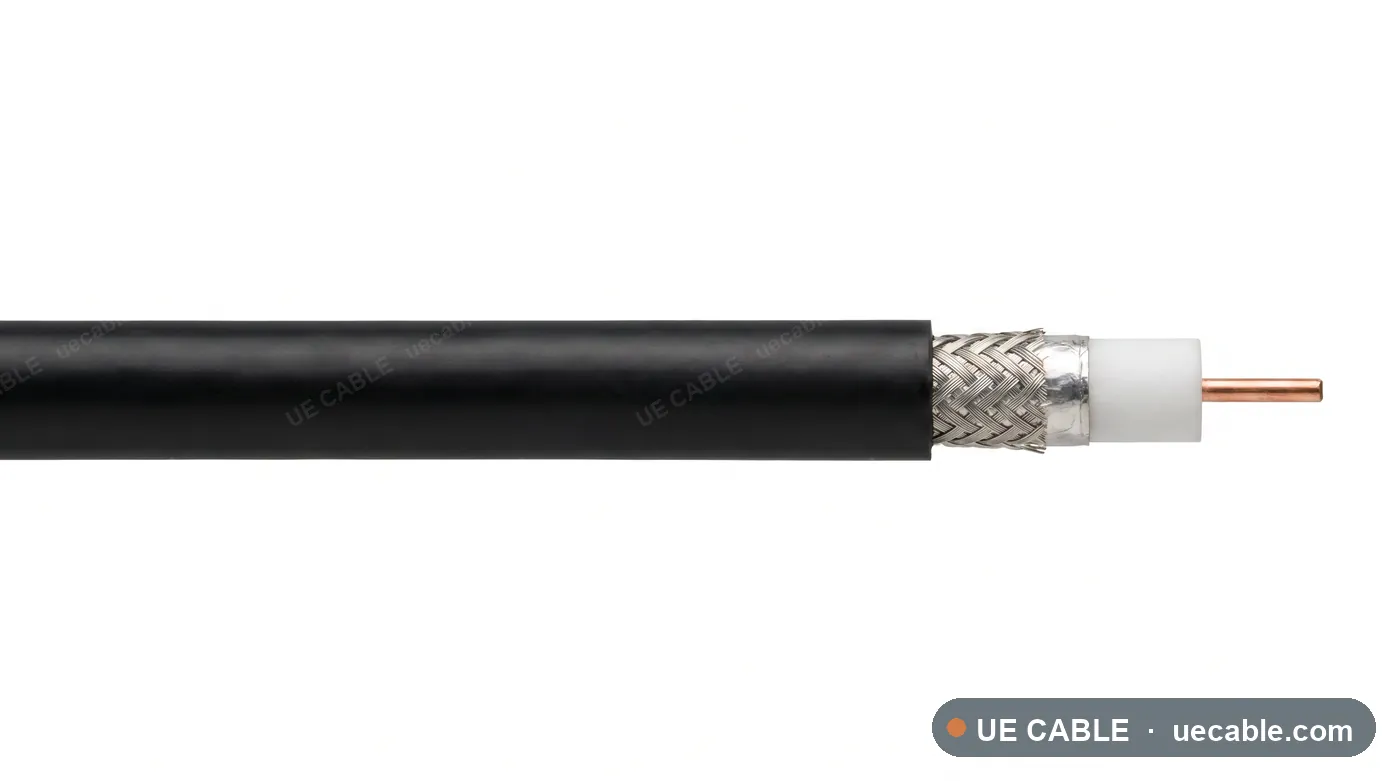

Broadcast 75 Ω Coaxial Cable is a coaxial cable reference for broadcast video, studio installation, digital video with impedance, shielding, dielectric and loss data separated in the specification matrix.
Cable Type Data
Broadcast 75 Ω Coaxial Cable is a coaxial cable reference for broadcast video, studio installation, digital video with impedance, shielding, dielectric and loss data separated in the specification matrix.
Specifications
Each row below is a complete specification sheet — 3 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
| Cable reference | Coax reference | Center conductor | Dielectric | Shield construction | OD guide | Electrical reference |
|---|---|---|---|---|---|---|
| RG59 Broadcast PE outdoor Coaxial Cable | RG59 | Solid bare copper or copper-clad steel conductor | Solid or foam PE dielectric | Bare copper braid or foil plus braid screen | 6.10 mm | 67 pF/m nominal; 0.25 dB/m at 100 MHz guide; 66% to 82% velocity factor |
| RG6 Broadcast PE outdoor Coaxial Cable | RG6 | Solid copper-clad steel or bare copper conductor | Foam PE dielectric | Foil plus braid or quad shield | 6.90 mm | 53 pF/m nominal; 0.20 dB/m at 100 MHz guide; 82% nominal velocity factor |
| RG11 Broadcast PE outdoor Coaxial Cable | RG11 | Solid bare copper or copper-clad steel conductor | Foam PE dielectric | Foil plus braid or quad shield | 10.30 mm | 53 pF/m nominal; 0.13 dB/m at 100 MHz guide; 82% nominal velocity factor |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
