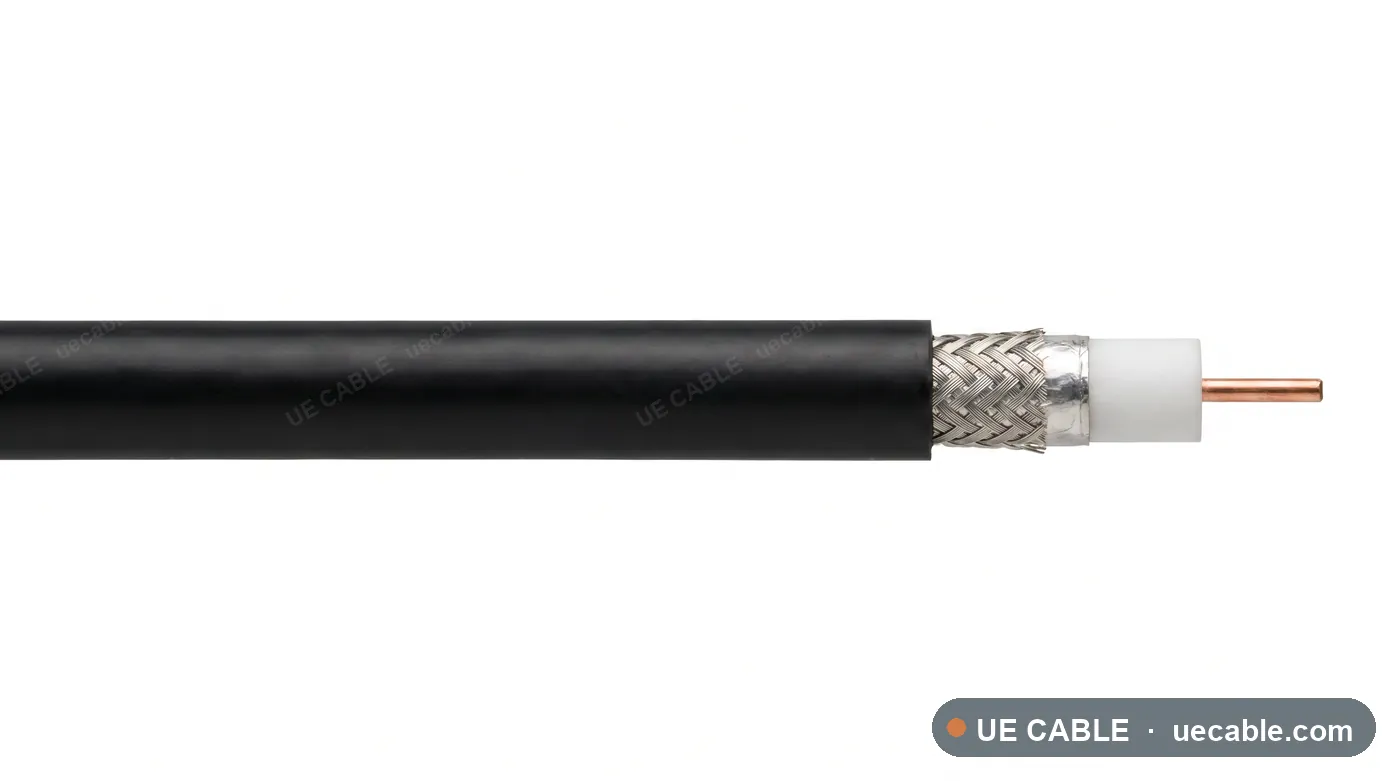

RG213 / RG8 50 Ω PE Outdoor RF Coaxial Cable cable construction reference

Large diameter RF coaxial cable

RG213 / RG8 50 Ω PE Outdoor RF Coaxial Cable

RG213 / RG8 50 Ω RF Coaxial Cable is a coaxial cable reference for base station feeders, radio systems, rf transmission with impedance, shielding, dielectric and loss data separated in the specification matrix.

Standard
MIL-C-17 / RG type references
Conductor
Stranded bare copper conductor
Insulation / jacket
PVC, LSZH or PE outdoor jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

RG213 / RG8 50 Ω RF Coaxial Cable is a coaxial cable reference for base station feeders, radio systems, rf transmission with impedance, shielding, dielectric and loss data separated in the specification matrix.

  • Base station feeders
  • Radio systems
  • RF transmission
  • Outdoor antenna routes

Cable Construction

  • Stranded bare copper center conductor
  • Solid PE dielectric
  • Bare copper braid screen
  • PVC, LSZH or PE jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 2 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Cable Specification Sheets

  • ApplicationRF feeder, base station and antenna route
  • Coax referenceRG213
  • Impedance50 Ω
  • Center conductorStranded bare copper conductor
  • DielectricSolid PE dielectric
  • Shield constructionBare copper braid screen
  • OD guide10.30 mm
  • Electrical reference101 pF/m nominal; 0.28 dB/m at 400 MHz guide; 66% nominal velocity factor
Cable referenceJacket
RG213 PE outdoor Coaxial CablePE outdoor jacket
RG213 Direct burial PE Coaxial CableDirect burial PE jacket
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
