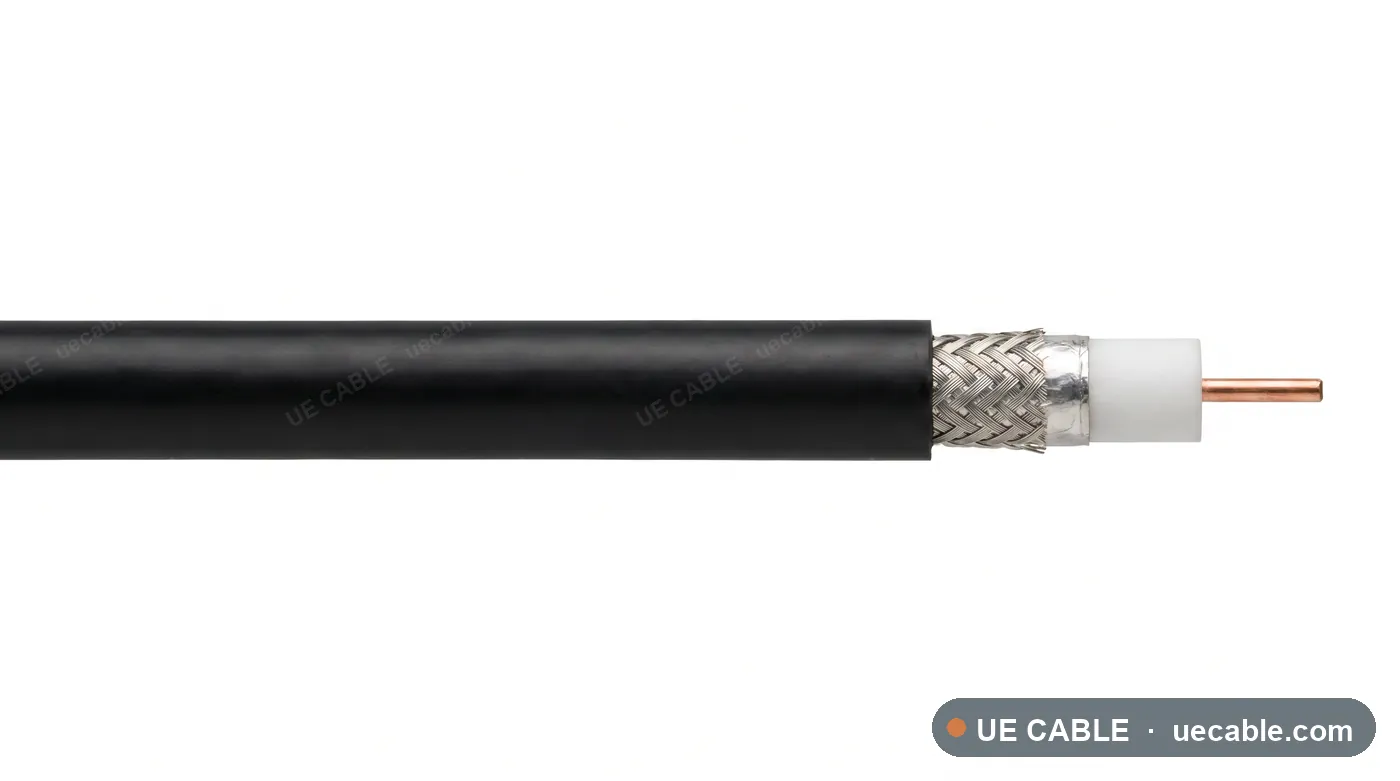

RG59 75 Ω PE Outdoor CCTV Coaxial Cable cable construction reference

75 Ω CCTV and video coaxial cable

RG59 75 Ω PE Outdoor CCTV Coaxial Cable

RG59 75 Ω CCTV Coaxial Cable is a coaxial cable reference for cctv, baseband video, security cameras with impedance, shielding, dielectric and loss data separated in the specification matrix.

Standard
IEC 61196 / RG type references
Conductor
Solid bare copper or copper-clad steel conductor
Insulation / jacket
PVC, LSZH or PE outdoor jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

RG59 75 Ω CCTV Coaxial Cable is a coaxial cable reference for cctv, baseband video, security cameras with impedance, shielding, dielectric and loss data separated in the specification matrix.

  • CCTV
  • Baseband video
  • Security cameras
  • Short video routes

Cable Construction

  • Solid bare copper or copper-clad steel center conductor
  • PE dielectric
  • Braid or foil plus braid shield
  • PVC, LSZH or PE jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 2 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Cable Specification Sheets

  • ApplicationCCTV, baseband video and short 75 Ω route
  • Coax referenceRG59
  • Impedance75 Ω
  • Center conductorSolid bare copper or copper-clad steel conductor
  • DielectricSolid or foam PE dielectric
  • Shield constructionBare copper braid or foil plus braid screen
  • OD guide6.10 mm
  • Electrical reference67 pF/m nominal; 0.25 dB/m at 100 MHz guide; 66% to 82% velocity factor
Cable referenceJacket
RG59 PE outdoor Coaxial CablePE outdoor jacket
RG59 Direct burial PE Coaxial CableDirect burial PE jacket
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
