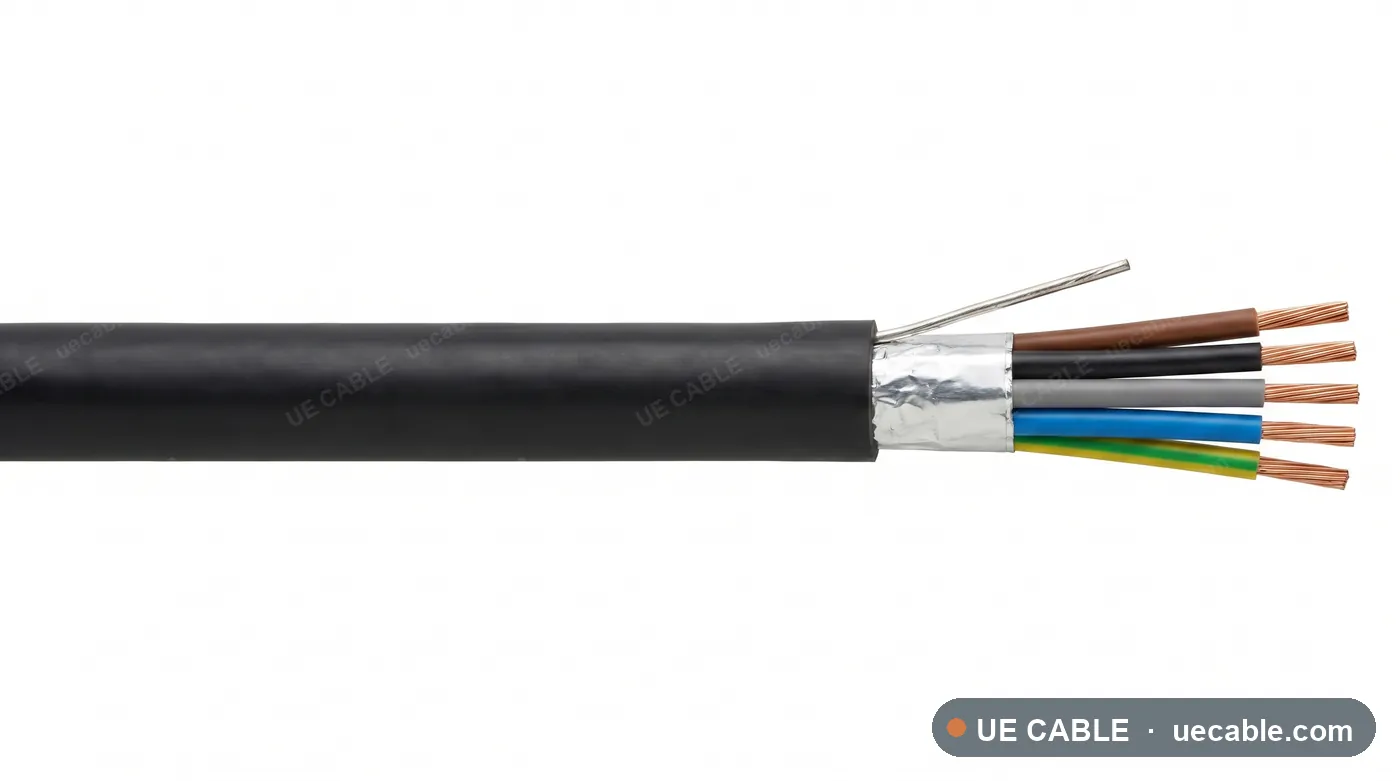

NEK 606 BFOU Fire Resistant Cable cable construction reference

Fire resistant mud resistant cable

NEK 606 BFOU Fire Resistant Cable

NEK 606 BFOU Fire Resistant Cable is a specific marine and offshore cable construction for emergency systems, fire and gas systems, offshore process control applications, using tinned copper conductor, mica fire barrier with epr or hepr insulation, optional individual and/or collective screen, braid or armour according to offshore route and shf2 or mud-resistant offshore sheath.

Standard
NEK 606
Voltage class
250 V, 0.6/1 kV or customer-specified offshore rating
Conductor
Tinned copper conductor
Insulation / jacket
SHF2 or mud-resistant offshore sheath
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

NEK 606 BFOU Fire Resistant Cable is a specific marine and offshore cable construction for emergency systems, fire and gas systems, offshore process control applications, using tinned copper conductor, mica fire barrier with epr or hepr insulation, optional individual and/or collective screen, braid or armour according to offshore route and shf2 or mud-resistant offshore sheath.

  • Emergency systems
  • Fire and gas systems
  • Offshore process control
  • Critical platform circuits

Cable Construction

  • Tinned copper conductor
  • Mica fire barrier with EPR or HEPR insulation
  • Optional individual and/or collective screen
  • Braid or armour according to offshore route
  • SHF2 or mud-resistant offshore sheath
  • Marine-grade marking and packing according to project cable schedule

Specifications

Select a cable size.

Each row below is a complete specification sheet — 18 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Instrumentation specification references

Each row is an exact marine/offshore cable specification sheet. Confirm class approval, installation zone, mud exposure and fire requirement before quotation.

  • Circuit typeInstrumentation
  • Voltage class250 V, 0.6/1 kV or customer-specified offshore rating
  • Fire / mud behaviorFire resistant, flame retardant, low smoke and halogen-free construction
Cable referenceCore / pair designConductor sizeOD guide
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 1 pair 0.75 mm²1 pair0.75 mm²15 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 1 pair 1.0 mm²1 pair1.0 mm²15 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 1 pair 1.5 mm²1 pair1.5 mm²16 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 2 pair 0.75 mm²2 pair0.75 mm²16 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 2 pair 1.0 mm²2 pair1.0 mm²17 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 2 pair 1.5 mm²2 pair1.5 mm²17 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 4 pair 0.75 mm²4 pair0.75 mm²19 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 4 pair 1.0 mm²4 pair1.0 mm²19 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 4 pair 1.5 mm²4 pair1.5 mm²20 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 8 pair 0.75 mm²8 pair0.75 mm²24 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 8 pair 1.0 mm²8 pair1.0 mm²25 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 8 pair 1.5 mm²8 pair1.5 mm²25 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 12 pair 0.75 mm²12 pair0.75 mm²29 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 12 pair 1.0 mm²12 pair1.0 mm²30 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 12 pair 1.5 mm²12 pair1.5 mm²30 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 24 pair 0.75 mm²24 pair0.75 mm²45 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 24 pair 1.0 mm²24 pair1.0 mm²45 mm
BFOU Instrumentation 250 V, 0.6/1 kV or customer-specified offshore rating 24 pair 1.5 mm²24 pair1.5 mm²46 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
