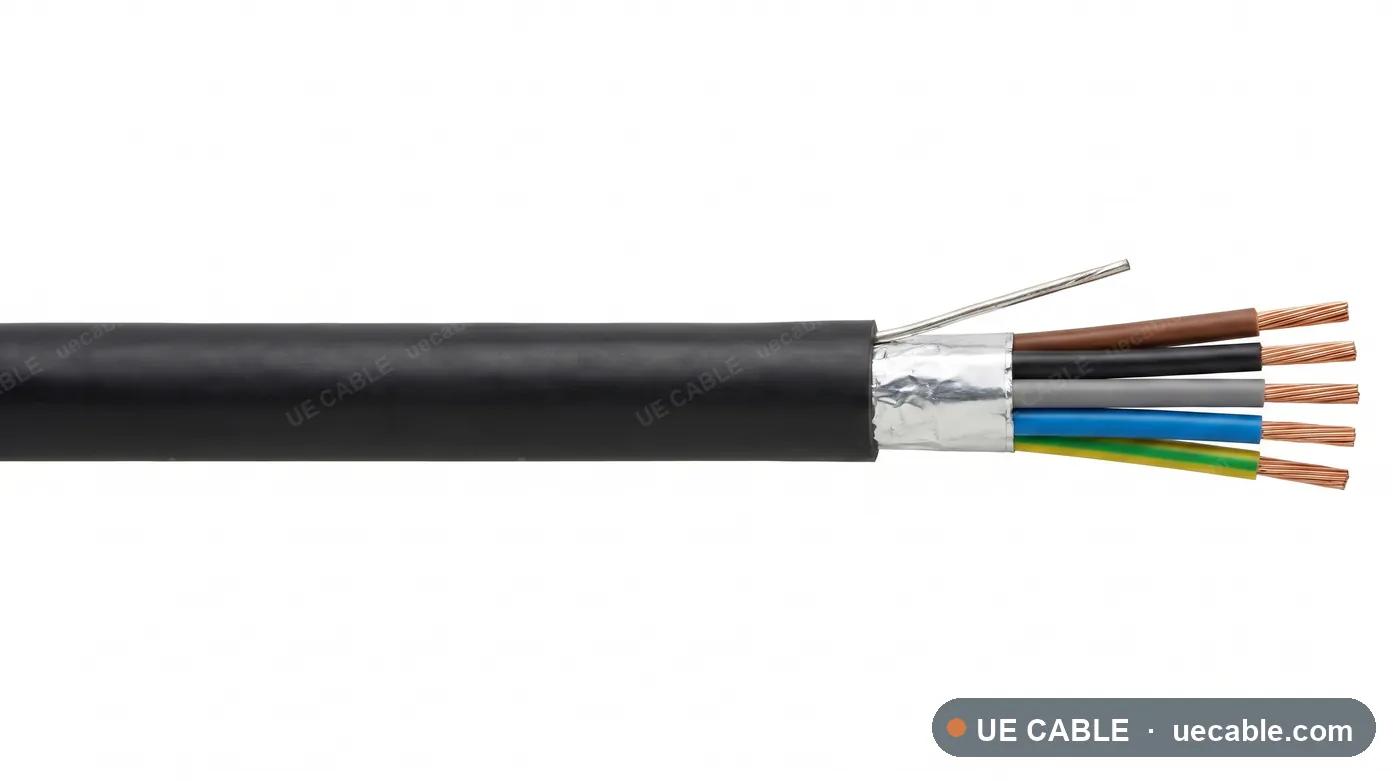

JIS C 3410 Shipboard Cable cable construction reference

Japanese shipboard cable

JIS C 3410 Shipboard Cable

JIS C 3410 Shipboard Cable is a specific marine and offshore cable construction for shipbuilding, marine equipment, control panels applications, using tinned copper conductor, epr, xlpe or pvc according to cable type insulation, optional screen for signal circuits, optional braid or armour according to installation route and marine-grade pvc, shf1 or shf2 outer sheath.

Standard
JIS C 3410
Voltage class
Shipboard low-voltage and customer-specified ratings
Conductor
Tinned copper conductor
Insulation / jacket
Marine-grade PVC, SHF1 or SHF2
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

JIS C 3410 Shipboard Cable is a specific marine and offshore cable construction for shipbuilding, marine equipment, control panels applications, using tinned copper conductor, epr, xlpe or pvc according to cable type insulation, optional screen for signal circuits, optional braid or armour according to installation route and marine-grade pvc, shf1 or shf2 outer sheath.

  • Shipbuilding
  • Marine equipment
  • Control panels
  • Vessel fixed wiring

Cable Construction

  • Tinned copper conductor
  • EPR, XLPE or PVC according to cable type insulation
  • Optional screen for signal circuits
  • Optional braid or armour according to installation route
  • Marine-grade PVC, SHF1 or SHF2 outer sheath
  • Marine-grade marking and packing according to project cable schedule

Specifications

Select a cable size.

Each row below is a complete specification sheet — 18 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Instrumentation specification references

Each row is an exact marine/offshore cable specification sheet. Confirm class approval, installation zone, mud exposure and fire requirement before quotation.

  • Circuit typeInstrumentation
  • Voltage classShipboard low-voltage and customer-specified ratings
  • Fire / mud behaviorMarine flame retardant sheath options
Cable referenceCore / pair designConductor sizeOD guide
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 1 pair 0.75 mm²1 pair0.75 mm²15 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 1 pair 1.0 mm²1 pair1.0 mm²15 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 1 pair 1.5 mm²1 pair1.5 mm²16 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 2 pair 0.75 mm²2 pair0.75 mm²16 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 2 pair 1.0 mm²2 pair1.0 mm²17 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 2 pair 1.5 mm²2 pair1.5 mm²17 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 4 pair 0.75 mm²4 pair0.75 mm²19 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 4 pair 1.0 mm²4 pair1.0 mm²19 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 4 pair 1.5 mm²4 pair1.5 mm²20 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 8 pair 0.75 mm²8 pair0.75 mm²24 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 8 pair 1.0 mm²8 pair1.0 mm²25 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 8 pair 1.5 mm²8 pair1.5 mm²25 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 12 pair 0.75 mm²12 pair0.75 mm²29 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 12 pair 1.0 mm²12 pair1.0 mm²30 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 12 pair 1.5 mm²12 pair1.5 mm²30 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 24 pair 0.75 mm²24 pair0.75 mm²45 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 24 pair 1.0 mm²24 pair1.0 mm²45 mm
JIS C 3410 shipboard cable Instrumentation Shipboard low-voltage and customer-specified ratings 24 pair 1.5 mm²24 pair1.5 mm²46 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
