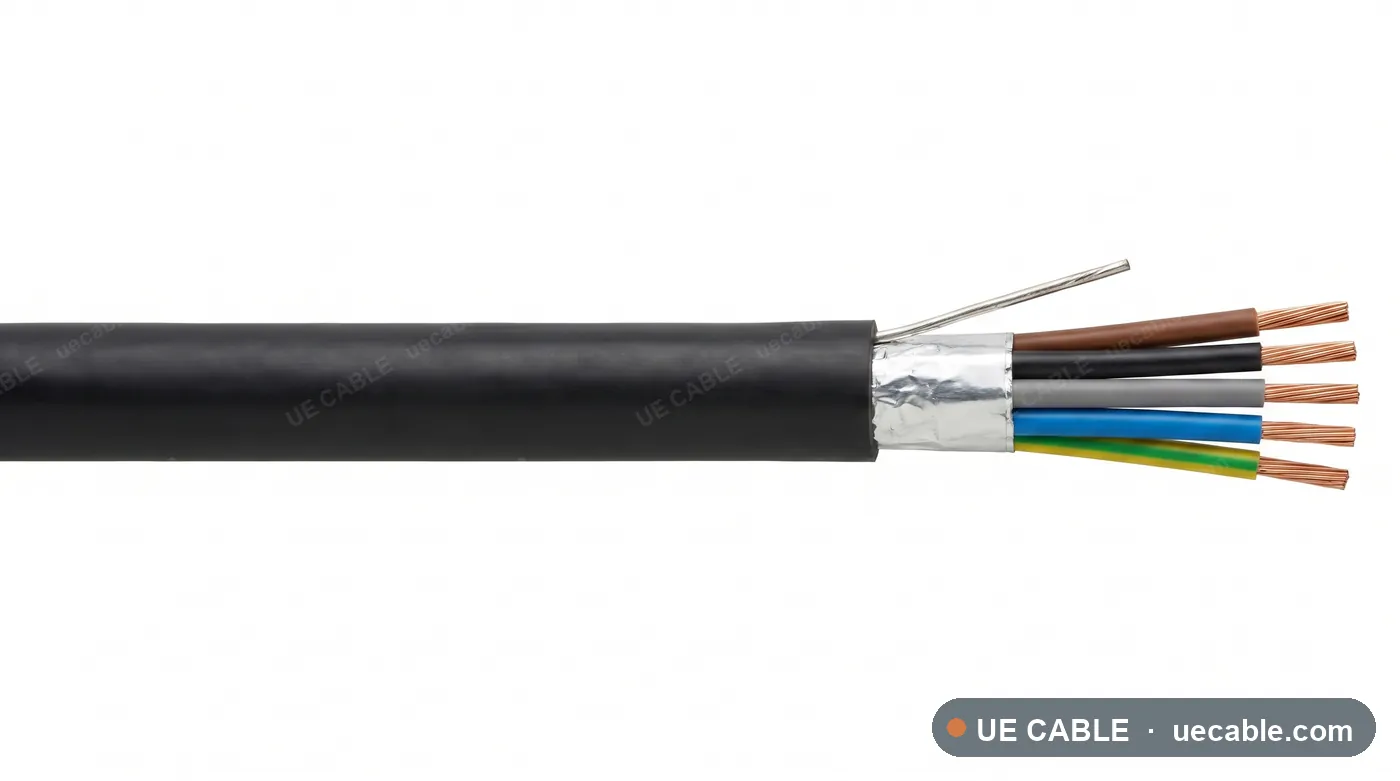

BS 6883 Shipwiring Power And Control Cable cable construction reference

British shipwiring cable

BS 6883 Shipwiring Power And Control Cable

BS 6883 Shipwiring Power And Control Cable is a specific marine and offshore cable construction for shipboard fixed wiring, lighting circuits, power circuits applications, using tinned copper conductor, epr, xlpe or hepr insulation, optional screen for control and instrumentation circuits, optional braid or armour according to route and shf1, shf2 or oil-resistant compound outer sheath.

Standard
BS 6883
Voltage class
Up to 8.7/15 kV depending on construction
Conductor
Tinned copper conductor
Insulation / jacket
SHF1, SHF2 or oil-resistant compound
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

BS 6883 Shipwiring Power And Control Cable is a specific marine and offshore cable construction for shipboard fixed wiring, lighting circuits, power circuits applications, using tinned copper conductor, epr, xlpe or hepr insulation, optional screen for control and instrumentation circuits, optional braid or armour according to route and shf1, shf2 or oil-resistant compound outer sheath.

  • Shipboard fixed wiring
  • Lighting circuits
  • Power circuits
  • Control circuits

Cable Construction

  • Tinned copper conductor
  • EPR, XLPE or HEPR insulation
  • Optional screen for control and instrumentation circuits
  • Optional braid or armour according to route
  • SHF1, SHF2 or oil-resistant compound outer sheath
  • Marine-grade marking and packing according to project cable schedule

Specifications

Select a cable size.

Each row below is a complete specification sheet — 18 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Instrumentation specification references

Each row is an exact marine/offshore cable specification sheet. Confirm class approval, installation zone, mud exposure and fire requirement before quotation.

  • Circuit typeInstrumentation
  • Voltage classUp to 8.7/15 kV depending on construction
  • Fire / mud behaviorFlame retardant and low smoke halogen-free sheath options
Cable referenceCore / pair designConductor sizeOD guide
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 1 pair 0.75 mm²1 pair0.75 mm²15 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 1 pair 1.0 mm²1 pair1.0 mm²15 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 1 pair 1.5 mm²1 pair1.5 mm²16 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 2 pair 0.75 mm²2 pair0.75 mm²16 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 2 pair 1.0 mm²2 pair1.0 mm²17 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 2 pair 1.5 mm²2 pair1.5 mm²17 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 4 pair 0.75 mm²4 pair0.75 mm²19 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 4 pair 1.0 mm²4 pair1.0 mm²19 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 4 pair 1.5 mm²4 pair1.5 mm²20 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 8 pair 0.75 mm²8 pair0.75 mm²24 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 8 pair 1.0 mm²8 pair1.0 mm²25 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 8 pair 1.5 mm²8 pair1.5 mm²25 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 12 pair 0.75 mm²12 pair0.75 mm²29 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 12 pair 1.0 mm²12 pair1.0 mm²30 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 12 pair 1.5 mm²12 pair1.5 mm²30 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 24 pair 0.75 mm²24 pair0.75 mm²45 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 24 pair 1.0 mm²24 pair1.0 mm²45 mm
BS 6883 shipwiring cable Instrumentation Up to 8.7/15 kV depending on construction 24 pair 1.5 mm²24 pair1.5 mm²46 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
