Shipboard power cable

IEC 60092-353 Marine Power Cable

IEC 60092-353 Marine Power Cable is a specific marine and offshore cable construction for shipboard power, marine switchboards, auxiliary systems applications, using tinned copper conductor, xlpe or epr insulation, optional braid or armour according to route and shf1 or shf2 outer sheath.

Standard: IEC 60092-353
Voltage class: 0.6/1 kV
Conductor: Tinned copper conductor
Insulation / jacket: SHF1 or SHF2

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Shipboard power
Marine switchboards
Auxiliary systems
Fixed vessel wiring

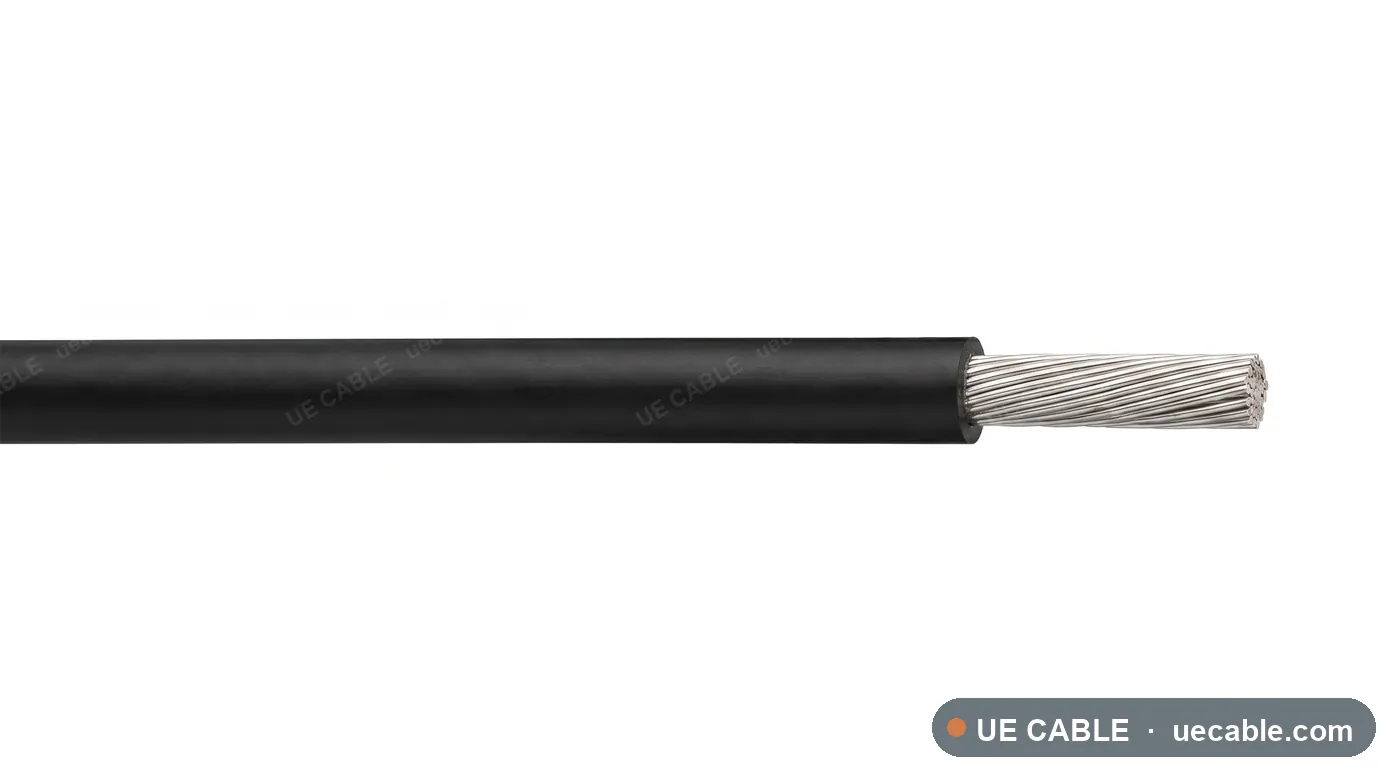

Cable Construction

Tinned copper conductor
XLPE or EPR insulation
Optional braid or armour according to route
SHF1 or SHF2 outer sheath
Marine-grade marking and packing according to project cable schedule

Specifications

Select a cable size.

Each row below is a complete specification sheet — 48 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Power specification references

Each row is an exact marine/offshore cable specification sheet. Confirm class approval, installation zone, mud exposure and fire requirement before quotation.

Circuit typePower
Voltage class0.6/1 kV
Fire / mud behaviorFlame retardant, low smoke and halogen-free sheath options

Cable reference	Core / pair design	Conductor size	OD guide
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 1.5 mm²	1 core	1.5 mm²	18 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 2.5 mm²	1 core	2.5 mm²	19 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 4 mm²	1 core	4 mm²	20 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 6 mm²	1 core	6 mm²	20 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 10 mm²	1 core	10 mm²	22 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 16 mm²	1 core	16 mm²	24 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 25 mm²	1 core	25 mm²	26 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 35 mm²	1 core	35 mm²	28 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 50 mm²	1 core	50 mm²	30 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 70 mm²	1 core	70 mm²	33 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 95 mm²	1 core	95 mm²	36 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 1 core 120 mm²	1 core	120 mm²	38 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 1.5 mm²	2 core	1.5 mm²	19 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 2.5 mm²	2 core	2.5 mm²	20 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 4 mm²	2 core	4 mm²	21 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 6 mm²	2 core	6 mm²	22 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 10 mm²	2 core	10 mm²	23 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 16 mm²	2 core	16 mm²	25 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 25 mm²	2 core	25 mm²	27 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 35 mm²	2 core	35 mm²	29 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 50 mm²	2 core	50 mm²	31 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 70 mm²	2 core	70 mm²	34 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 95 mm²	2 core	95 mm²	37 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 2 core 120 mm²	2 core	120 mm²	40 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 1.5 mm²	3 core	1.5 mm²	20 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 2.5 mm²	3 core	2.5 mm²	21 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 4 mm²	3 core	4 mm²	22 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 6 mm²	3 core	6 mm²	23 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 10 mm²	3 core	10 mm²	25 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 16 mm²	3 core	16 mm²	26 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 25 mm²	3 core	25 mm²	28 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 35 mm²	3 core	35 mm²	30 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 50 mm²	3 core	50 mm²	33 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 70 mm²	3 core	70 mm²	35 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 95 mm²	3 core	95 mm²	38 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 3 core 120 mm²	3 core	120 mm²	41 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 1.5 mm²	4 core	1.5 mm²	22 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 2.5 mm²	4 core	2.5 mm²	23 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 4 mm²	4 core	4 mm²	23 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 6 mm²	4 core	6 mm²	24 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 10 mm²	4 core	10 mm²	26 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 16 mm²	4 core	16 mm²	28 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 25 mm²	4 core	25 mm²	30 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 35 mm²	4 core	35 mm²	32 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 50 mm²	4 core	50 mm²	34 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 70 mm²	4 core	70 mm²	37 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 95 mm²	4 core	95 mm²	40 mm
IEC 60092-353 marine power cable Power 0.6/1 kV 4 core 120 mm²	4 core	120 mm²	42 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
