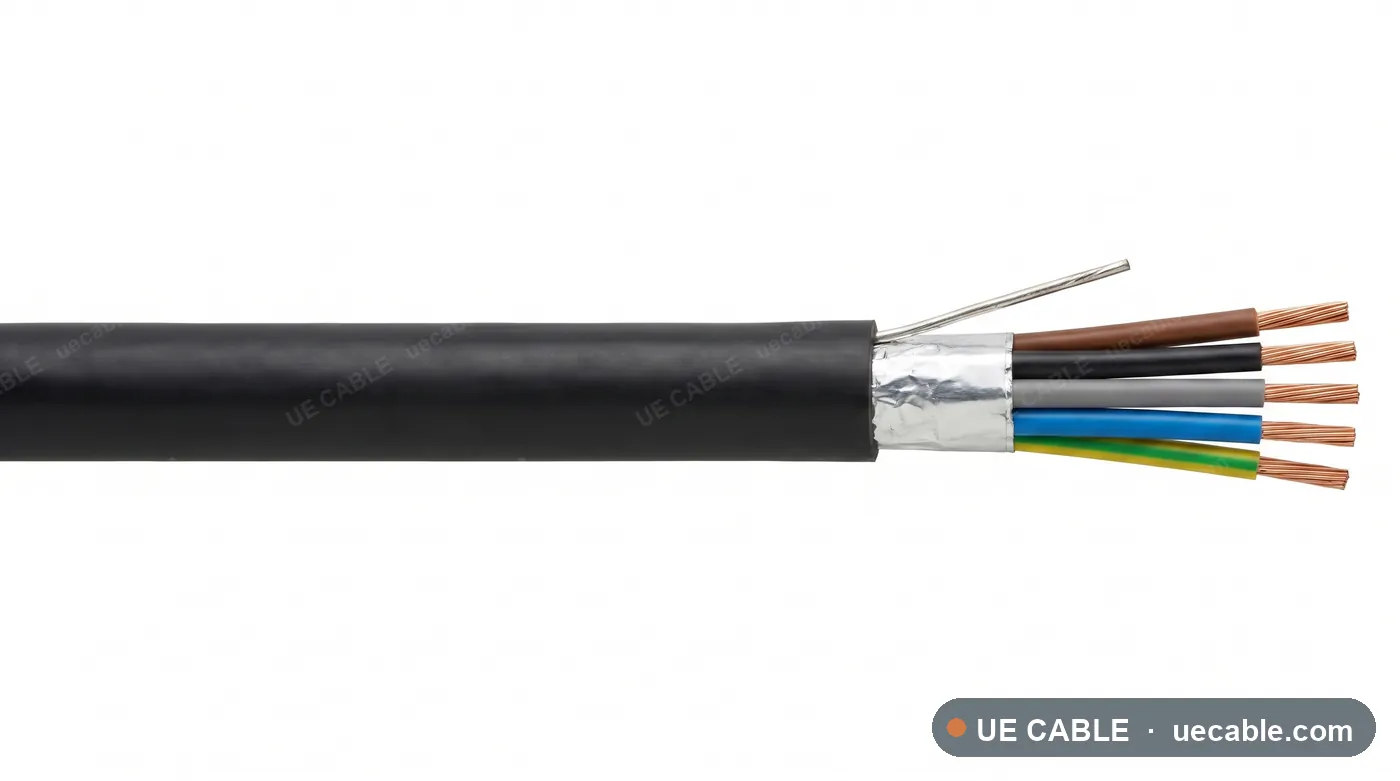

BS 7917 Fire Resistant Offshore Cable cable construction reference

Fire resistant offshore cable

BS 7917 Fire Resistant Offshore Cable

BS 7917 Fire Resistant Offshore Cable is a specific marine and offshore cable construction for emergency shutdown, fire and gas systems, emergency lighting applications, using tinned copper conductor, mica fire barrier with epr, xlpe or hepr insulation, optional screen for instrumentation circuits, optional braid or armour according to installation route and shf1, shf2 or mud-resistant compound outer sheath.

Standard
BS 7917
Voltage class
150/250 V to 0.6/1 kV and customer-specified ratings
Conductor
Tinned copper conductor
Insulation / jacket
SHF1, SHF2 or mud-resistant compound
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

BS 7917 Fire Resistant Offshore Cable is a specific marine and offshore cable construction for emergency shutdown, fire and gas systems, emergency lighting applications, using tinned copper conductor, mica fire barrier with epr, xlpe or hepr insulation, optional screen for instrumentation circuits, optional braid or armour according to installation route and shf1, shf2 or mud-resistant compound outer sheath.

  • Emergency shutdown
  • Fire and gas systems
  • Emergency lighting
  • Critical offshore circuits

Cable Construction

  • Tinned copper conductor
  • Mica fire barrier with EPR, XLPE or HEPR insulation
  • Optional screen for instrumentation circuits
  • Optional braid or armour according to installation route
  • SHF1, SHF2 or mud-resistant compound outer sheath
  • Marine-grade marking and packing according to project cable schedule

Specifications

Select a cable size.

Each row below is a complete specification sheet — 18 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Instrumentation specification references

Each row is an exact marine/offshore cable specification sheet. Confirm class approval, installation zone, mud exposure and fire requirement before quotation.

  • Circuit typeInstrumentation
  • Voltage class150/250 V to 0.6/1 kV and customer-specified ratings
  • Fire / mud behaviorFire resistant circuit integrity construction
Cable referenceCore / pair designConductor sizeOD guide
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 1 pair 0.75 mm²1 pair0.75 mm²15 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 1 pair 1.0 mm²1 pair1.0 mm²15 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 1 pair 1.5 mm²1 pair1.5 mm²16 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 2 pair 0.75 mm²2 pair0.75 mm²16 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 2 pair 1.0 mm²2 pair1.0 mm²17 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 2 pair 1.5 mm²2 pair1.5 mm²17 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 4 pair 0.75 mm²4 pair0.75 mm²19 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 4 pair 1.0 mm²4 pair1.0 mm²19 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 4 pair 1.5 mm²4 pair1.5 mm²20 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 8 pair 0.75 mm²8 pair0.75 mm²24 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 8 pair 1.0 mm²8 pair1.0 mm²25 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 8 pair 1.5 mm²8 pair1.5 mm²25 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 12 pair 0.75 mm²12 pair0.75 mm²29 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 12 pair 1.0 mm²12 pair1.0 mm²30 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 12 pair 1.5 mm²12 pair1.5 mm²30 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 24 pair 0.75 mm²24 pair0.75 mm²45 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 24 pair 1.0 mm²24 pair1.0 mm²45 mm
BS 7917 fire resistant offshore cable Instrumentation 150/250 V to 0.6/1 kV and customer-specified ratings 24 pair 1.5 mm²24 pair1.5 mm²46 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
