Mud resistant offshore cable

NEK 606 RFOU Power And Control Cable

NEK 606 RFOU Power And Control Cable is a specific marine and offshore cable construction for offshore platforms, drilling units, fpso projects applications, using tinned copper conductor, epr or hepr insulation, braid or armour according to offshore route and shf2 or mud-resistant offshore sheath.

Standard: NEK 606
Voltage class: 0.6/1 kV
Conductor: Tinned copper conductor
Insulation / jacket: SHF2 or mud-resistant offshore sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

Offshore platforms
Drilling units
FPSO projects
Mud and oil exposed routes

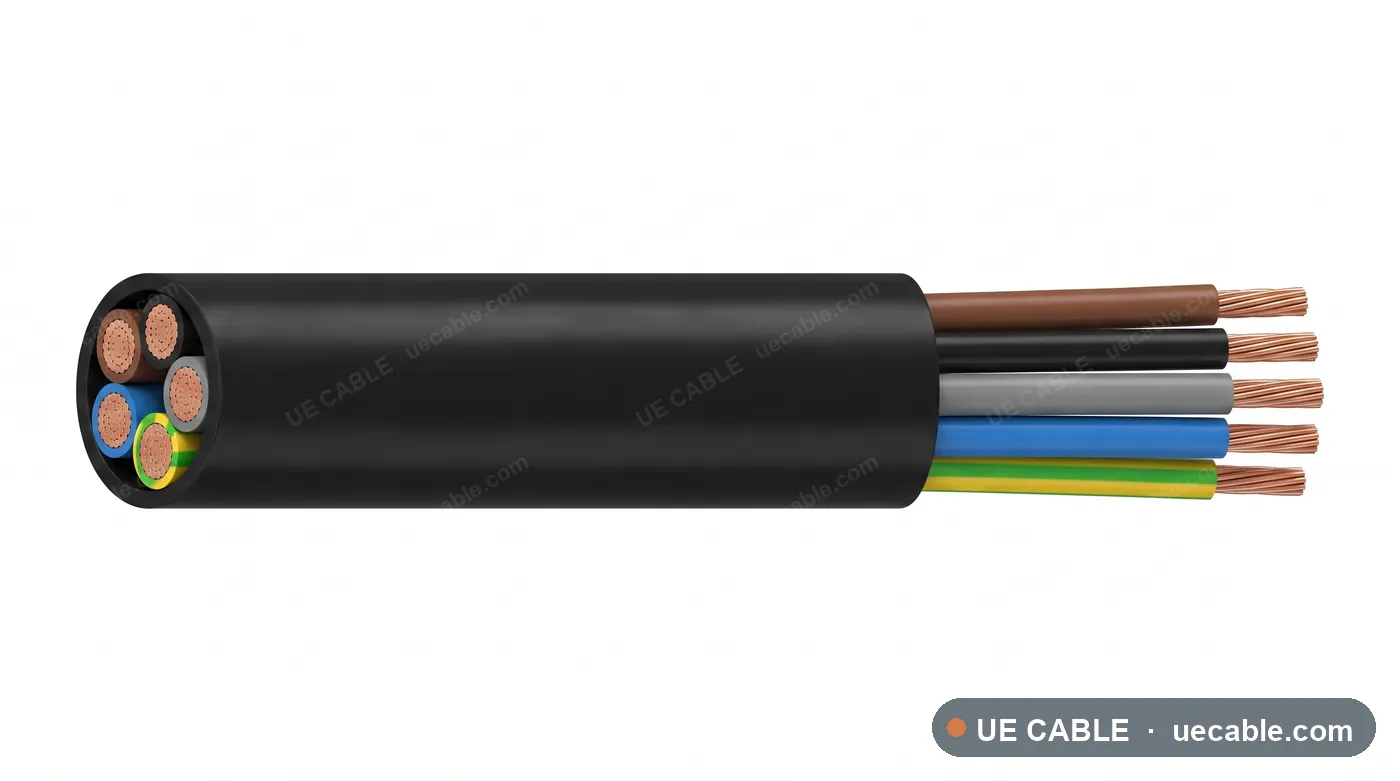

Cable Construction

Tinned copper conductor
EPR or HEPR insulation
Braid or armour according to offshore route
SHF2 or mud-resistant offshore sheath
Marine-grade marking and packing according to project cable schedule

Specifications

Select a cable size.

Each row below is a complete specification sheet — 35 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Control specification references

Each row is an exact marine/offshore cable specification sheet. Confirm class approval, installation zone, mud exposure and fire requirement before quotation.

Circuit typeControl
Voltage class0.6/1 kV
Fire / mud behaviorFlame retardant, low smoke and halogen-free offshore construction

Cable reference	Core / pair design	Conductor size	OD guide
RFOU Control 0.6/1 kV 2 core 1.0 mm²	2 core	1.0 mm²	16 mm
RFOU Control 0.6/1 kV 2 core 1.5 mm²	2 core	1.5 mm²	16 mm
RFOU Control 0.6/1 kV 2 core 2.5 mm²	2 core	2.5 mm²	17 mm
RFOU Control 0.6/1 kV 2 core 4 mm²	2 core	4 mm²	18 mm
RFOU Control 0.6/1 kV 2 core 6 mm²	2 core	6 mm²	19 mm
RFOU Control 0.6/1 kV 3 core 1.0 mm²	3 core	1.0 mm²	17 mm
RFOU Control 0.6/1 kV 3 core 1.5 mm²	3 core	1.5 mm²	17 mm
RFOU Control 0.6/1 kV 3 core 2.5 mm²	3 core	2.5 mm²	18 mm
RFOU Control 0.6/1 kV 3 core 4 mm²	3 core	4 mm²	19 mm
RFOU Control 0.6/1 kV 3 core 6 mm²	3 core	6 mm²	20 mm
RFOU Control 0.6/1 kV 4 core 1.0 mm²	4 core	1.0 mm²	18 mm
RFOU Control 0.6/1 kV 4 core 1.5 mm²	4 core	1.5 mm²	19 mm
RFOU Control 0.6/1 kV 4 core 2.5 mm²	4 core	2.5 mm²	20 mm
RFOU Control 0.6/1 kV 4 core 4 mm²	4 core	4 mm²	20 mm
RFOU Control 0.6/1 kV 4 core 6 mm²	4 core	6 mm²	21 mm
RFOU Control 0.6/1 kV 7 core 1.0 mm²	7 core	1.0 mm²	22 mm
RFOU Control 0.6/1 kV 7 core 1.5 mm²	7 core	1.5 mm²	23 mm
RFOU Control 0.6/1 kV 7 core 2.5 mm²	7 core	2.5 mm²	23 mm
RFOU Control 0.6/1 kV 7 core 4 mm²	7 core	4 mm²	24 mm
RFOU Control 0.6/1 kV 7 core 6 mm²	7 core	6 mm²	25 mm
RFOU Control 0.6/1 kV 12 core 1.0 mm²	12 core	1.0 mm²	29 mm
RFOU Control 0.6/1 kV 12 core 1.5 mm²	12 core	1.5 mm²	29 mm
RFOU Control 0.6/1 kV 12 core 2.5 mm²	12 core	2.5 mm²	30 mm
RFOU Control 0.6/1 kV 12 core 4 mm²	12 core	4 mm²	31 mm
RFOU Control 0.6/1 kV 12 core 6 mm²	12 core	6 mm²	32 mm
RFOU Control 0.6/1 kV 19 core 1.0 mm²	19 core	1.0 mm²	38 mm
RFOU Control 0.6/1 kV 19 core 1.5 mm²	19 core	1.5 mm²	38 mm
RFOU Control 0.6/1 kV 19 core 2.5 mm²	19 core	2.5 mm²	39 mm
RFOU Control 0.6/1 kV 19 core 4 mm²	19 core	4 mm²	40 mm
RFOU Control 0.6/1 kV 19 core 6 mm²	19 core	6 mm²	41 mm
RFOU Control 0.6/1 kV 27 core 1.0 mm²	27 core	1.0 mm²	48 mm
RFOU Control 0.6/1 kV 27 core 1.5 mm²	27 core	1.5 mm²	49 mm
RFOU Control 0.6/1 kV 27 core 2.5 mm²	27 core	2.5 mm²	49 mm
RFOU Control 0.6/1 kV 27 core 4 mm²	27 core	4 mm²	50 mm
RFOU Control 0.6/1 kV 27 core 6 mm²	27 core	6 mm²	51 mm

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
