High-voltage-class MV ABC

IEC 60502-2 Screened MV Aerial Bundled Cable 19/33kV

IEC 60502-2 Screened MV Aerial Bundled Cable 19/33kV is an aerial bundled cable construction for 33 kv overhead distribution, utility feeders, rural mv networks, using aluminium phase conductors, xlpe insulation with semi-conductive screens, galvanised steel support conductor and black hdpe outer sheath.

Standard: IEC 60502-2
Voltage class: 19/33 kV
Conductor: 50 mm² aluminium, 70 mm² aluminium, 95 mm² aluminium, 120 mm² aluminium, 150 mm² aluminium, 185 mm² aluminium, 240 mm² aluminium
Insulation / jacket: Black HDPE outer sheath

Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

33 kV overhead distribution
Utility feeders
Rural MV networks
Substation overhead exits

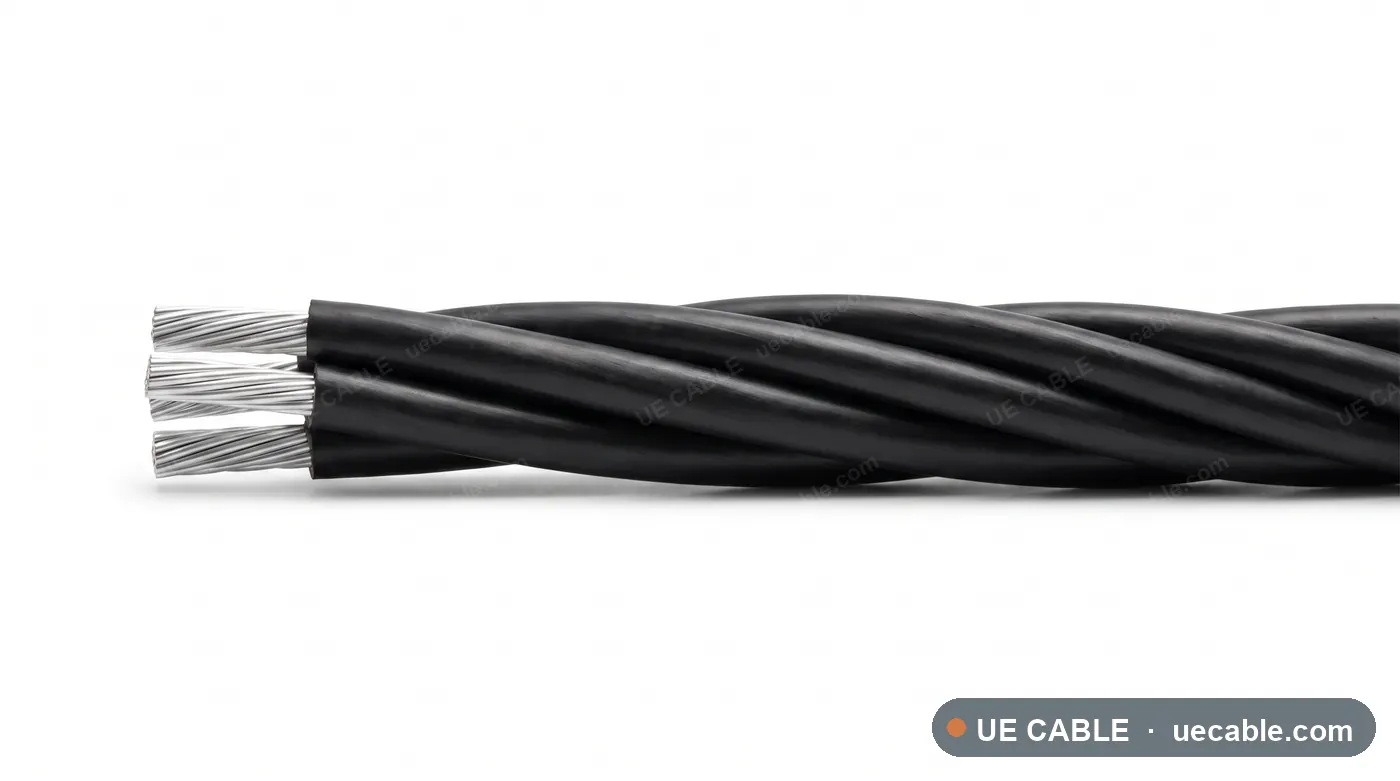

Cable Construction

Class 2 stranded aluminium phase conductor
XLPE insulation with semi-conductive screens
Galvanised steel support conductor
Copper wire or copper tape metallic screen
Black HDPE outer sheath
Medium-voltage overhead distribution and exposed utility routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 7 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Aluminium phase conductor bundle

Each row is an exact aerial bundled cable cable specification sheet. Shared standard, voltage family, insulation, messenger and route data are listed above.

Voltage class19/33 kV
Bundle layout3 phase + support conductor
InsulationXLPE insulation with semi-conductive screens
Screen / supportCopper wire or copper tape metallic screen

Cable reference	Phase conductor	Neutral / messenger	Max DC resistance at 20 °C	Bundle OD guide	Weight guide
IEC 60502-2 screened MV ABC 19/33 kV 19/33 kV 3 phase + support conductor 50 mm² 25 mm² galvanised steel support conductor	50 mm² stranded aluminium phase conductor	25 mm² galvanised steel support conductor	0.641 Ω/km	66 mm	3.07 kg/m
IEC 60502-2 screened MV ABC 19/33 kV 19/33 kV 3 phase + support conductor 70 mm² 25 mm² galvanised steel support conductor	70 mm² stranded aluminium phase conductor	25 mm² galvanised steel support conductor	0.443 Ω/km	69 mm	3.33 kg/m
IEC 60502-2 screened MV ABC 19/33 kV 19/33 kV 3 phase + support conductor 95 mm² 50 mm² galvanised steel support conductor	95 mm² stranded aluminium phase conductor	50 mm² galvanised steel support conductor	0.320 Ω/km	72 mm	3.75 kg/m
IEC 60502-2 screened MV ABC 19/33 kV 19/33 kV 3 phase + support conductor 120 mm² 50 mm² galvanised steel support conductor	120 mm² stranded aluminium phase conductor	50 mm² galvanised steel support conductor	0.253 Ω/km	75 mm	4.09 kg/m
IEC 60502-2 screened MV ABC 19/33 kV 19/33 kV 3 phase + support conductor 150 mm² 50 mm² galvanised steel support conductor	150 mm² stranded aluminium phase conductor	50 mm² galvanised steel support conductor	0.206 Ω/km	77 mm	4.50 kg/m
IEC 60502-2 screened MV ABC 19/33 kV 19/33 kV 3 phase + support conductor 185 mm² 50 mm² galvanised steel support conductor	185 mm² stranded aluminium phase conductor	50 mm² galvanised steel support conductor	0.164 Ω/km	80 mm	4.97 kg/m
IEC 60502-2 screened MV ABC 19/33 kV 19/33 kV 3 phase + support conductor 240 mm² 50 mm² galvanised steel support conductor	240 mm² stranded aluminium phase conductor	50 mm² galvanised steel support conductor	0.125 Ω/km	84 mm	5.71 kg/m

Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
