Two-conductor service drop

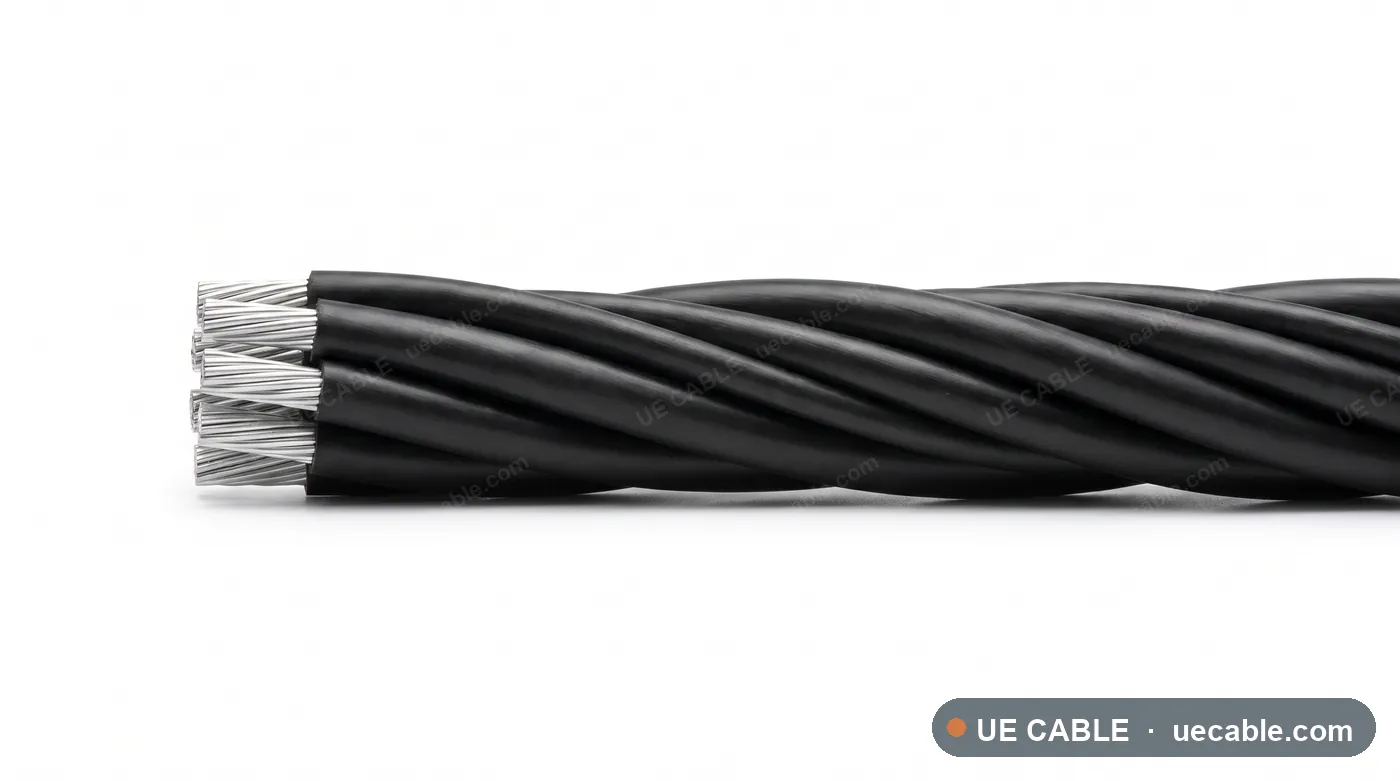

Duplex Overhead Service Drop ABC Cable is an aerial bundled cable construction for residential service drops, secondary overhead service, temporary service, using aluminium phase conductors, weather resistant xlpe insulation, bare acsr or aaac neutral messenger and black weather resistant xlpe surface.
Cable Type Data
Duplex Overhead Service Drop ABC Cable is an aerial bundled cable construction for residential service drops, secondary overhead service, temporary service, using aluminium phase conductors, weather resistant xlpe insulation, bare acsr or aaac neutral messenger and black weather resistant xlpe surface.
Specifications
Each row below is a complete specification sheet — 5 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.
Each row is an exact aerial bundled cable cable specification sheet. Shared standard, voltage family, insulation, messenger and route data are listed above.
| Cable reference | Phase conductor | Neutral / messenger | Max DC resistance at 20 °C | Bundle OD guide | Weight guide |
|---|---|---|---|---|---|
| Duplex service drop ABC 600 V Duplex service drop 16 mm² ACSR neutral messenger 6/1 | 16 mm² stranded aluminium phase conductor | ACSR neutral messenger 6/1 | 1.91 Ω/km | 21 mm | 0.44 kg/m |
| Duplex service drop ABC 600 V Duplex service drop 25 mm² ACSR neutral messenger 6/1 | 25 mm² stranded aluminium phase conductor | ACSR neutral messenger 6/1 | 1.20 Ω/km | 22 mm | 0.52 kg/m |
| Duplex service drop ABC 600 V Duplex service drop 35 mm² ACSR neutral messenger 6/1 | 35 mm² stranded aluminium phase conductor | ACSR neutral messenger 6/1 | 0.868 Ω/km | 24 mm | 0.61 kg/m |
| Duplex service drop ABC 600 V Duplex service drop 50 mm² ACSR neutral messenger 26/7 | 50 mm² stranded aluminium phase conductor | ACSR neutral messenger 26/7 | 0.641 Ω/km | 25 mm | 0.81 kg/m |
| Duplex service drop ABC 600 V Duplex service drop 70 mm² ACSR neutral messenger 26/7 | 70 mm² stranded aluminium phase conductor | ACSR neutral messenger 26/7 | 0.443 Ω/km | 27 mm | 0.99 kg/m |
Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
