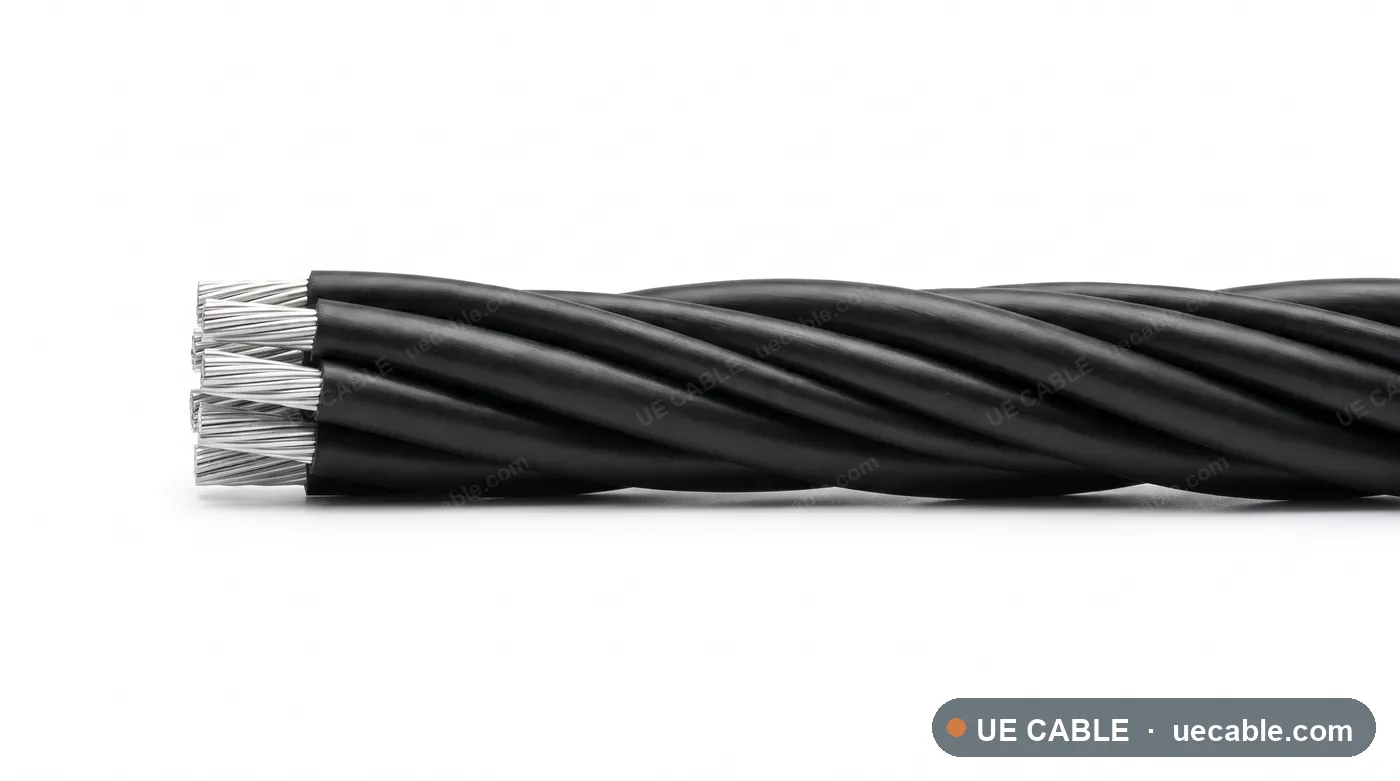

BS 7870-5 LV Aerial Bundled Cable ABC cable construction reference

British standard LV ABC

BS 7870-5 LV Aerial Bundled Cable ABC

BS 7870-5 LV Aerial Bundled Cable ABC is an aerial bundled cable construction for lv overhead distribution, service connections, street lighting, using aluminium phase conductors, xlpe insulation with rib identification, insulated aluminium neutral messenger and black weather resistant xlpe surface.

Standard
BS 7870-5
Voltage class
0.6/1 kV
Conductor
16 mm² aluminium, 25 mm² aluminium, 35 mm² aluminium, 50 mm² aluminium, 70 mm² aluminium, 95 mm² aluminium, 120 mm² aluminium, 150 mm² aluminium
Insulation / jacket
Black weather resistant XLPE surface
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

BS 7870-5 LV Aerial Bundled Cable ABC is an aerial bundled cable construction for lv overhead distribution, service connections, street lighting, using aluminium phase conductors, xlpe insulation with rib identification, insulated aluminium neutral messenger and black weather resistant xlpe surface.

  • LV overhead distribution
  • Service connections
  • Street lighting
  • Rural electrification

Cable Construction

  • Class 2 stranded aluminium phase conductor
  • XLPE insulation with rib identification
  • Insulated aluminium neutral messenger
  • Self-supporting bundled construction
  • Black weather resistant XLPE surface
  • Low-voltage public distribution and service connections

Specifications

Select a cable size.

Each row below is a complete specification sheet — 16 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Aluminium phase conductor bundle

Each row is an exact aerial bundled cable cable specification sheet. Shared standard, voltage family, insulation, messenger and route data are listed above.

  • Voltage class0.6/1 kV
  • InsulationXLPE insulation with rib identification
  • Screen / supportSelf-supporting bundled construction
Cable referenceBundle layoutPhase conductorNeutral / messengerMax DC resistance at 20 °CBundle OD guideWeight guide
BS 7870-5 LV ABC 0.6/1 kV 2 core service bundle 16 mm² 25 mm² insulated aluminium neutral2 core service bundle16 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.91 Ω/km21 mm0.50 kg/m
BS 7870-5 LV ABC 0.6/1 kV 2 core service bundle 25 mm² 25 mm² insulated aluminium neutral2 core service bundle25 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.20 Ω/km22 mm0.58 kg/m
BS 7870-5 LV ABC 0.6/1 kV 2 core service bundle 35 mm² 25 mm² insulated aluminium neutral2 core service bundle35 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral0.868 Ω/km24 mm0.68 kg/m
BS 7870-5 LV ABC 0.6/1 kV 2 core service bundle 50 mm² 50 mm² insulated aluminium neutral2 core service bundle50 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.641 Ω/km25 mm0.89 kg/m
BS 7870-5 LV ABC 0.6/1 kV 2 core service bundle 70 mm² 50 mm² insulated aluminium neutral2 core service bundle70 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.443 Ω/km27 mm1.07 kg/m
BS 7870-5 LV ABC 0.6/1 kV 2 core service bundle 95 mm² 70 mm² insulated aluminium neutral2 core service bundle95 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.320 Ω/km29 mm1.36 kg/m
BS 7870-5 LV ABC 0.6/1 kV 2 core service bundle 120 mm² 70 mm² insulated aluminium neutral2 core service bundle120 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.253 Ω/km30 mm1.58 kg/m
BS 7870-5 LV ABC 0.6/1 kV 2 core service bundle 150 mm² 70 mm² insulated aluminium neutral2 core service bundle150 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.206 Ω/km32 mm1.85 kg/m
BS 7870-5 LV ABC 0.6/1 kV 4 core distribution bundle 16 mm² 25 mm² insulated aluminium neutral4 core distribution bundle16 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.91 Ω/km22 mm0.75 kg/m
BS 7870-5 LV ABC 0.6/1 kV 4 core distribution bundle 25 mm² 25 mm² insulated aluminium neutral4 core distribution bundle25 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.20 Ω/km24 mm0.91 kg/m
BS 7870-5 LV ABC 0.6/1 kV 4 core distribution bundle 35 mm² 25 mm² insulated aluminium neutral4 core distribution bundle35 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral0.868 Ω/km25 mm1.09 kg/m
BS 7870-5 LV ABC 0.6/1 kV 4 core distribution bundle 50 mm² 50 mm² insulated aluminium neutral4 core distribution bundle50 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.641 Ω/km26 mm1.44 kg/m
BS 7870-5 LV ABC 0.6/1 kV 4 core distribution bundle 70 mm² 50 mm² insulated aluminium neutral4 core distribution bundle70 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.443 Ω/km28 mm1.80 kg/m
BS 7870-5 LV ABC 0.6/1 kV 4 core distribution bundle 95 mm² 70 mm² insulated aluminium neutral4 core distribution bundle95 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.320 Ω/km30 mm2.31 kg/m
BS 7870-5 LV ABC 0.6/1 kV 4 core distribution bundle 120 mm² 70 mm² insulated aluminium neutral4 core distribution bundle120 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.253 Ω/km32 mm2.76 kg/m
BS 7870-5 LV ABC 0.6/1 kV 4 core distribution bundle 150 mm² 70 mm² insulated aluminium neutral4 core distribution bundle150 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.206 Ω/km33 mm3.30 kg/m
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
