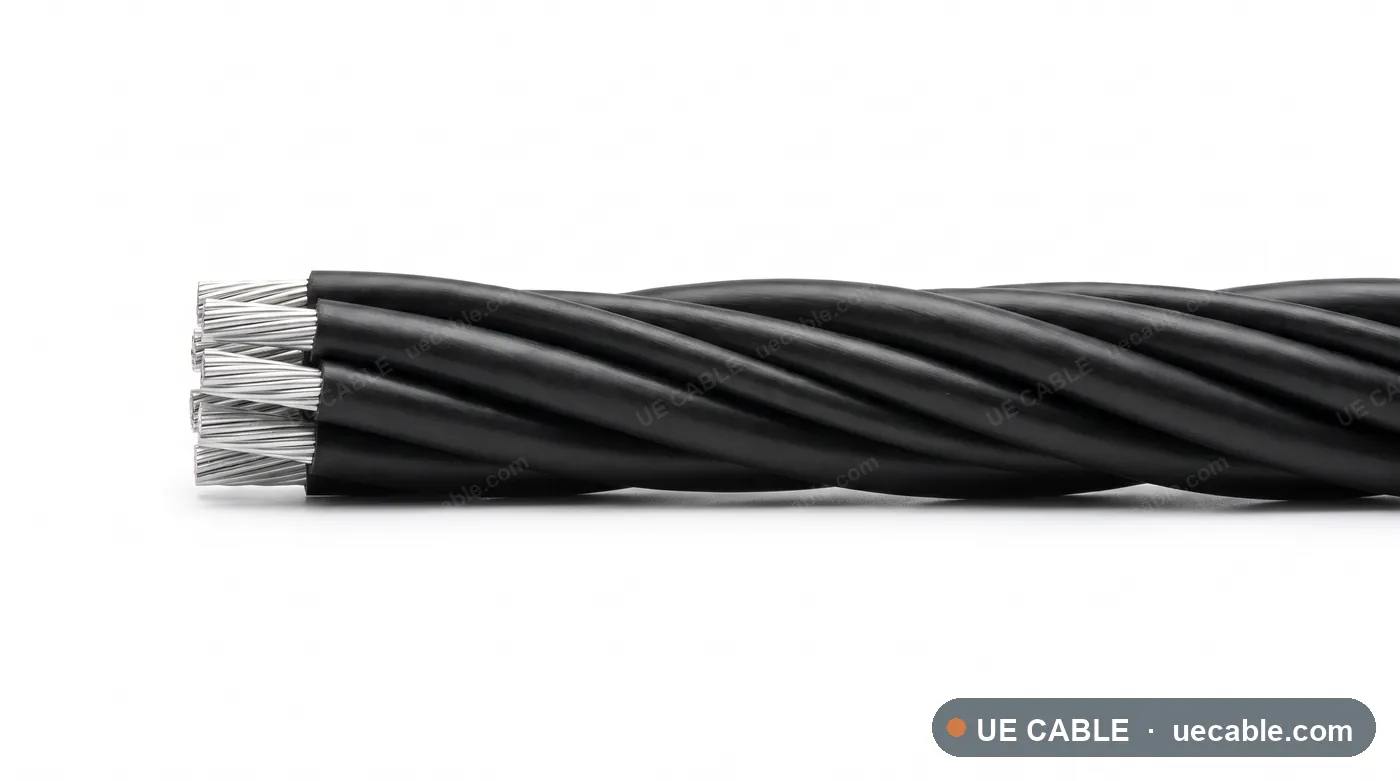

NF C 33-209 Service Aerial Bundled Cable cable construction reference

French standard service bundled conductor

NF C 33-209 Service Aerial Bundled Cable

NF C 33-209 Service Aerial Bundled Cable is an aerial bundled cable construction for building service connections, urban tributary networks, rural service drops, using aluminium phase conductors, xlpe insulation for aerial service conductors, aaac neutral messenger and black weather resistant xlpe surface.

Standard
NF C 33-209
Voltage class
0.6/1 kV
Conductor
16 mm² aluminium, 25 mm² aluminium, 35 mm² aluminium, 50 mm² aluminium, 70 mm² aluminium, 95 mm² aluminium
Insulation / jacket
Black weather resistant XLPE surface
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

NF C 33-209 Service Aerial Bundled Cable is an aerial bundled cable construction for building service connections, urban tributary networks, rural service drops, using aluminium phase conductors, xlpe insulation for aerial service conductors, aaac neutral messenger and black weather resistant xlpe surface.

  • Building service connections
  • Urban tributary networks
  • Rural service drops
  • Pole-to-building supply

Cable Construction

  • Class 2 stranded aluminium phase conductor
  • XLPE insulation for aerial service conductors
  • AAAC neutral messenger
  • Neutral messenger load-bearing bundle
  • Black weather resistant XLPE surface
  • Service connections, tributary networks and building power supply routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 12 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Aluminium phase conductor bundle

Each row is an exact aerial bundled cable cable specification sheet. Shared standard, voltage family, insulation, messenger and route data are listed above.

  • Voltage class0.6/1 kV
  • InsulationXLPE insulation for aerial service conductors
  • Screen / supportNeutral messenger load-bearing bundle
Cable referenceBundle layoutPhase conductorNeutral / messengerMax DC resistance at 20 °CBundle OD guideWeight guide
NF C 33-209 service ABC 0.6/1 kV 2 x phase + neutral messenger 16 mm² 54.6 mm² AAAC neutral messenger2 x phase + neutral messenger16 mm² stranded aluminium phase conductor54.6 mm² AAAC neutral messenger1.91 Ω/km21 mm0.60 kg/m
NF C 33-209 service ABC 0.6/1 kV 2 x phase + neutral messenger 25 mm² 54.6 mm² AAAC neutral messenger2 x phase + neutral messenger25 mm² stranded aluminium phase conductor54.6 mm² AAAC neutral messenger1.20 Ω/km22 mm0.68 kg/m
NF C 33-209 service ABC 0.6/1 kV 2 x phase + neutral messenger 35 mm² 54.6 mm² AAAC neutral messenger2 x phase + neutral messenger35 mm² stranded aluminium phase conductor54.6 mm² AAAC neutral messenger0.868 Ω/km24 mm0.77 kg/m
NF C 33-209 service ABC 0.6/1 kV 2 x phase + neutral messenger 50 mm² 70 mm² AAAC neutral messenger2 x phase + neutral messenger50 mm² stranded aluminium phase conductor70 mm² AAAC neutral messenger0.641 Ω/km25 mm0.95 kg/m
NF C 33-209 service ABC 0.6/1 kV 2 x phase + neutral messenger 70 mm² 70 mm² AAAC neutral messenger2 x phase + neutral messenger70 mm² stranded aluminium phase conductor70 mm² AAAC neutral messenger0.443 Ω/km27 mm1.13 kg/m
NF C 33-209 service ABC 0.6/1 kV 2 x phase + neutral messenger 95 mm² 95 mm² AAAC neutral messenger2 x phase + neutral messenger95 mm² stranded aluminium phase conductor95 mm² AAAC neutral messenger0.320 Ω/km29 mm1.44 kg/m
NF C 33-209 service ABC 0.6/1 kV 4 x phase + neutral messenger 16 mm² 54.6 mm² AAAC neutral messenger4 x phase + neutral messenger16 mm² stranded aluminium phase conductor54.6 mm² AAAC neutral messenger1.91 Ω/km22 mm0.84 kg/m
NF C 33-209 service ABC 0.6/1 kV 4 x phase + neutral messenger 25 mm² 54.6 mm² AAAC neutral messenger4 x phase + neutral messenger25 mm² stranded aluminium phase conductor54.6 mm² AAAC neutral messenger1.20 Ω/km24 mm1.00 kg/m
NF C 33-209 service ABC 0.6/1 kV 4 x phase + neutral messenger 35 mm² 54.6 mm² AAAC neutral messenger4 x phase + neutral messenger35 mm² stranded aluminium phase conductor54.6 mm² AAAC neutral messenger0.868 Ω/km25 mm1.18 kg/m
NF C 33-209 service ABC 0.6/1 kV 4 x phase + neutral messenger 50 mm² 70 mm² AAAC neutral messenger4 x phase + neutral messenger50 mm² stranded aluminium phase conductor70 mm² AAAC neutral messenger0.641 Ω/km26 mm1.50 kg/m
NF C 33-209 service ABC 0.6/1 kV 4 x phase + neutral messenger 70 mm² 70 mm² AAAC neutral messenger4 x phase + neutral messenger70 mm² stranded aluminium phase conductor70 mm² AAAC neutral messenger0.443 Ω/km28 mm1.86 kg/m
NF C 33-209 service ABC 0.6/1 kV 4 x phase + neutral messenger 95 mm² 95 mm² AAAC neutral messenger4 x phase + neutral messenger95 mm² stranded aluminium phase conductor95 mm² AAAC neutral messenger0.320 Ω/km30 mm2.39 kg/m
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.
