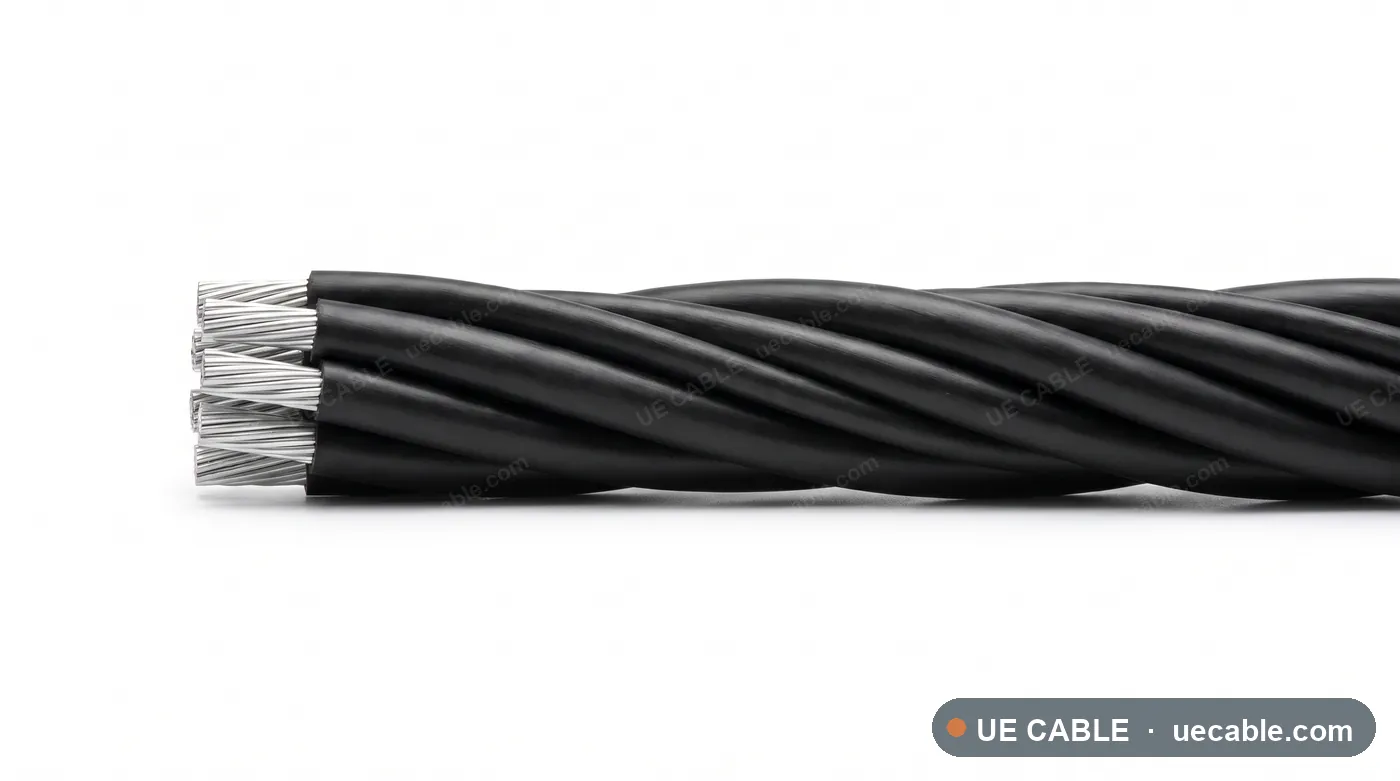

HD 626 S1 LV Aerial Bundled Cable ABC cable construction reference

Low-voltage overhead bundled cable

HD 626 S1 LV Aerial Bundled Cable ABC

HD 626 S1 LV Aerial Bundled Cable ABC is an aerial bundled cable construction for rural distribution, pole-to-pole service, street lighting, using aluminium phase conductors, uv and weather resistant xlpe insulation, insulated aluminium neutral messenger and black weather resistant xlpe surface.

Standard
HD 626 S1
Voltage class
0.6/1 kV
Conductor
16 mm² aluminium, 25 mm² aluminium, 35 mm² aluminium, 50 mm² aluminium, 70 mm² aluminium, 95 mm² aluminium, 120 mm² aluminium
Insulation / jacket
Black weather resistant XLPE surface
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

HD 626 S1 LV Aerial Bundled Cable ABC is an aerial bundled cable construction for rural distribution, pole-to-pole service, street lighting, using aluminium phase conductors, uv and weather resistant xlpe insulation, insulated aluminium neutral messenger and black weather resistant xlpe surface.

  • Rural distribution
  • Pole-to-pole service
  • Street lighting
  • Utility service connections

Cable Construction

  • Class 2 stranded aluminium phase conductor
  • UV and weather resistant XLPE insulation
  • Insulated aluminium neutral messenger
  • Self-supporting bundled construction
  • Black weather resistant XLPE surface
  • Low-voltage overhead distribution and service drop routes

Specifications

Select a cable size.

Each row below is a complete specification sheet — 14 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Aluminium phase conductor bundle

Each row is an exact aerial bundled cable cable specification sheet. Shared standard, voltage family, insulation, messenger and route data are listed above.

  • Voltage class0.6/1 kV
  • InsulationUV and weather resistant XLPE insulation
  • Screen / supportSelf-supporting bundled construction
Cable referenceBundle layoutPhase conductorNeutral / messengerMax DC resistance at 20 °CBundle OD guideWeight guide
HD 626 S1 LV ABC 0.6/1 kV 2 core self-supporting bundle 16 mm² 25 mm² insulated aluminium neutral2 core self-supporting bundle16 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.91 Ω/km21 mm0.50 kg/m
HD 626 S1 LV ABC 0.6/1 kV 2 core self-supporting bundle 25 mm² 25 mm² insulated aluminium neutral2 core self-supporting bundle25 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.20 Ω/km22 mm0.58 kg/m
HD 626 S1 LV ABC 0.6/1 kV 2 core self-supporting bundle 35 mm² 25 mm² insulated aluminium neutral2 core self-supporting bundle35 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral0.868 Ω/km24 mm0.68 kg/m
HD 626 S1 LV ABC 0.6/1 kV 2 core self-supporting bundle 50 mm² 50 mm² insulated aluminium neutral2 core self-supporting bundle50 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.641 Ω/km25 mm0.89 kg/m
HD 626 S1 LV ABC 0.6/1 kV 2 core self-supporting bundle 70 mm² 50 mm² insulated aluminium neutral2 core self-supporting bundle70 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.443 Ω/km27 mm1.07 kg/m
HD 626 S1 LV ABC 0.6/1 kV 2 core self-supporting bundle 95 mm² 70 mm² insulated aluminium neutral2 core self-supporting bundle95 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.320 Ω/km29 mm1.36 kg/m
HD 626 S1 LV ABC 0.6/1 kV 2 core self-supporting bundle 120 mm² 70 mm² insulated aluminium neutral2 core self-supporting bundle120 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.253 Ω/km30 mm1.58 kg/m
HD 626 S1 LV ABC 0.6/1 kV 4 core self-supporting bundle 16 mm² 25 mm² insulated aluminium neutral4 core self-supporting bundle16 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.91 Ω/km22 mm0.75 kg/m
HD 626 S1 LV ABC 0.6/1 kV 4 core self-supporting bundle 25 mm² 25 mm² insulated aluminium neutral4 core self-supporting bundle25 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.20 Ω/km24 mm0.91 kg/m
HD 626 S1 LV ABC 0.6/1 kV 4 core self-supporting bundle 35 mm² 25 mm² insulated aluminium neutral4 core self-supporting bundle35 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral0.868 Ω/km25 mm1.09 kg/m
HD 626 S1 LV ABC 0.6/1 kV 4 core self-supporting bundle 50 mm² 50 mm² insulated aluminium neutral4 core self-supporting bundle50 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.641 Ω/km26 mm1.44 kg/m
HD 626 S1 LV ABC 0.6/1 kV 4 core self-supporting bundle 70 mm² 50 mm² insulated aluminium neutral4 core self-supporting bundle70 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.443 Ω/km28 mm1.80 kg/m
HD 626 S1 LV ABC 0.6/1 kV 4 core self-supporting bundle 95 mm² 70 mm² insulated aluminium neutral4 core self-supporting bundle95 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.320 Ω/km30 mm2.31 kg/m
HD 626 S1 LV ABC 0.6/1 kV 4 core self-supporting bundle 120 mm² 70 mm² insulated aluminium neutral4 core self-supporting bundle120 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.253 Ω/km32 mm2.76 kg/m
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
