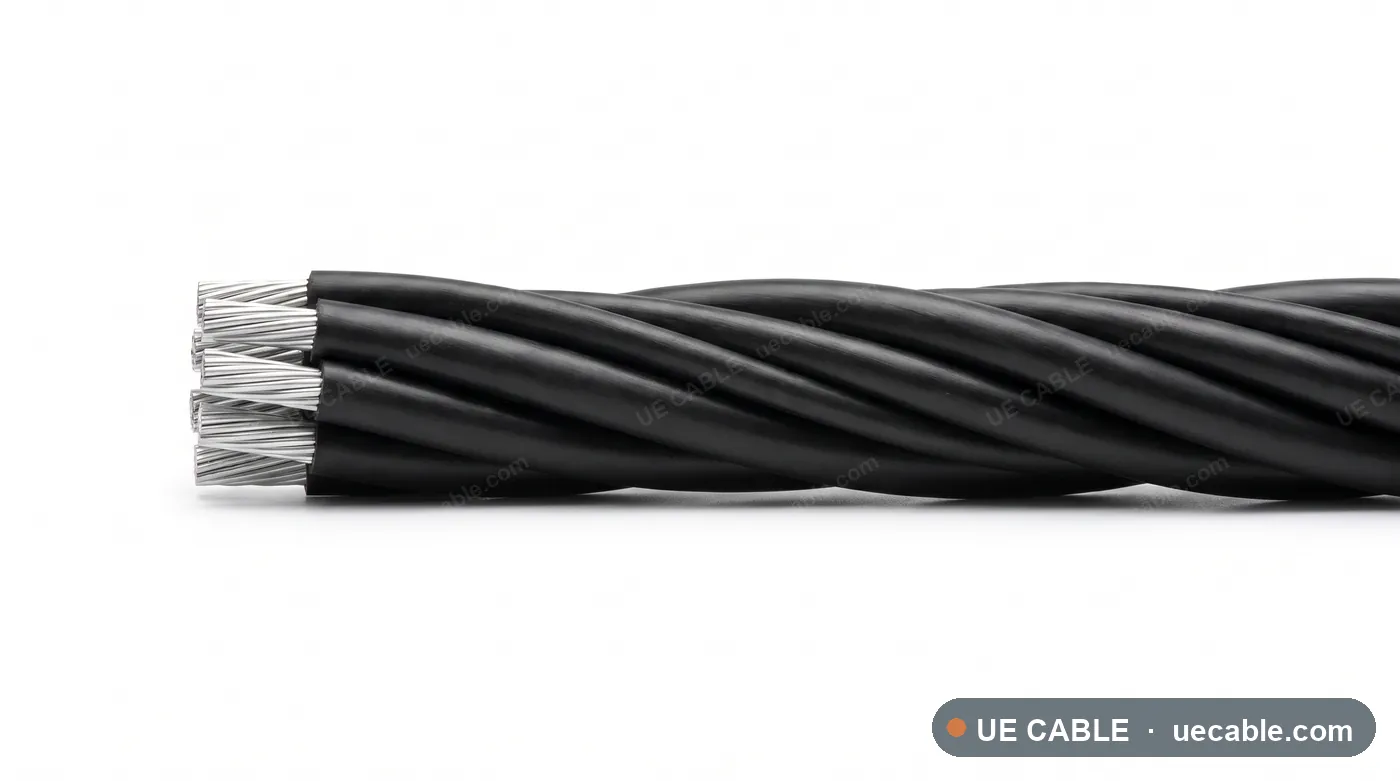

AS/NZS 3560 LV Aerial Bundled Cable cable construction reference

Australasian LV ABC

AS/NZS 3560 LV Aerial Bundled Cable

AS/NZS 3560 LV Aerial Bundled Cable is an aerial bundled cable construction for utility lv networks, service drops, rural lines, using aluminium phase conductors, uv stabilised xlpe insulation with rib identification, insulated aluminium neutral messenger and black uv resistant xlpe surface.

Standard
AS/NZS 3560 Part 1
Voltage class
0.6/1 kV
Conductor
16 mm² aluminium, 25 mm² aluminium, 35 mm² aluminium, 50 mm² aluminium, 70 mm² aluminium, 95 mm² aluminium, 120 mm² aluminium
Insulation / jacket
Black UV resistant XLPE surface
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

AS/NZS 3560 LV Aerial Bundled Cable is an aerial bundled cable construction for utility lv networks, service drops, rural lines, using aluminium phase conductors, uv stabilised xlpe insulation with rib identification, insulated aluminium neutral messenger and black uv resistant xlpe surface.

  • Utility LV networks
  • Service drops
  • Rural lines
  • Street lighting circuits

Cable Construction

  • Class 2 stranded aluminium phase conductor
  • UV stabilised XLPE insulation with rib identification
  • Insulated aluminium neutral messenger
  • Self-supporting bundled construction
  • Black UV resistant XLPE surface
  • Low-voltage distribution networks and service drops

Specifications

Select a cable size.

Each row below is a complete specification sheet — 14 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

Aluminium phase conductor bundle

Each row is an exact aerial bundled cable cable specification sheet. Shared standard, voltage family, insulation, messenger and route data are listed above.

  • Voltage class0.6/1 kV
  • InsulationUV stabilised XLPE insulation with rib identification
  • Screen / supportSelf-supporting bundled construction
Cable referenceBundle layoutPhase conductorNeutral / messengerMax DC resistance at 20 °CBundle OD guideWeight guide
AS/NZS 3560 LV ABC 0.6/1 kV 2 core LV ABC 16 mm² 25 mm² insulated aluminium neutral2 core LV ABC16 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.91 Ω/km21 mm0.50 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 2 core LV ABC 25 mm² 25 mm² insulated aluminium neutral2 core LV ABC25 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.20 Ω/km22 mm0.58 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 2 core LV ABC 35 mm² 25 mm² insulated aluminium neutral2 core LV ABC35 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral0.868 Ω/km24 mm0.68 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 2 core LV ABC 50 mm² 50 mm² insulated aluminium neutral2 core LV ABC50 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.641 Ω/km25 mm0.89 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 2 core LV ABC 70 mm² 50 mm² insulated aluminium neutral2 core LV ABC70 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.443 Ω/km27 mm1.07 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 2 core LV ABC 95 mm² 70 mm² insulated aluminium neutral2 core LV ABC95 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.320 Ω/km29 mm1.36 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 2 core LV ABC 120 mm² 70 mm² insulated aluminium neutral2 core LV ABC120 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.253 Ω/km30 mm1.58 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 4 core LV ABC 16 mm² 25 mm² insulated aluminium neutral4 core LV ABC16 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.91 Ω/km22 mm0.75 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 4 core LV ABC 25 mm² 25 mm² insulated aluminium neutral4 core LV ABC25 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral1.20 Ω/km24 mm0.91 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 4 core LV ABC 35 mm² 25 mm² insulated aluminium neutral4 core LV ABC35 mm² stranded aluminium phase conductor25 mm² insulated aluminium neutral0.868 Ω/km25 mm1.09 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 4 core LV ABC 50 mm² 50 mm² insulated aluminium neutral4 core LV ABC50 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.641 Ω/km26 mm1.44 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 4 core LV ABC 70 mm² 50 mm² insulated aluminium neutral4 core LV ABC70 mm² stranded aluminium phase conductor50 mm² insulated aluminium neutral0.443 Ω/km28 mm1.80 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 4 core LV ABC 95 mm² 70 mm² insulated aluminium neutral4 core LV ABC95 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.320 Ω/km30 mm2.31 kg/m
AS/NZS 3560 LV ABC 0.6/1 kV 4 core LV ABC 120 mm² 70 mm² insulated aluminium neutral4 core LV ABC120 mm² stranded aluminium phase conductor70 mm² insulated aluminium neutral0.253 Ω/km32 mm2.76 kg/m
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
