WTTC Wind Turbine Tray Cable cable construction reference

Wind turbine tray cable

WTTC Wind Turbine Tray Cable

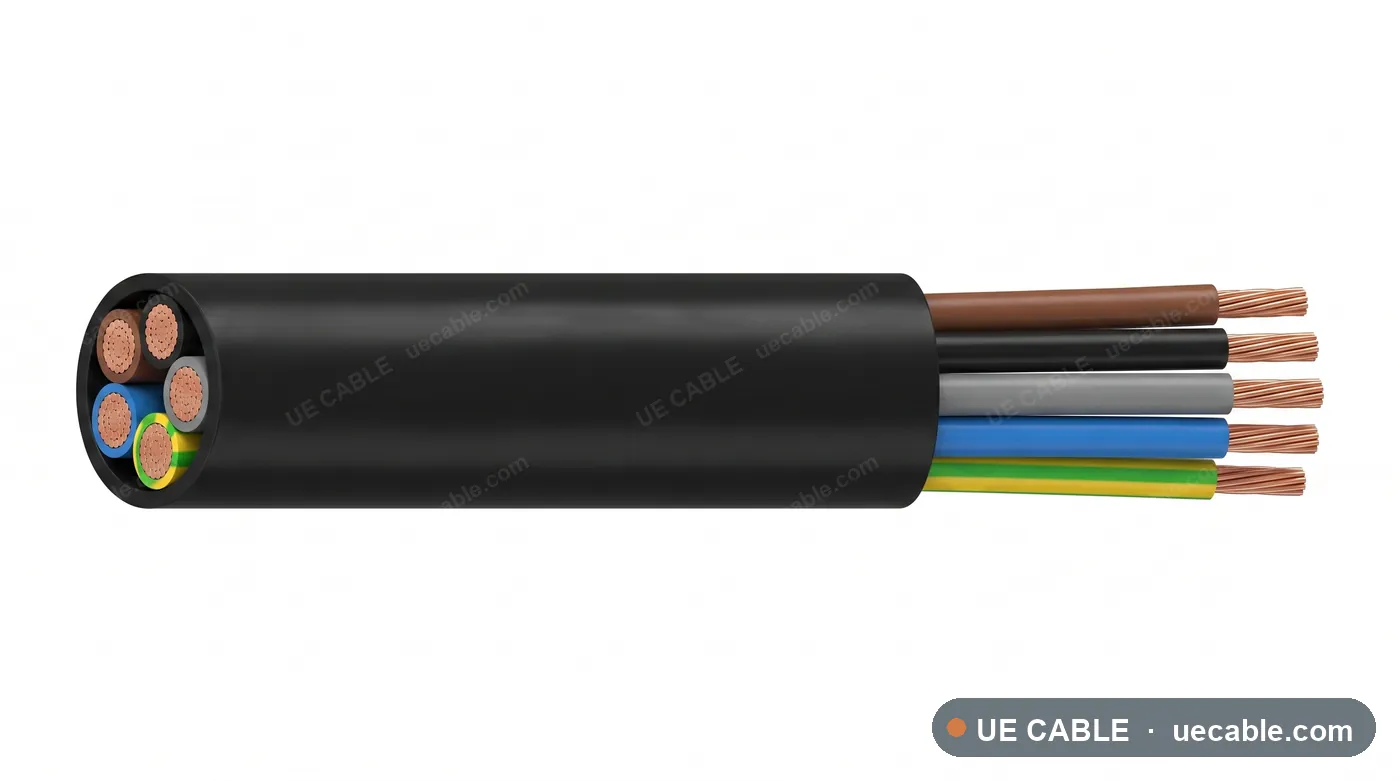

WTTC Wind Turbine Tray Cable is a tray cable construction for wind turbines, nacelle wiring, tower tray routes, using fine stranded bare copper conductor, pvc nylon or tpe insulation and oil, sunlight and torsion resistant tray jacket.

Standard
UL WTTC / TC-ER reference
Voltage class
600 V / 1000 V
Temperature class
90 °C to 105 °C guide
Conductor
Fine stranded bare copper conductor
Insulation / jacket
Oil, sunlight and torsion resistant tray jacket
Download PDF ↓ Request Quote →

Cable Type Data

Construction and applications.

Applications

WTTC Wind Turbine Tray Cable is a tray cable construction for wind turbines, nacelle wiring, tower tray routes, using fine stranded bare copper conductor, pvc nylon or tpe insulation and oil, sunlight and torsion resistant tray jacket.

  • Wind turbines
  • Nacelle wiring
  • Tower tray routes
  • Drip loops

Cable Construction

  • Fine stranded bare copper conductor
  • PVC nylon or TPE insulation
  • Oil, sunlight and torsion resistant tray jacket

Specifications

Select a cable size.

Each row below is a complete specification sheet — 15 sizes in total. Click any row to open conductor data, resistance, dimensions, weight and ordering reference.

WTTC wind turbine tray cable references

Each row is an exact tray cable cable specification sheet. Shared UL/CSA rating, jacket and installation data are listed above.

  • Tray cable dutyWind turbine tray cable
  • Circuit typeWind turbine tray
  • Voltage class600 V / 1000 V
Cable referenceCore / pair designConductor sizeMax DC resistance at 20 °COD guide
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 4 core 16 AWG / 1.31 mm²4 core16 AWG / 1.31 mm²14.1 Ω/km13.0 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 4 core 14 AWG / 2.08 mm²4 core14 AWG / 2.08 mm²8.89 Ω/km13.6 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 4 core 12 AWG / 3.31 mm²4 core12 AWG / 3.31 mm²5.59 Ω/km14.2 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 4 core 10 AWG / 5.26 mm²4 core10 AWG / 5.26 mm²3.52 Ω/km15.0 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 4 core 8 AWG / 8.37 mm²4 core8 AWG / 8.37 mm²2.21 Ω/km16.0 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 5 core 16 AWG / 1.31 mm²5 core16 AWG / 1.31 mm²14.1 Ω/km13.5 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 5 core 14 AWG / 2.08 mm²5 core14 AWG / 2.08 mm²8.89 Ω/km14.0 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 5 core 12 AWG / 3.31 mm²5 core12 AWG / 3.31 mm²5.59 Ω/km14.6 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 5 core 10 AWG / 5.26 mm²5 core10 AWG / 5.26 mm²3.52 Ω/km15.4 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 5 core 8 AWG / 8.37 mm²5 core8 AWG / 8.37 mm²2.21 Ω/km16.4 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 7 core 16 AWG / 1.31 mm²7 core16 AWG / 1.31 mm²14.1 Ω/km14.2 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 7 core 14 AWG / 2.08 mm²7 core14 AWG / 2.08 mm²8.89 Ω/km14.7 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 7 core 12 AWG / 3.31 mm²7 core12 AWG / 3.31 mm²5.59 Ω/km15.3 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 7 core 10 AWG / 5.26 mm²7 core10 AWG / 5.26 mm²3.52 Ω/km16.1 mm
WTTC 600 V / 1000 V Wind turbine tray cable Wind turbine tray 7 core 8 AWG / 8.37 mm²7 core8 AWG / 8.37 mm²2.21 Ω/km17.1 mm
Cable Specification Sheets Exact cable references by conductor size and construction.

Specification sheets include conductor material, size, resistance, diameter, weight, construction and quotation reference.

Request Quote →
